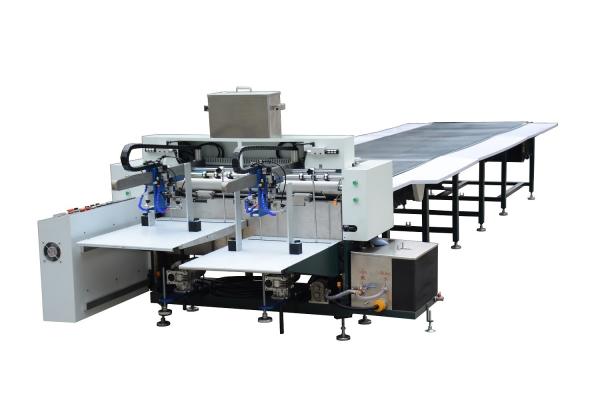

Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
Specifications
Brand Name :
WELLMARK
Model Number :
WM-850D
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set per 15 working days
Delivery Time :
5-8 workdays
Packaging Details :
wooden case
Product name :
Automatic folder gluer machine
After-sales service provided :
Field installation,commissioning and training
Type :
Gluing Machine
Automatic grade :
Semi-Automatic
Driven type :
Electric,Mechanical
Application :
Machinery & Hardware
Warranty :
1 Year
Power :
3.5KW
Description

Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine

Our Services

1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.

Technical Parameter

Model WM-850D
Width W80-800mm
Paper Thickness 80-200gsm
Working Speed 20-40pcs/Min
Power 12KW
Air Pressure 0.6-0.8MPa
Voltage 380V/50Hz
Weight 1600Kg
Machine Size 7800 * 1650 * 1300mm

Other Product Recommend

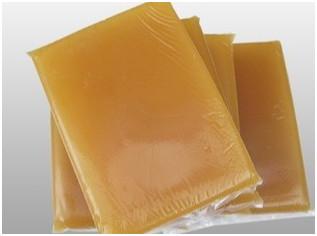

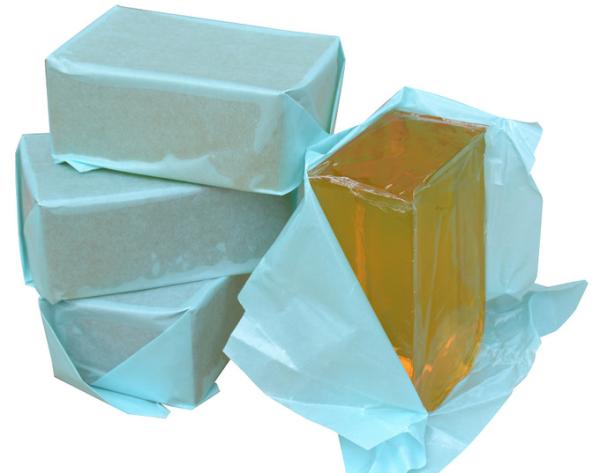

Hot Melt Glue for gluing machine

Product Features

1) Automatic sheet-fed front edge suction for various sheet sizes.
2) Adjustable rollers apply smooth glue coating on the sheet surface.
3) The circulating glue system with temperature controller assures.
4) Conveyor equipment with air-suction system to forward sheet flat and stably.
5) With ball bearing design of feed table, the sheets are conveyed.

Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use film to wrap machine.

3. We can handle shipping for customers too.

Automatic Gluing Machine / Semiautomatic Rigid Box Making Machine
