Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
Specifications
Brand Name :
Wellmark
Model Number :
WM-850A
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
T/T, L/C at sight
Supply Ability :
20 set per month
Delivery Time :
5-8 work day
Packaging Details :
Wood Case
Price :
Negotiable
names :
automatic folder gluer,manual gluing machine
Application :
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Driven Typ :
Electric
Voltage :
380V
Power :
7.5kw
Dimension(L*W*H) :
7800*1650*1300mm
Weight :
1200kg
Color :
Green and Grey
Usage :
Paper gluing
Feeding way :
Automaticly Continuesly Feeding
Speed :
7-40pcs/min
Warranty :
One Year
Description

Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box

Automatic Gluing Machine.pdf

Product Introduction

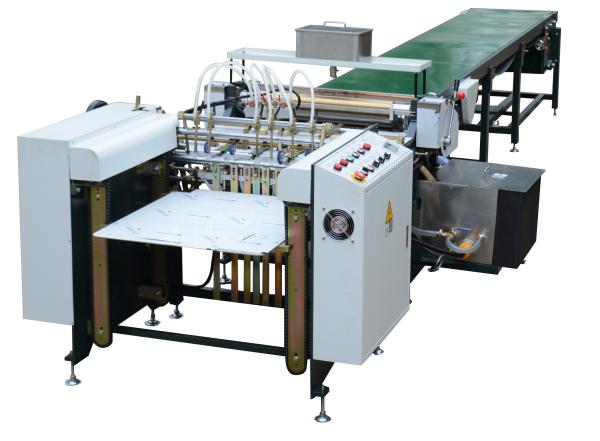

WM-850A Automatic Gluing Machine is used for gluing the cover papers with a 6 meters conveyer.It's automatically feeding and gluing with steady and high speed.The glue recycling system not only save the costs,but also protect the environment.

This machine has an indirect heating and temperature control system, which can be applied to the place where the working environment is low. The system models can be assembled into various forms of assembly line according to the needs of the product. This machine can be applied into folders, file boxes, clothing box, shoes box, hardcover and other products. This machine has high efficiency; adaptabolity, hot meltadhesive, glue, latex can be used. Variable speed, no wear, no deformation, feeding, high precision.

Other Product Recommend

Hot Animal Glue Use for Automatic Gluing Machine

Product Character

Automatic gluing machine (feeder) has the function of automatic feed paper and gluing, automatic temperature control and 24-hours timer.

The suction devices for the assembly lines prevent powder paper curling and bubbling.

Paper absorption and feed are applied, characteristic of steady and quick paper conveyance.

Hot melt adhesives (animal adhesives) are used for health and environmental protection on the basis of recycling to save costs at the speeds adjustable.

TECHICAL PARAMETERS

MODEL WM-850A
WIDTH W80-800MM
PAPER THICKNESS 80-200GSM
WORKING SPEED 7-40PCS/MIN
POWER 7.5KW
AIR PRESSURE 0.6-0.8MPa
VOLTAGE 380V/50HZ
MACHINE WEIGHT 1400KG
MACHINE SIZE 7800*1650*1300MM

Function and features
1. Manual feeder gluing machine is suitable for gluing the paper which is for making book cover, rigid box, set up box, etc.
2. It has the function of gluing, automatic temperature control and 24-hours timer.
3. The draft fan under the assembly lines prevents cover paper from curling and bubbling.
4. Feeder absorption and feed are applied, which contribute to the characteristic of steady and quick paper conveyance.
5. Hot melt adhesives (animal adhesives) are used for health and environmental protection, and they also save cost because of the recycle system and the adjustable speeds.
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

Packaging & Shipping

1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.

2. In order to be waterproof, we usually use film to wrap machine.

3. We can handle shipping for customers too.

Automatic Gluing Machine / Rigid Box Making Machine for Rigid Box
