Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Desktop Gluing Machine / Hot Gluing Machine
Specifications
Brand Name :
Wellmark
Model Number :
WM-500
Place of Origin :
China (Mainland)
MOQ :
1 SET
Payment Terms :
T/T, L/C at sight
Supply Ability :
30 set per month
Delivery Time :
5-8 work day
Packaging Details :
Wood Case
Price :
Negotiable
Type :
Gluing Machine
Condition :
New
Application :
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type :
Case
Packaging Material :
Wood
Automatic Grade :
Semi-Automatic
Driven Typ :
Electric
Voltage :
220V
Power :
100w
Weight :
40kg
After-sales Service Provided :
Engineers available to service machinery overseas
Product name :
manual Gluing Machine
Color :
Grey
Usage :
Paper gluing
Feeding way :
manual Feeding
Speed :
1-20pcs/min
Warranty :
One Year
Description

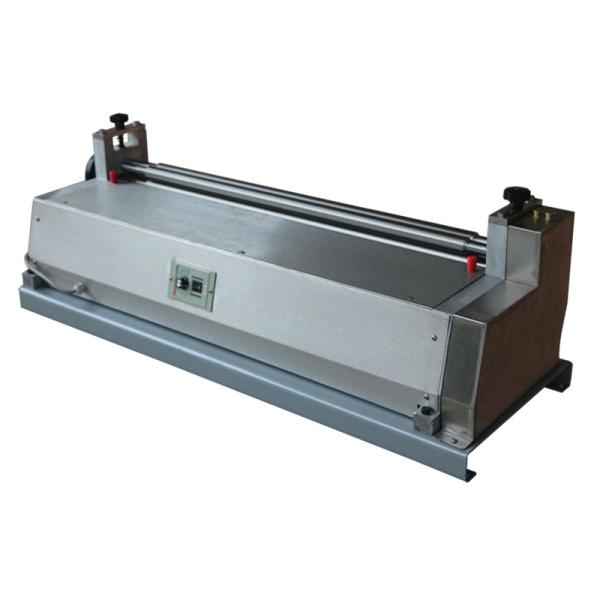

Desktop Gluing Machine / Hot Gluing Machine​

Product Description

Gluing Machine stainless steel desktop speed control glue machine is the printing and packaging industry, the paper on the special equipment, the machine uses a large number of stainless steel components, aluminum alloy components, greatly improving the corrosion resistance of the device, the machine uses advanced speed motor To meet the needs of a variety of paper on the plastic, the machine beautiful appearance, simple structure, smooth transmission, easy maintenance.


Product Composition

1. Glue basin loading and unloading handle
2. Rubber roller
3. Pressure roller
4. Platen roller adjustment handle
5. Protective cover
6. Motor speed knob
7 Glue tray
8. Bracket
9. Manual handle and other components

Product Application

WM-700 is under side gluing machine, it is adopt stainless steel, effective anti - glue corrosion. It is mainly used for the gluing of different thickness of paper, paperboard, Special paper, leather, EVA, Nonwoven fabric, Oxford cloth,Etc. Paper box, carton box, Corrugated box, Leather case, note book making, EVA puzzle, Instead of manual gluing, improve

the efficiency of work.The gluing machine is the special equipment or paper products to do gluing, which is widely used in printing and packaging, paper box, carton, book cover making and Fabric sample volume producing industry.

Technical Parameters

Model Unit WM-500A WM-700A WM-1000A
Gluing side Under Side Under Side Under Side
Max.gluing width mm 500 700 1000
Min.gluing thickness g/m 0-300 0-300 0-300
Paper thickness g 40-3000 40-3000 40-3000
Materials thickness mm 0.1-10 0.1-10 0.1-10
Speed m/min 28 28 28
Motor Power w/v/hz 120w 220v 60Hz 120w 220v 60Hz 370w 220v 60Hz
Dimension mm 800*450*400 1030*450*400 1350*450*400
Package Dimension mm 860*390*430 1060*390*430 1360*390*510
Net Weight kg 50 60 80
Gross Weight kg 55 65 85
Glue choice White latex(Polyethylene glue)
Paper Feed By hand
Cleaning way By hand
Automatic degree Semi-automatic

Our Services

1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
