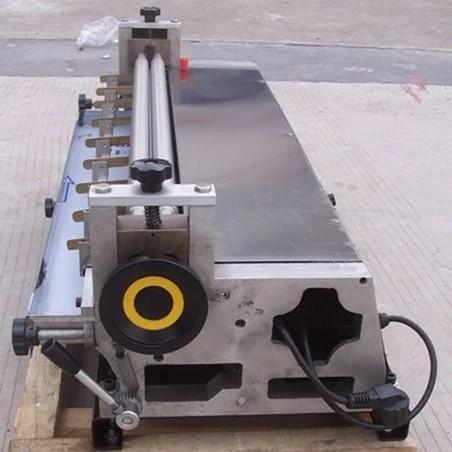

Desktop Gluing Machine / Manual Gluing Machine Used for Gluing the Cover Papers

1.1 Installation:
The machine must be placed on the level of the face, not a serious tilt phenomenon, otherwise, will make the glue to the end of the accumulation of glue out of the water tray
1.2 test machine:
(200V / 50Hz) Turn on the power switch (the switch and the motor knob are in the same way) when the handle is turned manually (clockwise) A motor board, the motor speed control knob, the machine began to slow to fast rotation.

1.3 Adjustment:
A. The thickness of the adhesive layer adjustment: at the same time rotating rubber layer thickness adjustment handle (the handle left and right each one), so that with a rubber roller before and after the move, and the gap between the roll changes,
Satisfied thickness of the adhesive layer. Then, tighten the screw on the screw can be. Adhesive thickness adjustment range of 0.03 ~ 0.10MM.
B. Adjustment of the platen roller: Loosen the star handle on the handle (the left and right) of the platen roller to rotate the nut under it, and move the platen roller up and down. Which brought out the paper gap, pay attention: This gap should be at least greater than the above mentioned thickness of the adhesive layer. Otherwise it will make the paper roll with glue.
1.4. Disassembly of plastic disk:
The plastic frame structure for the parallelogram mechanism, simply press the counterclockwise direction gently pull the tray handle to the next limit can be removed, remove the plastic plate, let go, the frame will automatically reset, heavy Repeat the above procedures, can be installed on the plastic.

Maintenance and repair

1. When using the motor speed control knob, only slowly rotate until you are satisfied with the speed.
2. When the tray tray is reset, it must hold the glue tray to handle the handle and let it slowly reset.
3. The relative movement point must always add lubricating oil.
4. After each class, you must clean the machine residual glue to prevent corrosion of parts
