35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
Specifications
Brand Name :
Gardner Danver
Model Number :
PZ-8
Certification :
API 7k
Place of Origin :
China
MOQ :
1 EA
Price :
190-280 USD Per EA
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000 EA/Month
Delivery Time :
25-30 Work Days
Packaging Details :
Wooden Carton
Product Name :
Mud Pump Spare Parts Pony Rod
Type :
Clamp Type
Material :
35CrMo
Processing :
Forged
Condition :
New
Application :
Drilling mud pump
Useage :
Fluid end parts
Surface :
Chrome plated
Description

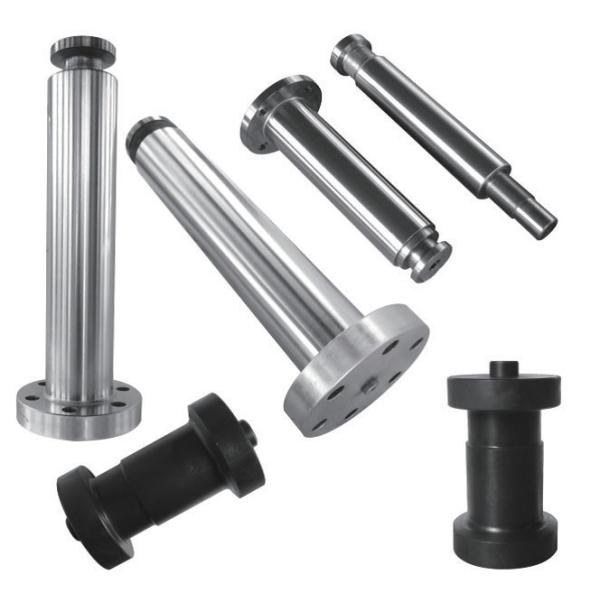

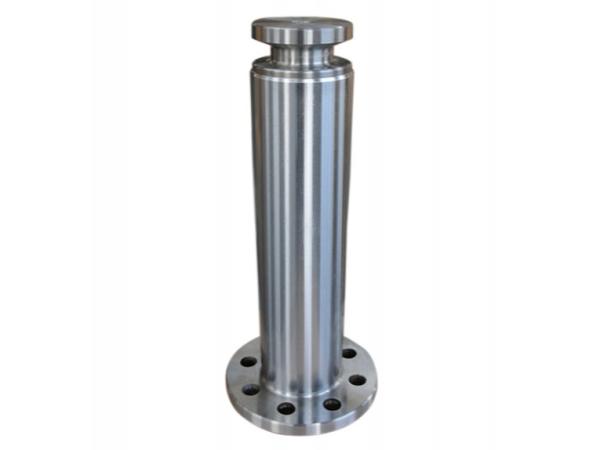

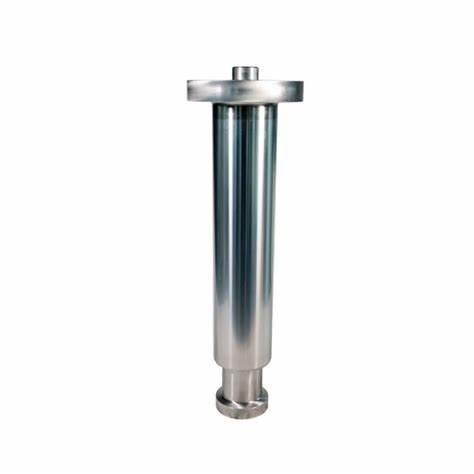

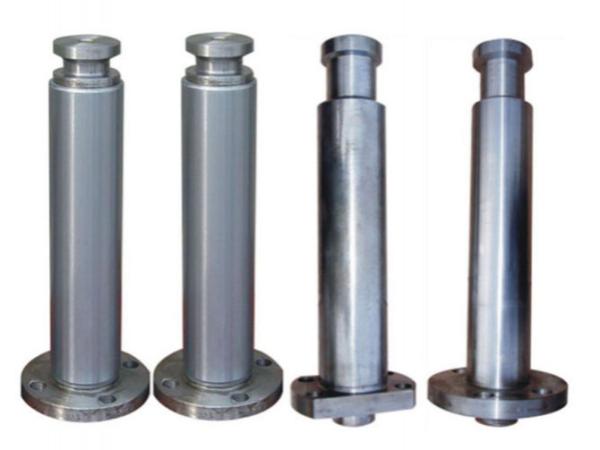

Mud Pump Spare Parts Extension Rod

The Extension Rod For Mud Pump is one of the important parts of the power end. Its function is to transfer the power to the hydraulic end.

The extension rod material is 35CrMo. The surface is chrome plated, and smooth after finishing grinding, which greatly improves the wear resistance and corrosion resistance. The extension rod,The middle pull rod, also called the intermediate rod, is an important part of connecting the crosshead and the piston rod, is the key part of connecting the mud pump power end and the hydraulic end. One end is connected to the crosshead, and the other end is connected to the piston rod through a clamp.It has a stuffing box assembly on its outer surface.In the reciprocating movement, the outer circle of the middle pull rod and the seal in the packing box rub with each other, in order to ensure the wear resistance, the outer surface of the middle pull rod is plated with hard chromium. Other names are Extension drill steel, Extension drill rod, and Extension steel, M/F rod(Speed rod).

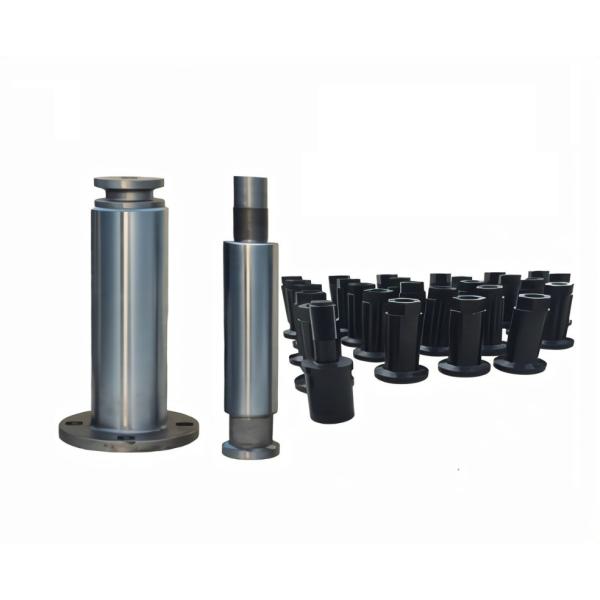

35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type
Mud Pump Spare Parts are available for these popular pump models:


BOMCO/Emsco Mud Pumps:F2200, F2200HL, F-1300, F-1600, F1600HL, FB1300, FB1600, F-800, F-1000, F-500
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200

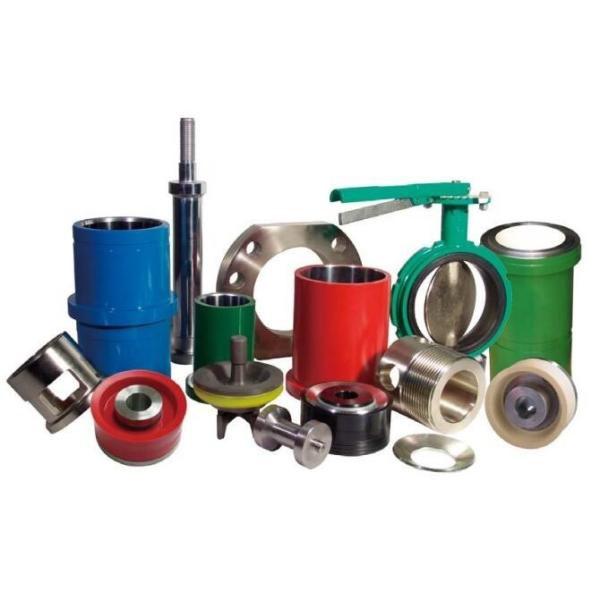

Other Mud pump spare parts:

35CrMo Crosshead Extension Rod PZ-8 Mud Pump Pony Rod Clamp Type

National Drilling mud pump spare parts

PARTNO. DESCRIPTION PARTNO. DESCRIPTION
1291280 Discharge Module, Studded 1291085 Piston Rod Clamp
1290338 Suction Module, Studded 1291090 Crosshead,R.H.& Center
1290174 Seal Retainer 1291165 Liner Bushing
1290175 Back Up Ring 1291166 Liner Clamp
1290178 Wedge Adjusting Screw 1291182 Intermediate Rod Wiper Seal
1290181 Wedge Retaining Spring 1291190 Liner Spray Manifold
1290307 Valve Cover 1291194 Intermediate Rod Baffle
1290308 Threaded Ring 1291276 Sub Rod
1290315 Wedge Adjusting Screw Washer 1291277 Piston Rod
1290342 Discharge Connector 1291286 Discharge Spacer,Studded
1290343 Discharge Connector Adapter 1292140 alve Guide Holder
1290344 Suction Module & Wear Plate Seal 1292141 alve Guide Insert
1290345 Discharge Spacer Seal 1540126 Valve Cover Gasket
1290357 Wear Plate 1590051 Suction Manifold Seal
1291015 Crossheadi,R.H.& Center 2410031-348 Rectangular Packing
1291017 Crosshead Liner 2410031-427 Rectangular Packing
1291028 Crosshead Pin 6908033 Ring Joint Gasket
