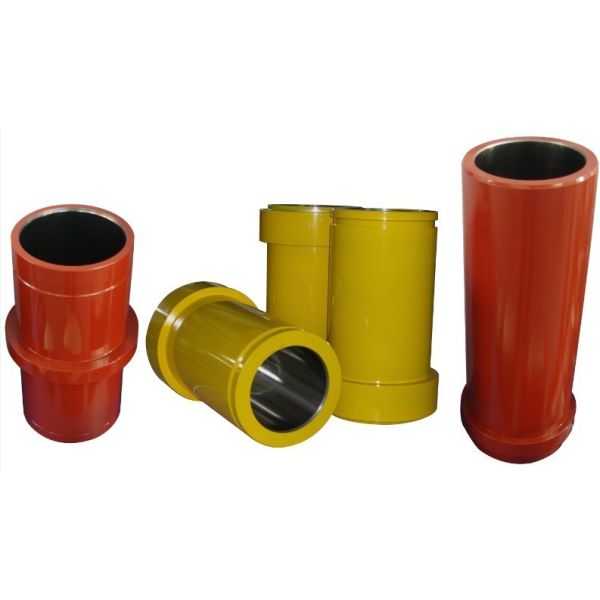

Bomco/Gardner Denver/Ideco Mud Pump Spare Part Cylinder Bimetal Liner 6"

Topland supply mud pump spare parts like mud pump liner including zirconia ceramic liner and high chrome bimetallic liner, Mono-metal Liner, fluid end module, valve and seats, piston, piston rod, pony rod etc. parts for mud pump, we can also customize and machine as your drawing.

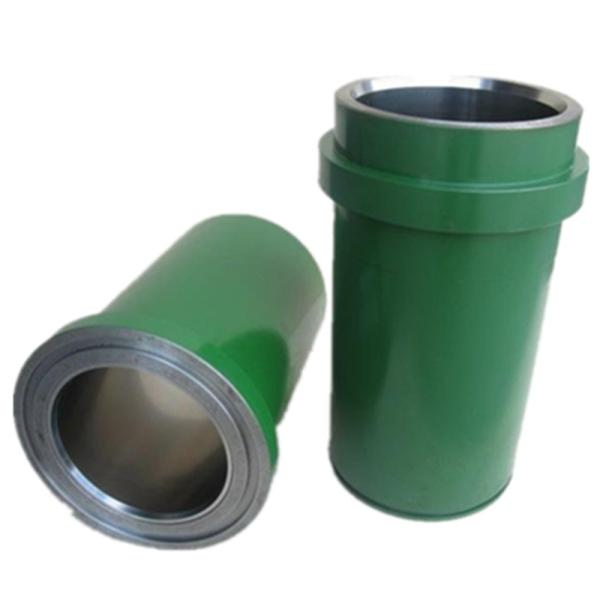

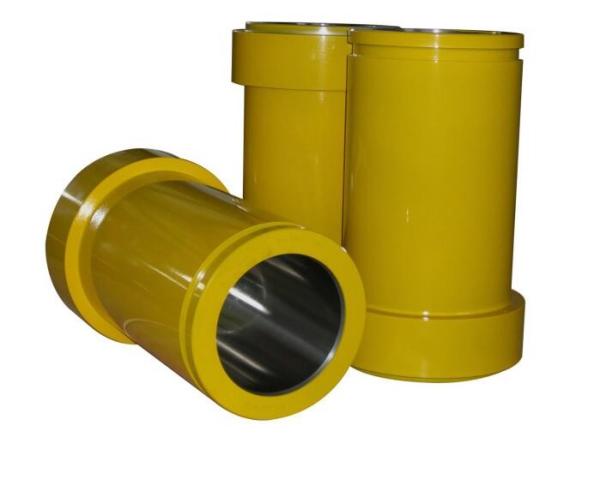

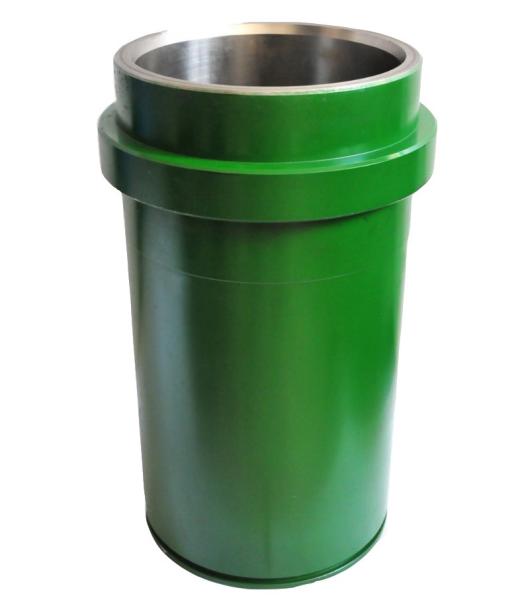

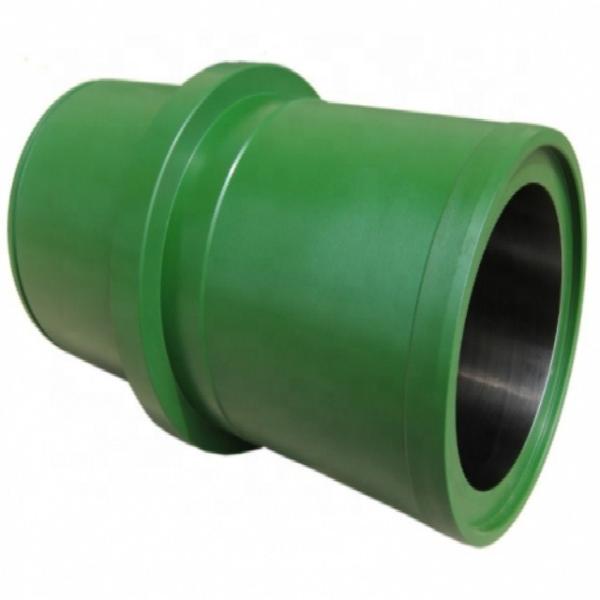

Mud Pump Spare Part -Mud pump liner:

1. Strictly manufactured according to API-7K Standard and passed the ISO9001-2000 international quality system authentication.

2. Reached the requirement of OEM products quality, and replace the OEM products in the same industry.

High Chrome Sleeve Liner The outer hull, or body, of the liner is a high strength forging. Premium uses forgings exclusively to ensure the consistent quality. The sleeve is centrifugally cast in the Premium facilities by skilled craftsmen. It has the maximum amount of chrome for the base metal and Premium adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness that exceeds its counterparts. The liner is rated to match the pressure rating of the pump per liner size. -Rated for all drilling operations up to 5,000 PSI and 7500 PSI -Bore hardness is 62 - 69 Rockwell -Plip design to prevent inner sleeve slippage -Extremely long service life

We provide the following Mud Pump Liners and much more:

EMSCO: F-500, F-800, F-1000, F1300, F1600, FB-1300, FB-1600,D-375, D-700;

GARDNER DENVER: PZ-7, PZ-8, PZ-9, PZ-10, PZ-11;

IDECO: T–500, T–800, T–1000, T–1300, T–1600

NATIONAI: 7P–50, 8P–80, 9P–100, 10P-130, 12P–160, K-700, K-700A, K-500, K-500A,

OILWELL: A–350PT, A–560PT, A–600PT, A–850PT, A–1100PT, A–1400PT, A–1700PT

OMEGA: Opi1000; LS: 3NB-800, 3NB-1000, 3NB-1300, 3NB1300C, 3NB-1300C;

QZ: Sl3NB-1300, Sl3NB-1300A, Sl3NB-1300B, Sl3NB-1600.
