Specifications
Brand Name :
Topland
Model Number :
Hose Loop
Certification :
API 16C
Place of Origin :
China
MOQ :
1
Price :
350-500 USD Per SET
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1500 Set/Month
Delivery Time :
10 Work days
Packaging Details :
Wooden BOX
Product Name :
Chiksan Pipe Pup Joint Annular Manifold
Size :
1-5 inch
Process :
Forging
Working pressure :
42 Mpa ~ 105 Mpa
Machine Type :
Wellhead Equipment Tool
Connection :
Swivel joint, hammer union
Material :
Carbon steel,stainless steel
Working Medium :
Oil,natural gas and gas containing H2S,CO2
Condition :
New
Buckle Model :
Fig 602, 1002, 1502
Description

Wellhead Equipment Chiksan Pipe Pup Joint Annular Manifold Sweep Hose Loop

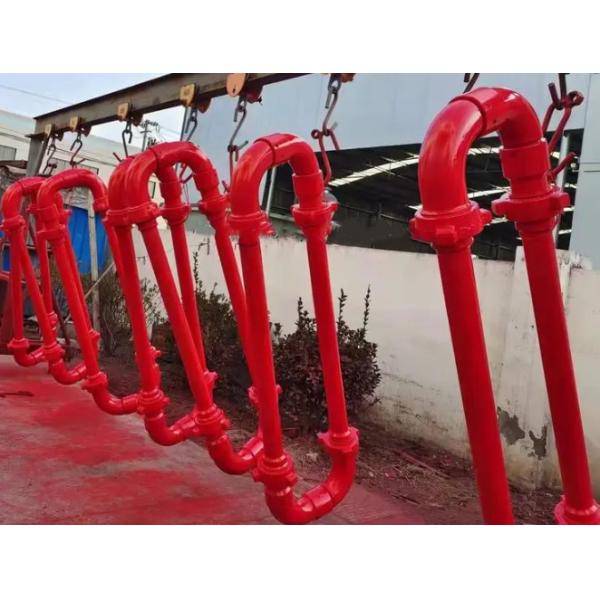

Hose Loop Descritiopn

The hose loop is used in oil field cementing, acid fracturing, etc;
The hose loop is assembled by swivel joint, hammer union and pup joint, can be swiveled in three directions flexibly;

The hose loop can be used in discharge pup joint, transportation pup joint, well testing pup join, well cementing pup joint, and transportation liquid flow under high pressure environment;
The hose loop can be matched with many kinds of swivel joints;

The hose loop has specifications of 2in, 3in, 4in and is adaptive to working under 42MPa(6000psi), 70MPa (10000psi), 105MPa(15000psi);
Hummer union can be connected or disconnected with pup joint. The disconnection is suitable for low pressure pup joint and connection is suitable for high pressure pup joint;
We are able to supply hose loop in each specification, pressure, length (according to expanded size) according to users’ needs.

Technical Specification:

Specification Name

Cold working

press

 Terminal connection type Buckle model
Tr100×12 Thread sealing hose loops
Integral hose loops
H2S proof hose loops		 42MPa Tr100×12 Metric system
Tr99×12.7 42MPa Tr99×12.7 British system
2"×42 42MPa 3.8125-3Stub Acme-2G FIG602
2"×70 70MPa 3.8125-3Stub Acme-2G FIG1002
2"×105 105MPa 4.125-3-Acme-2G FIG1502
3"×42 42MPa 5.375-3Stub Acme-2G FIG602
3"×70 70MPa 5.375-4-Acme-2G FIG1002
3"×105 105MPa 5.375-3.5-Acme-2G FIG1502
4"×42 42MPa 6.25-3Stub Acme-2G FIG602
4"×70 70MPa 6.25-4-Acme-2G FIG1002
Remark:How to place an order:Integral hose loop-3"×105 -8’ (according to expanded size)
According to users’ drawing

Wellhead Equipment Chiksan Pipe Pup Joint Annular Manifold Sweep Hose Loop

2. Design Features of Hose Loop
1) The swivel joint attached to hose loop is characterized by flexibility, impact resistance, vibration resistance, big rate of flow, etc.
2) The hose loop has fine sealing performance;
3) The hose loop is connected by union, which is simple to assemble and disassemble, crush resistance, and high sealing performance. It has the advantages of easy foldability, convenient transportation and storage;
4) We are supplying H2S proof hose loop under acid environment;

5) The thread joint conforms to international specifications and can be exchanged to like products internationally.
