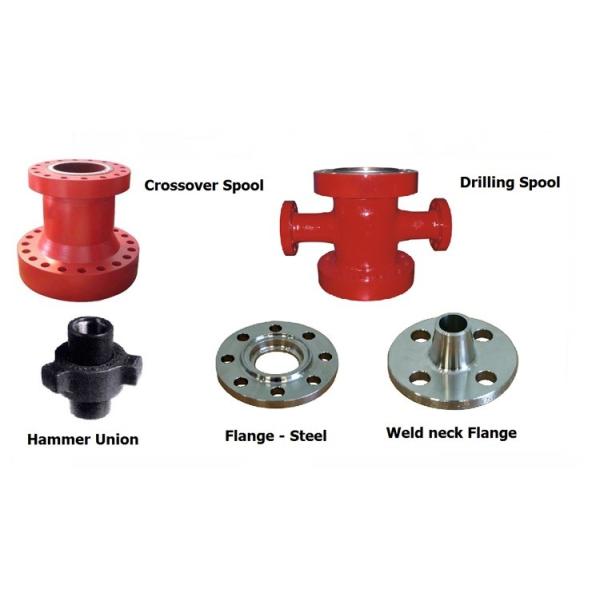

Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
Specifications
Brand Name :
Wellhead
Model Number :
Spacer spools
Certification :
API-6A
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 Ea/Month
Delivery Time :
25-30 Work Days
Packaging Details :
Wooden Carton
Product Name :
Drilling adapters flange spacer spool
Keywords :
Spacer Spool
Material :
Alloy steel
Processing :
Forged
Size :
1-13/16" ~ 30"
Application :
Wellhead Adapter Spool
Pressure :
10000PSI
Level :
PSL1-PSL3
Connection :
Flange
Color :
Red
Description

Drilling Rig spare parts API 6A 10000 PSI Spacer spools or Riser flange

Description of Spacer Spool

Spacer Spools in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill and

Production Manifold applications. Spacer Spools usually have the same nominal end connections. Spacer Spool

identification consists of naming each end connection and the overall length. NOV SARA Spacer Spools usually do not

have outlets, but customers may specify outlets.


We supply the spacer spool in all sizes and pressure ratings suitable for Well Head extension, B.O.P. spacing, and Choke, Kill, and Production Manifold applications. spacer spool usually has the same nominal end connections. spacer spool identification consists of naming each end connection and the overall length (outside of end connection face to outside of end connection face).

Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange

Featurers of Drilling Adapters Flange Spacer Spool

  • Body: in-line or angle.
  • End connections: flanged, threaded or weld end.
  • Connections: 1”, 2”,3” from ANSI 150# up to API 5000.
  • Trim in stainless steel, hard facing or tungsten carbide.
  • Profiled trim to provide linear characteristics.
  • Adjusting handle to provide continuous control.
  • Indicator barrel shows valve setting in 1/64”.
  • Valves can be automated with electric or pneumatic actuators.
  • Custom engineered microspline trims provide control below Cv+0.01 and maybe interchanged in standard bodies.

Product range

Rated Working Pressure 10000PSI
Rated Working Temperature -46Deg.-121Deg.
Working Medium Oil, gas, mud and water
Standard API 6A
Product Specification Level PSL1-3
Performance Requirement Level PR1, PR2

Specification of Drilling Adapters Flange Spacer Spool

Description L (mm)
3 1/8" X 5M To 3 1/8" X 5M 1092
4 1/16" X 5M To 4 1/16" X 5M 275
4 1/16" X 10M To 4 1/16" X 10M 1588
4 1/16" X 15M To 4 1/16" X 15M 614
5 1/8" X 5M To 5 1/8" X 5M 287
7 1/16" X 5M To 7 1/16" X 5M 700
9" X 5M To 9" X 5M 5200
11" X 5M To 11" X 5M 3048
13 5/8" X 3M To 13 5/8" X 3M 3048
13 5/8" X 5M To 13 5/8" X 5M 635
13 5/8" X 10M To 13 5/8" X 10M 650
21 1/4" X 2M To 21 1/4" X 2M 1400
26 3/4" X 3M To 26 3/4" X 3M 2440

Alloy Steel Drilling Rig Spare Parts API 6A 10000 PSI Spacer Spools Or Riser Flange
