Specifications
Brand Name :
Topland
Model Number :
12A-2
Certification :
ISO
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiatable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
15000 Set/Month
Delivery Time :
15 Work days
Packaging Details :
Wooden BOX
Product Name :
Transmission Chains
Type :
Roller Chain
Pitch :
19.05mm
Material :
Alloy Steel
Tensile Strength :
17.5kN
Heat treatment :
Quenching / Tempering
Surface Treatment :
Nickel-Plating,Zinc-Plating,Black treatment
Port :
ShangHai
Description

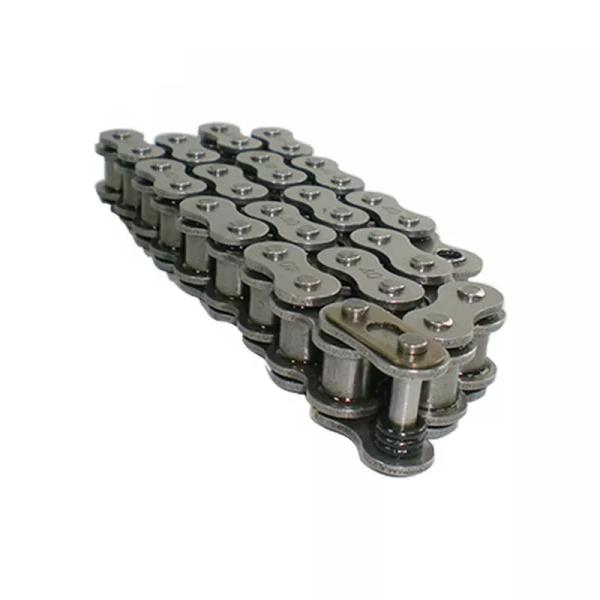

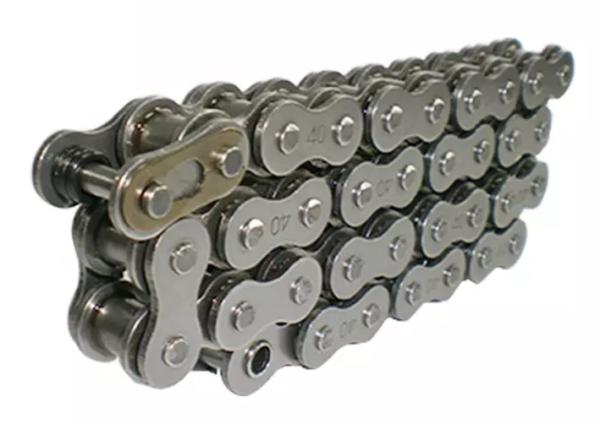

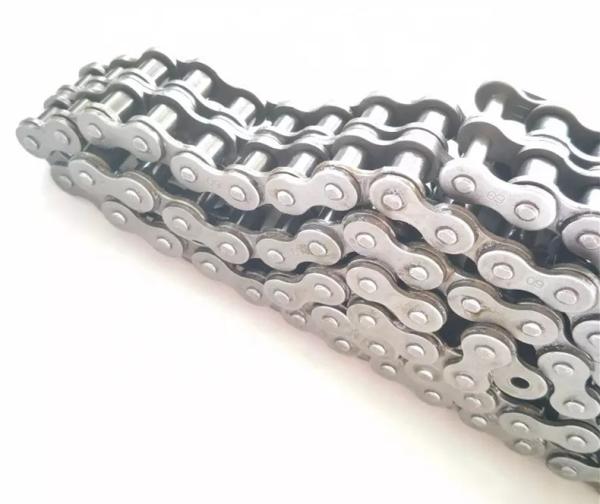

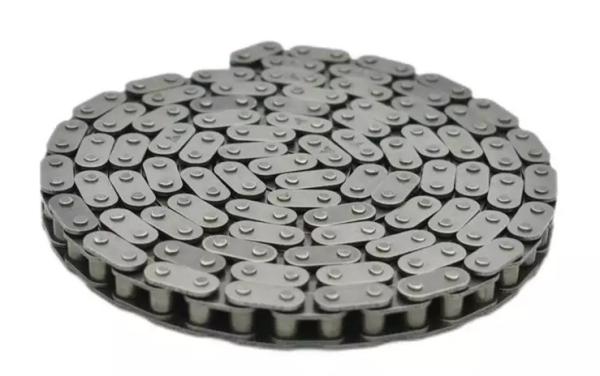

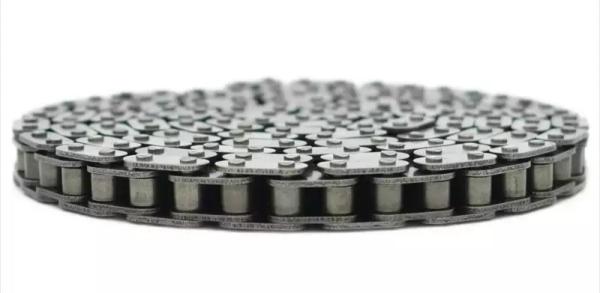

12A-2 Transmission Roller Chains Drilling Rig Spares Double Stand Roller Chain

Oilfield Drilling Rig Spare Parts Transmission chains

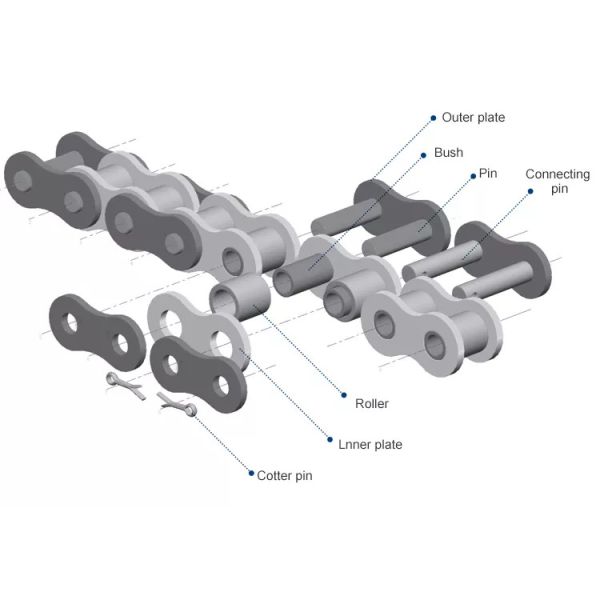

The products are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Assembled precision by Internal hole position, spin riveted by pressure to ensure the performance of the entire chain.

ISO Chain No ANSI
Chiain No

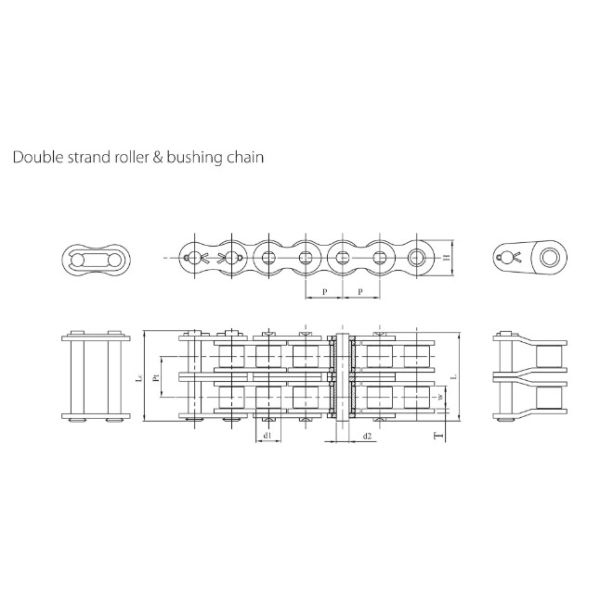

Chain No Pitch Roller Link Width Roller Outer Diameter Pin Outer Diameter Pin length Link Plate Height Link Plate Thickness Minimum Tensile Strength Average Tensile Strength Allowed load Transverse
Pitch Of
Strand
p W
min
d1(max) d2(max) L
max
Lc
max
H
max
T min max Pt
mm mm mm mm mm mm mm mm kgf kgf kgf mm
04C-2 25-2 25-2 6.35 3.10 3.30 2.31 14.5 15.20 6.02 0.75 720 860 110 6.40
06C-2 35-2 35-2 9.525 4.68 5.08 3.60 22.80 23.70 9.05 1.15 1620 2200 370 10.13
08A-2 40-2 40-2 12.70 7.85 7.92 3.98 32.30 36.20 12.07 1.50 2840 3900 630 14.38
10A-2 50-2 50-2 15.875 9.40 10.16 5.09 39.90 44.0 15.09 2.0 4450 6200 1100 18.11
12A-2 60-2 60-2 19.05 12.57 11.91 5.96 49.80 54.40 18.10 2.35 6400 8400 1530 22.78
16A-2 80-2 80-2 25.40 15.75 15.88 7.94 62.70 68.10 24.13 3.20 11360 15000 2550 29.29
20A-2 100-2 100-2 31.75 18.90 19.05 9.54 77.0 83.10 30.17 4.0 17760 24200 3900 35.76
24A-2 120-2 120-2 38.10 25.22 22.23 11.11 96.30 102.9 36.20 4.70 25540 32000 5250 45.44
28A-2 140-2 140-2 44.45 25.22 25.40 12.71 103.60 111.0 42.23 5.50 34760 42000 6970 48.87
32A-2 160-2 160-2 50.80 31.55 28.58 14.29 124.20 132.10 48.26 6.40 45600 60000 9150 58.55
40A-2 200-2 200-2 63.50 37.85 39.68 19.85 151.90 162.10 60.33 8.0 70920 92000 12400 71.55
48A-2 240-2 240-2 76.20 47.35 47.63 23.81 183.40 193.90 72.39 9.50 106220 135000 17150 87.83

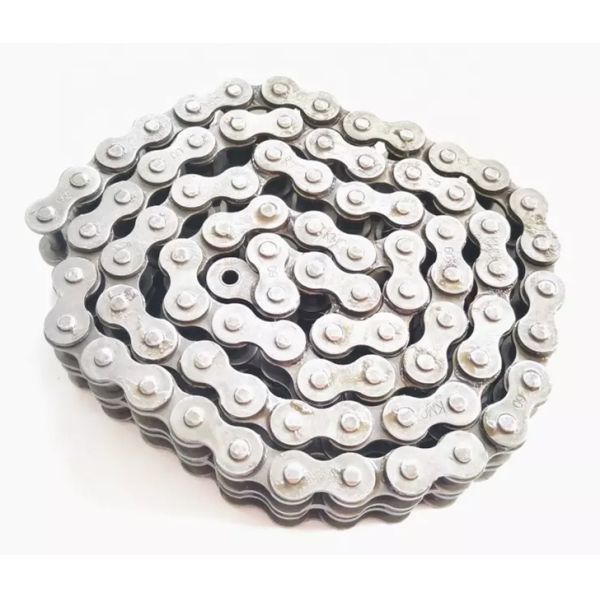

12A - 2 Drilling Rig Spares Double Stand Transmission Roller Chains12A - 2 Drilling Rig Spares Double Stand Transmission Roller Chains12A - 2 Drilling Rig Spares Double Stand Transmission Roller Chains
