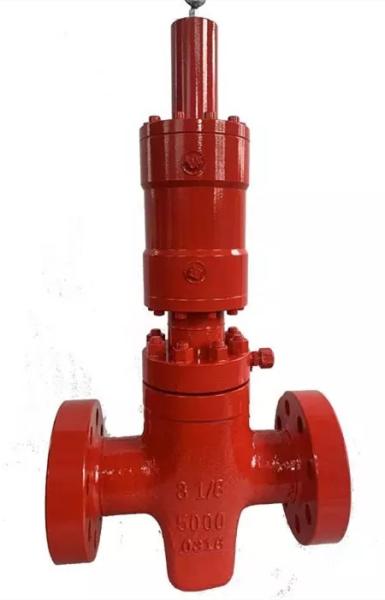

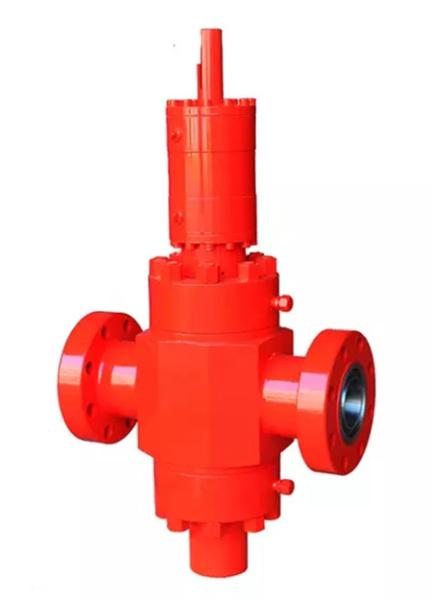

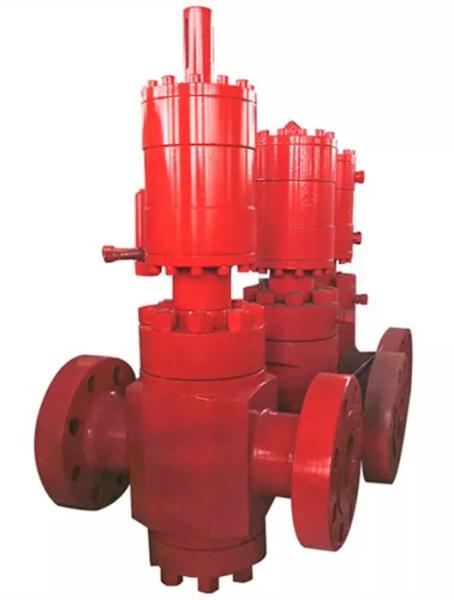

Hydraulic Gate Valve Manifold Control Valve API 6A Cameron FC Type Gate Valve

Manifold Control Valve - Hydraulic Gate Valve Description

Cameron FC Type Gate Valve are designed and manufactured per API6A and NACE MR-01-75 .it is a field proven valves with reliability and interchangeability. Gate valve has Bi-directional sealing and a non-rising stem making it ideally suited for drilling manifolds, x-mas trees and severe service. No special tools are needed to change gate and seat assembly.
One piece gate helps to prevent line sediment from enteribng the body cavity and prevents pressure locks when the upstream pressure drops. A wide range of body and trim material to meet various operating conditions. Easily equipped with hydraulic actuators for manifold or subsea service.

Hydraulic Gate Valve Specification:
Working Pressure: 2000psi~20000psi
Nominal Bore: 1.13/16″~7.1/16″ (46mm~180mm)
Working Medium: oil, natural gas, mud and gas containing H2S and CO2
Working Temperature: -46℃~121℃(Class LU)
Material Class: AA, BB, CC, DD, EE, FF, HH
Specification level: PSL1~4
Performance Requirement: PR1~2

The main characteristic of Manifold Control Valve:
♦Forged body & bonnet
♦Low operation torque
♦Metal-to-metal body/bonnet seal
♦Metal-to-metal backseal seal can be energized regardless of gate position
♦Lubrication fittings for easy maintenance
♦Gate guides retain body lubricants and protect gate
♦Manual or actuated operation
♦Simple design assures low cost
♦Flanged or screwed outlets

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
