Specifications
Brand Name :
Topland
Model Number :
WQ 275, WQ 375
Certification :
API 7K
Place of Origin :
China
MOQ :
1
Price :
30000-40000 USD PER PIECE
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 Pieces Per Month
Delivery Time :
10~20 days
Packaging Details :
Standard Package
Product Name :
WQ Pneumatic slip
Applicable pipe diameter :
2.3/8~ 14 in
Maximum working load :
250~500
Applicable turntable :
27.1/2, 37.1/2 in
Working pressure :
0.6~0.8Mpa
Weight :
1500kg
Description

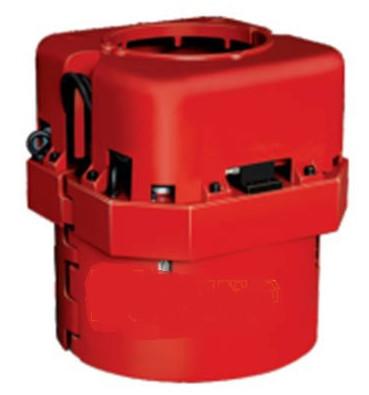

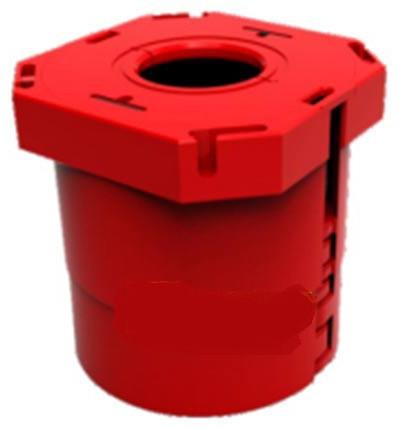

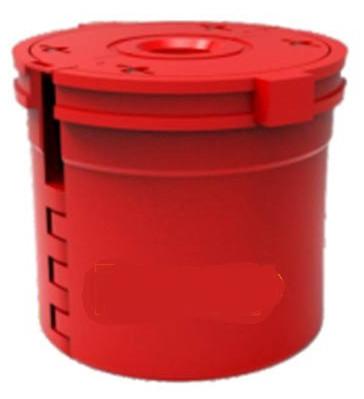

API 7K Power Slip Tubular Handing Tools Wellhead Automation Pneumatic Slip

Safe and reliable: the use of one crane and one card to lift off the drill operation fundamentally avoids the occurrence of a single hoist ring accident in the operation of double elevators.
Simple operation: realizing the control in the driller's room, saving the time of starting and lowering the casing or casing string.
Strong applicability: different configurations can be used according to the scene;
Air blowing and mud removal function: the air blowing function can be added as needed to ensure the cleanliness of the wellhead during the drilling process;
Provide anti-torque: According to different models of hydraulic slip, the anti-torque can be provided is 20kN.m, 55kN.m, 75kN+m. The slipped kava can tighten the column, eliminating the need to use back pliers during the upper shackle process.

Project Specification model
WQ 275 I WQ 275 II WQ 375 II WQ 375 III
Applicable turntable (in) 27.1/2 27.1/2 37.1/2 37.1/2
Applicable pipe diameter (n) 2.3/8~ 9.7/8 2.3/8~ 9.7/8 2.3/8~14 2.3/8~14
Maximum working load (tons) 250 350 500 500
Maximum working load (kN) 2224 3114 4448

4448

Project Specifications
WQ275 I (The upper cover of the turntable is exposed) WQ275 II WQ375 IV WQ375 V (Quick replacement for drilling)

Applicable turntabe

(in)

27 1/2 27 1/2 371/2 371/2

Suitable diameter

(in)

2.3/89.7/8 2.3/87.5/8 2.3/814 2.3/87

Minimum working load

(tons)

350 350 500 500

Maximum working load

(kN)

3114 3114 4448 4448

Working pressure

(MPa)

0.6 0.8

API 7K Power Casing Slip Wellhead Automation Pneumatic Slip
