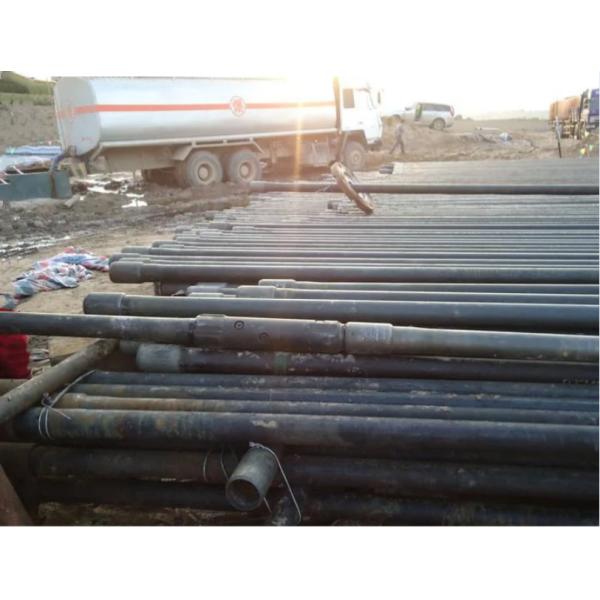

API Injector Perforating Gun Downhole Drilling Tools Sliding Sleeve Type

Injector Perforating Gun Description of Downhole Drilling Tools

Perforating gun is a combination of equipment and its accessories used for perforating oil and gas wells. At present, the more widely used is the shaped charge perforating gun, which produces the shaped charge jet by the phenomenon of shaped charge and shoots the formation.

The model of perforating gun is indicated by the outer diameter of perforating gun. The selection of perforating gun needs to be matched with production casing and wall thickness, otherwise it is easy to cause gun sticking accident.

Application
1) Hydraulic sand jetting & fracturing is well stimulation which combined of perforating, fracturing and isolation, it's an important technology to keep oilfield stable production.
2) Apply to low-permeability reservoir, thin reservoir and edge-bottom water reservoir;
3) Suitable for casing, screen pipe and barefoot well completion vertical well, horizontal well's multistage perforating fracturing operation.

Working Principle
Hydraulic Jetting & Fracturing technology--- jet-flow formed a boost pressure in the channels. Pumping the fluid increased the annulus pressure, the superimposing of both the pressure over the fracturing pressure and then man-made the stratum.
Hydraulic isolating technique---By control the jetting tool to chose the position and orientation of the crack initiation accurately; After the crack formed, the high-speed fluid jetting into the pore passage and the crack,the pore passage same as the "Jetting pump"; The annulus fluid under the function of the pressure difference was intaked stratum,maintain the extension of the cracks and realize the hydraulic isolation.

Operation
The Perforating Gun with Sliding Sleeve has a self-sealing effect and can realize multi-stage perforating and fracturing operation only by running the string downhole once.
During the perforating and fracturing, a steel ball will be dropped into the first sliding sleeve, by pressuring to the tubing and cut off the pin to make the sliding sleeve down to the sliding sleeve seat to setting, blocking the tubing, abrasive perforating; Pumping fracturing fluid into the tubing to maintain the pressure drop of the nozzle, applied pressure by annulus, fracture; After finish fracturing, shut in for a period of time,drop ball to the second sliding sleeve, setting, perforating and fracturing repeatedly.

Injector Perforating Gun Datasheet of Downhole Drilling Tools
