0.35MM Brick Wall Mesh Galvanized Brick Reinforcement Mesh Anti - Cracking 380g/M2
0.35MM Brick Wall Mesh Galvanized Brick Reinforcement Mesh Anti - Cracking 380g/M2
Specifications
Brand Name :
JIAFU
Model Number :
JFBRS380
Place of Origin :
ANPING HEBEI CHINA
MOQ :
500m2
Supply Ability :
5000M2/DAY
Delivery Time :
15-20
Packaging Details :
CARTON OR PALLET
MATERIAL :
Galvanized plate
Name :
Brickwork Reinforcement Mesh
Thickness :
0.35mm
Length :
10-100m
Width :
10cm-30cm
weight :
380/m2
Description

20cm Width 0.35MM Brick Wall Mesh Galvanized Anti-Cracking 380g/m2

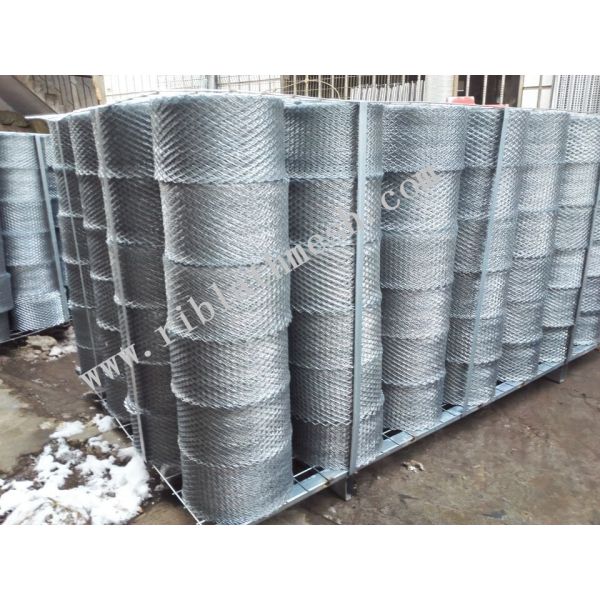

Brick Wall Mesh is made of hot dipped plate.We could produce the length by your need. It is use primarily as an anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.

Specification:

Hole Type: Diamond

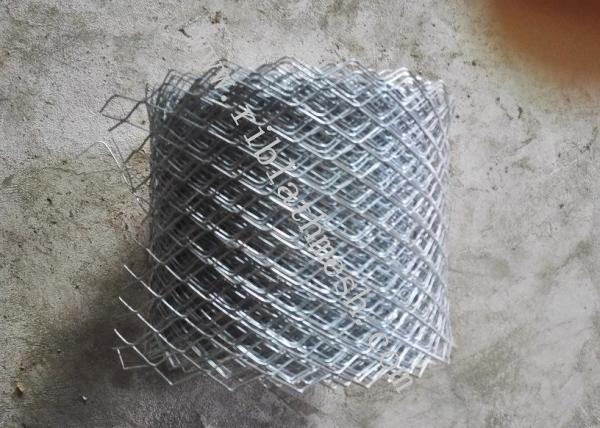

Hole Size: 16*28mm Llike the photo

width: 10cm, 15cm, 20cm,30cm

Length: 10m-100m

Hole Type Hole Size Width Length
Diamond 16*28mm 10cm-30cm 10-100m

How to Install Brickwork Reinforcement Mesh:

The coil mesh is laid in strips between brick or block courses leaving approximately 25mm clearance from the faces of the work. Where coil mesh joins are required, ensure they overlap by at least 75mm.

The reinforcement is then simply embedded in the mortar for the next course.

In most instances, application every third course, for the full length of the wall, will be sufficient.

To reinforce brickwork at an opening, e.g. window or door, mesh should be installed to overlap part of the opening, and part of the solid wall.

Thinking of the width of the opening, lay the mesh approximately a quarter of the way across the opening. The mesh should lie the same distance again, across the solid wall.

Above windows or doors, install Catnic mesh for 2-3 courses, starting from the course above the lintel .
