Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Specifications
Tube Chip Color :
Full color
Brand Name :
SCXK
Model Number :
P4
Certification :
CE/ROHS/FCC/ISO/CB
Place of Origin :
Shenzhen in China
MOQ :
3 sqm
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, D/P, T/T
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Warranty Time :
3~5 years
Working voltage :
DC5V
Pixel density :
62500 dots/sqm
Cabinet material :
Die- catsing Aluminum / Iron
Driving mode :
1/16 scaning
Pixel pitch :
4mm
Led Type :
SMD2121
Display Function :
Video/Text/Image
Description
High Resolution Indoor Full Color LED Display HD 4mm Pixel Pitch Stage Wall
Product Specifications
Attribute Value
Pixel pitch 4mm
Tube Chip Color Full color
Led Type SMD2121
Display Function Video/Text/Image
Cabinet material Die-casting Aluminum / Iron
Working voltage DC5V
Warranty Time 3~5 years
Pixel density 62500 dots/sqm
Driving mode 1/16 scanning
Technical Specifications
Resolution/mm 4
Pixel configuration 1R1G1B
Pixel density/pixels/m² 62500/m²
Module resolution 80x40
Module size/mm 320x160MM
View distance ≥4m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >1000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable: 100m, multimembrane: 500m, monofilm: 2km
Driving mode Constant driving current
Scanning mode 1/20 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment WindowsNT, Windows1999, WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000: 1)
System protection Moistureproof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration
Humidity(working) working: 10-95%
Humidity(storing) storing: 10-95%
Key Features
  • High Brightness: Viewers can see images clearly at long distances in sharp sunlight due to high brightness LED lamps.
  • Long Lifetime: High quality LED lamps and patent PCB design ensure extended product lifespan.
  • Stable Performance: Anti-electromagnetic wave treatment and modular design ensure reliable operation.
  • Exquisite Images: Nonlinearity correction technology delivers clear, vivid video with high fidelity.
  • Excellent Flatness: Precision module frame design maintains flatness within 0.1mm deviation.
  • High Contrast: Consistent deep black and patent masks enhance color freshness and contrast.
  • Easy Installation: Modular design simplifies setup and maintenance.
  • Premium Materials: Uses imported LED chips from Taiwan, USA or Japan with high quality components.
  • Multiple Formats: Supports TXT, graphics, pictures, animations and video programs.
  • Lacquer Coating: Protects PCB from environmental erosion with excellent insulation and moisture resistance.
  • High Shockproof: Cabinets undergo shockproof testing to prevent connection issues.
  • Waterproof Performance: Fully waterproof front and back for all-weather outdoor operation.

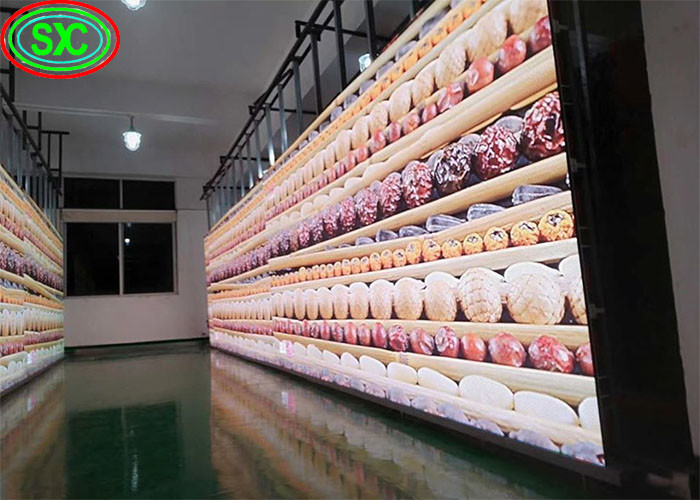

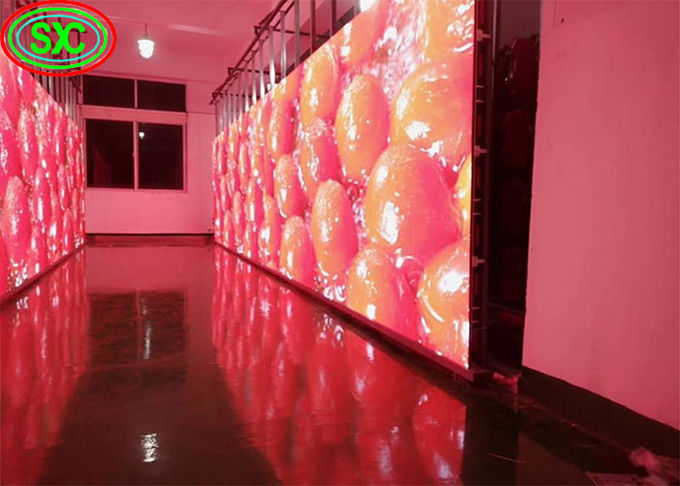

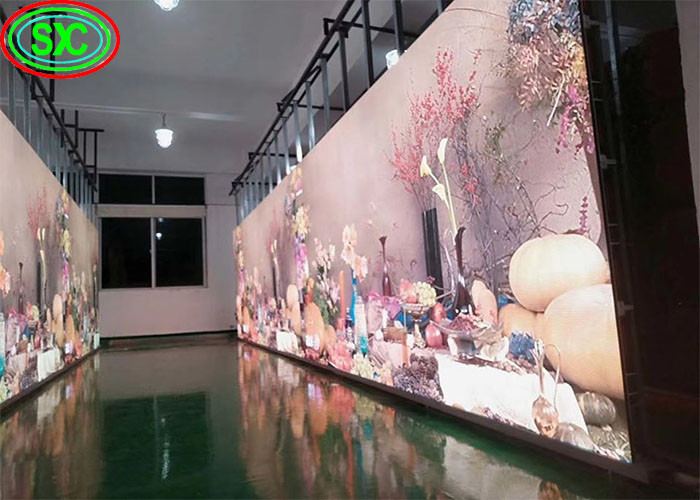

Product Images
Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121 Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121 Indoor Full Color LED Display Stage Church Use 4mm Pixel Pitch SMD2121
Trading Terms
Customs
  1. The price excludes any customs tax. Our company does not shoulder any duties in destination country.
  2. We help minimize or avoid GST/VAT/Import Taxes but cannot guarantee no charges as it depends on your country's policy.
  3. Customs Offices may inspect mail and levy charges. SCX co.,ltd isn't responsible for any importing Duty/Tax.
Shipping
  1. Shixin has agreements with major carriers (DHL, FedEx, TNT, EMS) for discounted shipping rates with online tracking.
  2. Items ship after payment confirmation.
  3. Shipping options include EMS, DHL, UPS, FEDEX or Airmail.
  4. We're not responsible for delays or issues caused by shipping services.
  5. Any importing charges or fees are the buyer's responsibility.
