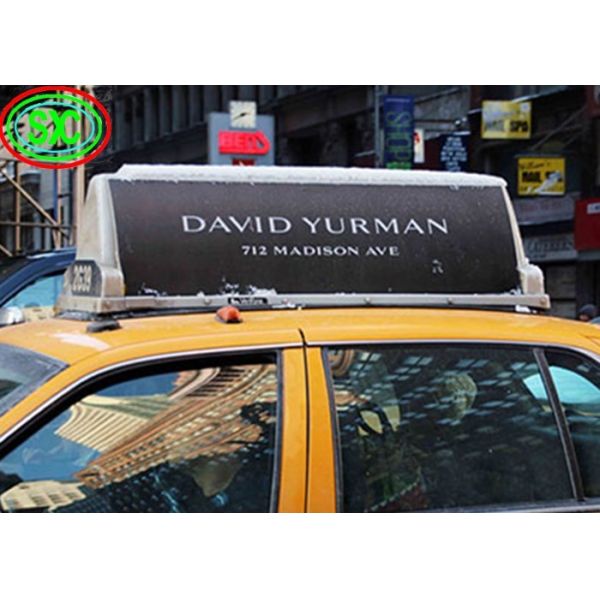

P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
P5 Outdoor Waterproof Full Color LED Car Sign Display With Aluminum Cabinet
Specifications
Brand Name :
SCXK
Model Number :
P5
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
ShenZhen in China
MOQ :
3 sqm
Price :
negotiation
Payment Terms :
Western Union, , D/P, T/T
Supply Ability :
5000 sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Led Type :
SMD 2727
Average NO Failure :
>=1000hours
Pixels :
5mm
Tube Chip Color :
Full color
Frame Frequency :
>=60HZ
Maximum power :
800m2
Waterproof :
ip65
Cabinet :
iron/die-casting aluminum
Transmiiting distance :
Internet cable <100m
Refresh Rate :
>=180HZ
Description
Outdoor Full Color P5 Car LED Sign Display LED Video Display with Aluminum Cabinet
Product Attributes
Attribute Value
Pixels 5mm
Tube Chip Color Full color
Led Type SMD 2727
Waterproof IP65
Cabinet Iron/Die-casting aluminum
Frame Frequency >=60HZ
Average NO Failure >=1000hours
Transmitting distance Internet cable <100m
Refresh Rate >=180HZ
Maximum power 800m²
Product Description
P5 Car LED Display LED Video Wall Full Color LED Screen 1R1G1B
Our Mission
To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.
Key Features
  • Lightweight design for easy transportation and installation, reducing labor costs - ideal for mobile displays
  • Sleek appearance with simple structural design
  • Tool-free assembly/disassembly by a single person
  • User-friendly interface with diagnostic indicator lights for easy maintenance
  • High brightness with preserved grayscale for superior image quality
Applications
  • Outdoor and indoor advertising, digital billboards
  • Sports venues, fields, playgrounds, schools, churches
  • Transportation hubs: airports, bus stations, railway terminals
  • Commercial buildings: shopping malls, department stores, banks, car dealerships
  • Urban architecture and public information systems
  • Entertainment events: concerts, festivals, motor shows
Technical Specifications
Resolution 5mm
Pixel configuration 1R1G1B
Pixel density 40,000 pixels/m²
Module resolution 64×32
Module size 320×160mm
Viewing distance 5-300m
Brightness adjustment Individual pixel control available
Color adjustment Individual pixel control available
White balance brightness >5000cd/㎡
Color temperature 6500K-9500K
Viewing angles 80° horizontal, 60° vertical
Signal processing 10 or 16bit
Driving mode Constant current
Scanning mode Static driving
Frame rate 60Hz
Refresh frequency 3000Hz
Control mode Computer synchronous
Brightness adjustment range 255 steps with no grayscale loss
Out of control rate <1/10000
Continuous operation >72 hours
MTBF >500 hours
Lifespan >100,000 hours
Operating temperature -20℃ to 50℃
Power consumption Max: 800W/m², Avg: 280W/m²
Diagnostic features LED self-check, communication monitoring, power check, temperature monitoring (customizable)
Remote monitoring Remote supervision with fault alerts (customizable)
Compatible systems Windows, 1999, XP
Power input AC110V to 220V
Signal input DVI
Warranty 2 years quality warranty, 10 years spare parts support
Our Services
  • 24-hour response to product inquiries
  • OEM & ODM services for custom lighting solutions
  • Distributor support for unique designs
  • Confidentiality protection for all client information
  • Premium quality products at competitive prices with reliable after-sales service
