p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
p8 outdoor full color stadium led display ip65 waterproof 5000nits
Specifications
Contrast :
≥2000:1
Waterproof :
IP65
Brightness :
≥5000
Driver mode :
1/4
LED Shape & Size :
3mm SMD3535/2727
Chip brand :
Epistar led
Pixel density :
15625 dots /m2
Pixel pitch :
8mm
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/CB/UL
Place of Origin :
Shenzhen China
MOQ :
5 sqm
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Description
Sports Stadium Perimeter LED Display Screen Outdoor P8 Full Color Waterproof
Key Specifications
Pixel pitch 8mm
Waterproof IP65
Chip brand Epistar led
Pixel density 15625 dots/m²
Brightness ≥5000
LED Shape & Size 3mm SMD3535/2727
Driver mode 1/4
Contrast ≥2000:1
Product Description

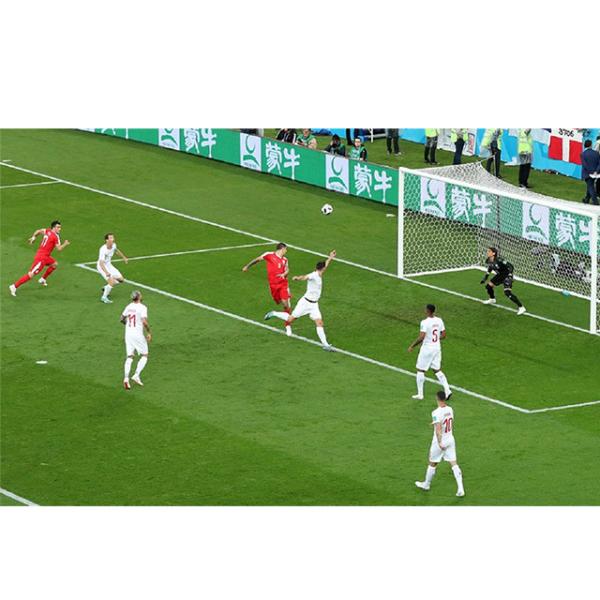

Outdoor P8 Football Basketball Stadium Perimeter LED Screen Display Full Color LED Pantalla

Technical Specifications
Parameter Value
Pixel Pitch P8
Pixel Configuration SMD3535/2727
Density (Pixels/㎡) 15,625
Module Resolution (Pixel) 32x16
Module Size (mm) 256x128
Driving Mode (Duty) 1/4
Cabinet Size (mm) 640x640
Cabinet Weight (KG) 11.5
Brightness (CD/㎡) ≥5000
Viewing Angle (°) H: 160 V: 140
Gray Grade (Bits) 14
Operation Power AC100-240V 50-60Hz
Max. Power Consumption (W/㎡) 550
Avg. Power Consumption (W/㎡) 300
Frame Frequency (Hz) ≥60
Refresh Frequency (Hz) ≥3,840
Working Temperature (ºC) -20～+60
Lifetime (Hours) 100,000
Protecting Grade IP65(front), IP54(rear)
Product Features
  • High refresh rate: Up to 3800Hz refresh rate ensures flicker-free performance under professional camera conditions (1/2800 seconds), delivering ultra high-definition image quality. p8 outdoor full color stadium led display ip65 waterproof 5000nits p8 outdoor full color stadium led display ip65 waterproof 5000nits
  • Standard size modules: 320mm × 160mm modules allow for quick assembling, maintenance, and easy pixel pitch changes (P5mm, P8mm, P10mm) without structural modifications. p8 outdoor full color stadium led display ip65 waterproof 5000nits

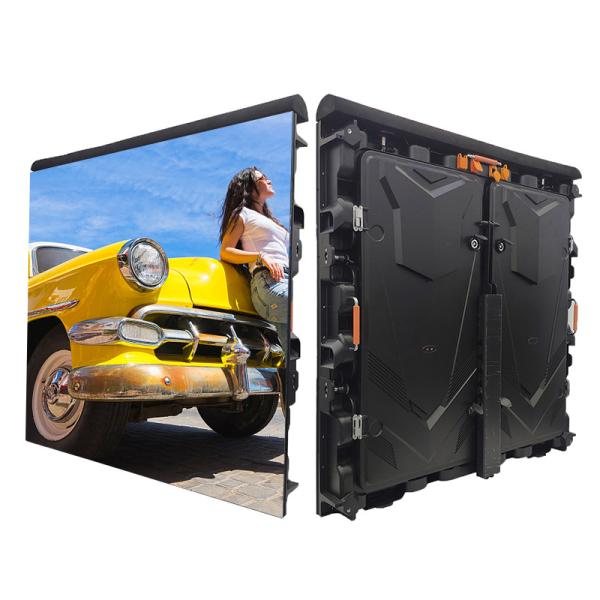

  • Exquisite cabinet design: Lightweight construction with quick locks, delicate structure for gap-free installation, and ergonomic handlebars for easy movement. p8 outdoor full color stadium led display ip65 waterproof 5000nits
  • Independent support structure: Rotatable and adjustable design withstands strong impacts and supports multi-angle adjustment (60°-90° range) to accommodate various site conditions. p8 outdoor full color stadium led display ip65 waterproof 5000nits
  • Soft mask design: Protective padding ensures safety for athletes and spectators, minimizing injury risk from impacts. p8 outdoor full color stadium led display ip65 waterproof 5000nits
  • Ultra lightweight cabinet: At only 28.5kg, the 960 series LED display reduces transportation and installation costs while maintaining durability. p8 outdoor full color stadium led display ip65 waterproof 5000nits
  • Waterproof performance: Special air inlet and waterproof structure provide excellent water resistance while maintaining effective heat dissipation and quiet operation. p8 outdoor full color stadium led display ip65 waterproof 5000nits
  • IP65 protection: All-weather durability with anti-ultraviolet technology ensures reliable operation in any outdoor conditions. p8 outdoor full color stadium led display ip65 waterproof 5000nits p8 outdoor full color stadium led display ip65 waterproof 5000nits
Packaging & Shipping

Available in wooden case or flight case packaging. Shipping options include sea, air, or DHL express service.

Customer Support

Our professional team provides comprehensive technical support and after-sales service.
