RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode
RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode
RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode
RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode
Specifications
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1sqm
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5000sqm per month
Delivery Time :
7-15 working days
Packaging Details :
wooden case.
Pitch :
10mm
Pixel configuration :
rgb 3in1
Module size :
320x160mm
Pixel density :
10000 dots/sqm
Cabinet size :
960x960mm
Driving mode :
1/4 scan
Brightness :
≥5500cd/m2
Warranty :
3 years
Description

Outdoor led tv screen fixed led display p10 led billboard price

Applications

--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.


Module Parameter

Pixel pitch 10mm
Pixel configuration 1R1G1B
LED type 3-in-1 SMD 3535
Module size 320x160mm
LED lamp KingLight or Nationstar
Module resolution 32x16dots


Cabinet Parameter

Cabinet size 960x960mm
Cabinet material Ironed steel cabinet
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65/IP54


Whole Screen Parameter

Pixel density 10000 dots/m²
Brightness ≥5500 cd/m²
Viewing angle H≥120° V≥120°
Min.viewing distance 10m
Max.power consumption 900W/m²
Avg.power consumption 330 W/m²
Working voltage 110~220VAC±15%
Interface HUB75
Colors 16.7millon colors
Gray level 65536
Refresh rate ≥1920Hz
MTBF ≥100,000 hours
Lifespan ≥100,000 hours
Protective function Over-heat/Over-load /Power-down /Power-leakage
/Lightning-protection etc.
Operating temperature -10℃ ~ +60℃
Storage temperature -20℃ ~ +60℃


Control System Parameter

Video signal (with video processor) AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.


Cabinet pohoto
RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode

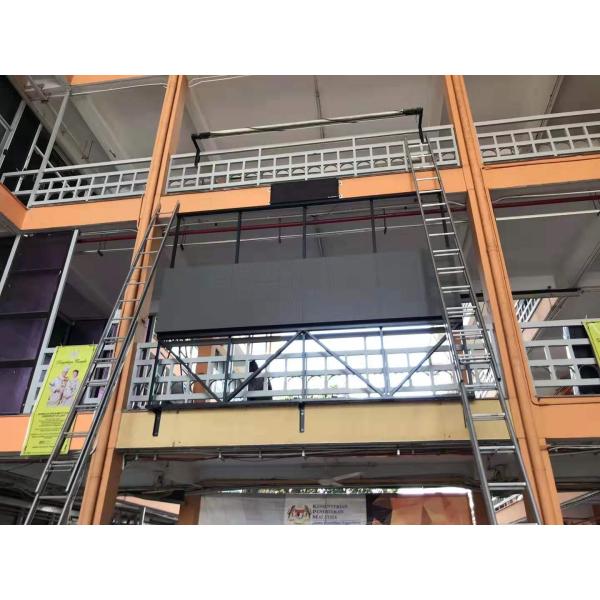

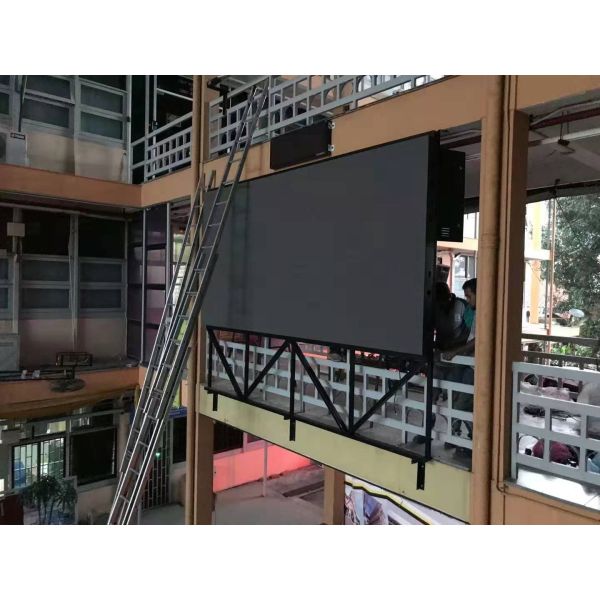

Installation case

RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode

RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode


Certificate
RGB 3 In 1 Outdoor Full Color LED Display P10 LED Billboard 1/4 Scan Driving Mode


Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.


Save your time and money with us!
