Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Specifications
Control System :
Asynchronous or Synchronous control
Module Size :
250x250mm
Brand Name :
SCX
Model Number :
outdoor p3.9
Certification :
CE,CB,IEICC,FC
Place of Origin :
shenzhen,China
MOQ :
11 sqm
Price :
negotiation
Payment Terms :
T/T,
Supply Ability :
3700 sqm per sqm
Delivery Time :
5-7 working days
Packaging Details :
wooden case，flight case
Gray Scale :
16bit
Input Voltage :
AC220V/50Hz
Operating Temperature :
-20℃-50℃
Switch Power Loading :
5V/40A
Refresh Rate :
3840Hz
Cabinet :
Iron or Aluminum For Options
Power Consumption :
800W/㎡
Power Supply :
MEANWELL
Brightness :
6500cd/㎡
Lifespan :
100000 Hours
Installation Type :
Wall-mounted / Hanging / Fixed installation
Description
Rental Billboard P3.91 LED Screen Panel Cheap Video Wall Indoor Outdoor Advertising Screen Stage Led Display
Case

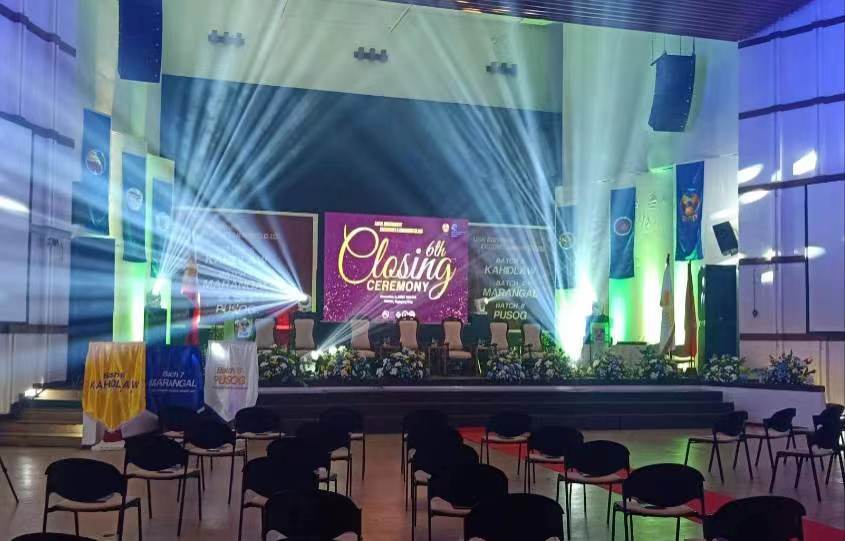

Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Indoor P3.91.

Total area: 30sqm 500*500mm
Brightness: ≥1300cd/㎡
Refresh Rate: ≥1920HZ
Location : Senegal, Africa

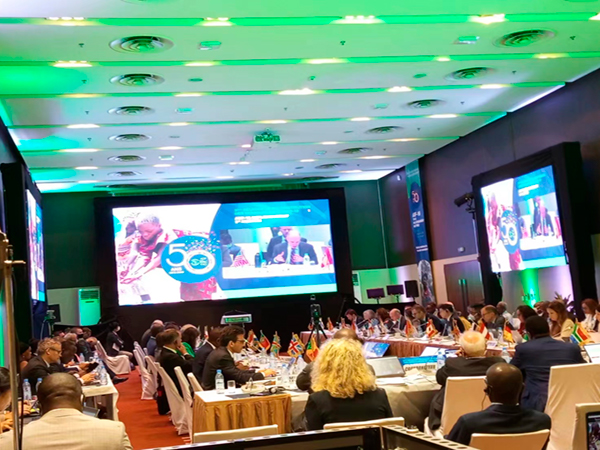

Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Indoor P3.91.

Total area: 30sqm 500*500mm
Brightness: ≥1300cd/㎡
Refresh Rate: ≥1920HZ
Location : Senegal, Africa
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Indoor P3.91 with protective corner.

Cabinet Quantity: 40pcs 500*500mm
Brightness: ≥1300cd/㎡
Refresh Rate: ≥3840HZ
Location : Philippines, Asia
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Outdoor P3.91.

Cabinet Quantity: 45pcs 500*500mm
Brightness: ≥4000cd/㎡
Refresh Rate: ≥1920HZ
Location : Philippines, Asia
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Indoor P3.91.

Cabinet Quantity: 40pcs 500*500mm
Brightness: ≥1300cd/㎡
Refresh Rate: ≥3840HZ
Location : Poland, Europe
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Outdoor P3.91.

Cabinet Quantity: 80pcs 500*500mm
Brightness: ≥4000cd/㎡
Refresh Rate: ≥3840HZ
Location : USA, North America
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Indoor P3.91.

Cabinet Quantity: 32pcs 500*500mm
Brightness: ≥1300cd/㎡
Refresh Rate: ≥3840HZ
Location : Iraq, Asia
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate

Outdoor P3.91.

Cabinet Quantity: 45pcs 500*500mm
Brightness: ≥4000cd/㎡
Refresh Rate: ≥1920HZ
Location : Philippines, Asia
Product Specifications
ITEM
HD OUTDOOR RENTAL INSTALLATION LED SCREENS
Product model
SJ-P2.604
SJ-P2.976
SJ-P3.91
SJ-P4.81
SJ-P5.95
SJ-P6.25
Pixel pitch
2.604mm
2.976mm
3.91mm
4.81mm
5.95mm
6.25mm
Physical density
147456dots/m²
112896dots/m²
65536dots/m²
43264dots/m²
28224dots/m²
25600dots/m²
LED Package
SMD 1415 (3in1)
Nation Star SMD 1921 (3in1)
SMD2727 (3in1)
Module size
250mm*250mm
Modules resolution
96*96
84*84
64*64
52*52
42*42
40*40
Modules weight
0.75±0.01kg
Driving method
1/30S
1/21S
1/16S
1/13S
1/7S
1/10S
Interface definition
HUB-16P
Cabinet size
500mm*500mm*85mm / 500mm*1000mm*85mm
Cabinets weight
8.6kg/16kg
Cabinets resolution
192*192
192*384
168*168 168*336
128*128 128*256
104*104 104*208
84*84 84*168
80*80 80*160
Equilibrium brightness
4500-6500cd/m²
5000-7500cd/m²
Power consumption
Max: ≤880W/m², Average: ≤400W/m²
Max: ≤700W/m², Average: ≤350W/m²
Refresh rate
≥3840Hz (ICN2055 Driving IC)
Viewing angle Level
H: ≥160°Optional, V: ≥120°Optional
Viewing distance
2.5-30m
3-40m
4-60m
5-70m
6-80m
6.5-90m
Temperature
Working : -25℃~60℃, Storage: -35℃~80℃
Humidity
10%~95%
Working voltage
Input: AC 100V~240V, 50Hz/60Hz, Output: DC 5V
Maintenance method
Front/Back service
Protection grade
Front: IP65, Back: IP65
Lifetime
100000 Hours
Product Description
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
Outdoor Led Sign Panels Billboard P3.91 with 500x500mm cabinet and3840hz refresh rate
