P10.42 transparent glass screen full color , 3G WIFI transparent video wall Brightness 6000
P10.42 transparent glass screen full color , 3G WIFI transparent video wall Brightness 6000
P10.42 transparent glass screen full color , 3G WIFI transparent video wall Brightness 6000
P10.42 transparent glass screen full color , 3G WIFI transparent video wall Brightness 6000
Specifications
Brand Name :
SCXK
Model Number :
P10.42
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
China
MOQ :
1-1000sqm
Price :
negotiation
Payment Terms :
T/T
Delivery Time :
7working days
Packaging Details :
flight case, wooden case
Supply Ability :
3000sqm per month
Pixel Density :
9216 pixels/sqm
Brightness :
6,000 nits
Control System :
LNS
Cabinet Size :
1000*1000
Driver mode :
1/3
Operation Power :
220V 60HZ
Display Color :
1.07 billion
Refresh Rate :
4000 Hz
Description

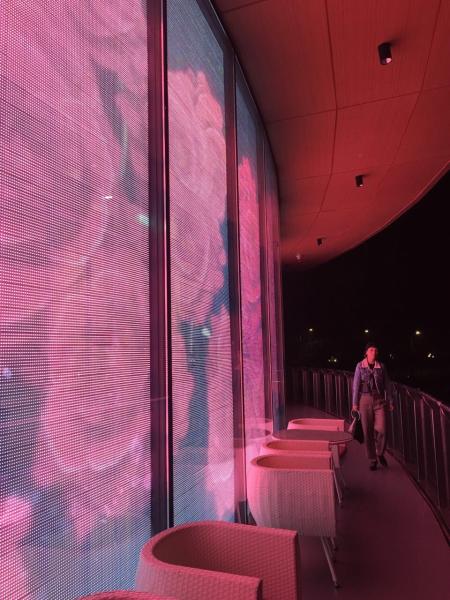

P10.42 Transparent LED Screen

P10.42 transparent glass screen full color , 3G WIFI transparent video wall Brightness 6000

Product Features:

Free Radian Conjuction

2 Sets of radian locators make it possible to present image in concave and corivex shape at customized radians.

Ultra Thin and Light Weight

9KG/cabinet makes it easy to carry and assemble.

Status Indicator

Status indicator on backcover lets you know the working status of led cabinet without opening backcover

Strengthening Ribs

The ribs effectively strengthens the construction of cabinet frame,and also can be used as the carry handle.

Product Description

Technical traits of P10.42 mm outdoor sports/stadium led screen display:

Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system and play a variety of information like video, word, flash, music, clock, graph etc. LED DISPLAY Cabinet design for easy install and dismantle.

Pixel pitch 　 10.42mm
Brightness 　 6,000 nits
Brightness adjusted 　 100 grade by software, or Auto-optic
Color temperature 　 Could be adjusted by software
LED configuration 　 1R, 1G, 1B SMD
Pixel density 　 9216 pixels/sqm 　
　 　 2,304 pixels/cabinet (48 * 48)
Hor.viewing angle 　 140 (min 50% brightness)
Vert.viewing angle 　 140 (min 50% brightness)
Lifetime 　 100,000 hours to 50% of initial brightness
MTBF 　 10,000 hours
Power consumption 　 800 w/sqm (Max) 　
　 　 400 w/sqm (Average) 　
Operation power voltage 　 AC 110V / 50 - 60Hz 　
　 AC 220V / 50 - 60Hz 　
AC 100-240V / 50-60Hz 　
Working voltage 　 DC +5V 　
Cabinet dimensions 　 Width: 500mm 　
　 　 Height: 500mm 　
　 　 Depth: 75mm 　
Weight bearing 　 1000 Kg/m2 　
IP rating 　 IP65 Front side 　
　 　 IP55 Back side 　
Processing 　 16 bit/color 　
Colors 　 280 trillion 　
Refresh rate 　 4000 Hz 　
Frame rate 　 60Hz 　
Link interface 　 DVI 　
Operating temperature 　 -20℃ ~ +50℃ (-4° ~ 122°F) 　
Storage temperature 　 -35℃ ~ +85℃ (-31° ~ 185°F) 　
Operational humidity 　 10-99% 　
Source compatibility 　 DVI,SDSDI,HDSDI,VGA,HDMI,YPbPr,PAL/NTSC system composite 　
Operatable digitizer 　 JSEE 　
Certifications 　 CE,FCC,RoHS 　

Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm

Our Services

Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
Certifications:

FAQ

1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
