Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Specifications
working voltage :
DC5V
certificates :
CE, RoHs, FCC, ISO
Cabinet :
die-casting aluminum/iron
Led Type :
SMD3535
dot density :
10000
Warranty Time :
3 years
driving mode :
1/4 scaning
screen size :
960*960mm
Pixels :
10mm
cabinet size :
320mm*160mm
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL/CB
Place of Origin :
Shenzhen in China
MOQ :
2sqm
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
piexl dots :
32*16
Description
Slim Outdoor Full Color P10 P6 P8 SMD LED Screen Rental with 3 Years Warranty
Product Specifications
Attribute Value
Pixels 10mm
Led Type SMD3535
Display Function Video/Image
Cabinet Die-casting aluminum/iron
Cabinet Size 320mm*160mm
Working Voltage DC5V
Warranty Time 3 years
Dot Density 10000
Driving Mode 1/4 scaning
Certificates CE, RoHs, FCC, ISO
Pixel Dots 32*16
Screen Size 960*960mm
Premium Features
  • LED: International brand components with wide viewing angle, high brightness, minimal attenuation, excellent heat dissipation, and vivid colors
  • Driving IC: Premium brands including Taiwan MBI and Japanese Toshiba to prevent dark bright or virtual light defects
  • Power Supply: Industrial-strength with 20% maximum power reserve and less than 5% voltage fluctuation
  • Connector: Aerospace-grade brands ensure stable power and signal transmission
  • PCB Board: Advanced 4-layer design
  • Easy Installation: 100 cabinets can be installed in one hour by one person; cabinet replacement takes under 50 seconds
Technical Specifications
Module P6.67 P8 P10
Module size (mm) 320x160 320x160 320x160
Density of pixel (dots/m²) 22,478 15,625 10,000
LED encapsulation SMD3535 SMD3535 SMD3535
Resolution of module 48X24 40X20 32X16
Optimum viewing distance 6.67-155m 8-185m 10-200m
View angle (°) 140 H,120 V 140 H,120 V 110H,60V
Max power consumption (W/M²) 1100 1000 1000
Size of cabinet (mm) 640X640 640X640 640X640
Resolution of cabinet 96x96 80x80 64x64
Weight of cabinet (kg) 15 15 15
Driving method 1/8 scan constant current 1/4 scan constant current 1/4 scan constant current
Refresh rate (Hz/S) ≥2000 ≥2000 ≥2000
Luminance of white balance (nits) ≥5000 ≥6000 ≥5500
Additional Specifications

Operation Temperature: -30°C to +50°C

Working Voltage: 110-220 VAC ±10%

Grey Scale/Color: Displays ≥16.7M colors (synchronized)

Brightness Adjustment: 256 manual levels per color, 100 automatic levels per color

Input Signal: RF, S-Video, RGB, RGBH, YUV, YC & Composition, etc.

Control System: Linsn (sending card, receiving cards and Hubs)

MTBF: >50,000 hours

Life Span: >100,000 hours

Defect Dot Rate: <0.0001

Product Images

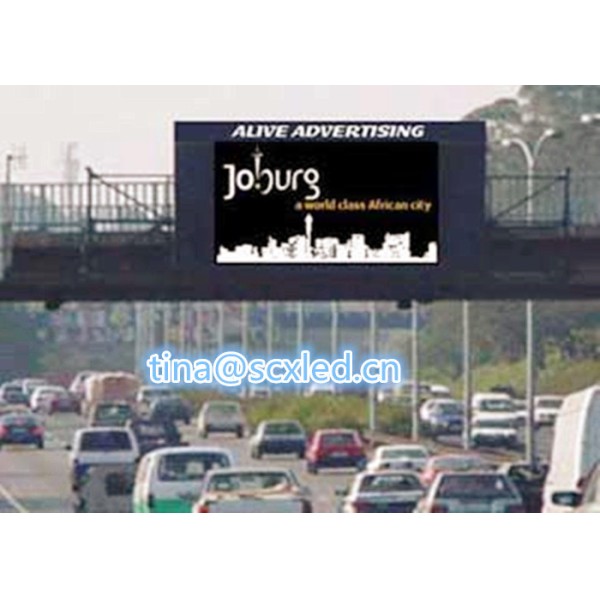

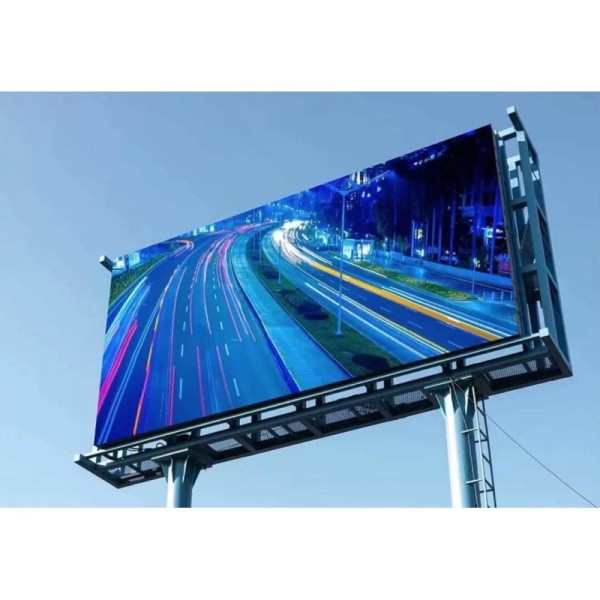

Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Customer Support & Warranty
  • Guidance Service: Online support for installation and usage; for large projects, we provide one week of free training or on-site guidance (customer bears relevant costs)
  • Warranty Period: 3 years after shipment
  • Maintenance Principles: Timely response and problem resolution
  • Maintenance Terms: Free maintenance during warranty period; after warranty, only material costs are charged
About Our Company

SCXK has specialized in LED technology since 2005. As a leading manufacturer based in Shenzhen, China, we provide comprehensive technical solutions for full-color indoor and outdoor LED displays, rental LED displays, and LED modules.

Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty Outdoor Waterproof Full Color P10 SMD LED Screen 10mm Pitch 3 Years Warranty

For more information about our LED display solutions or to discuss your specific requirements, please contact our professional team.
