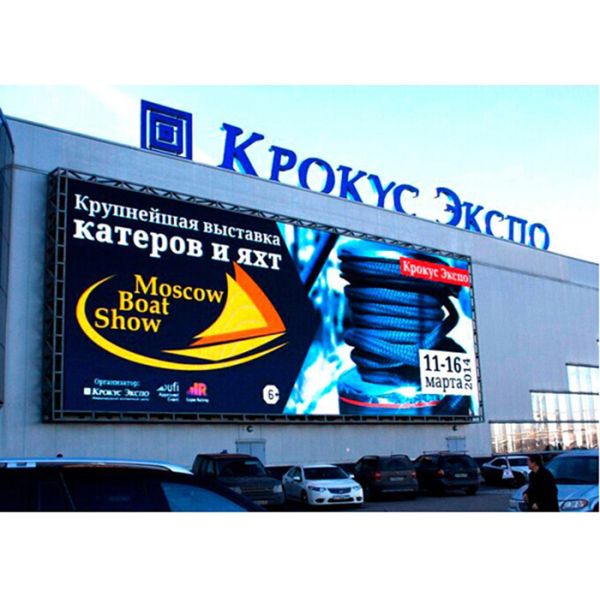

P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
Specifications
working voltage :
DC5V
certificates :
CE, RoHs, FCC, ISO, CB
Tube Chip Color :
Full color
dot density :
15625
Warranty Time :
3 years
driving mode :
1/4scaning
Pixels :
8mm
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/CB
Place of Origin :
ShenZhen in China
MOQ :
2sqm
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Display Function :
Video
cabinet size :
320mm*160mm
Description
Epistar P8 SMD Outdoor LED Screen Display for Events Advertising Full Color
Product Attributes
Attribute Value
Pixels 8mm
Tube Chip Color Full color
Display Function Video
Cabinet Size 320mm*160mm
Working Voltage DC5V
Warranty Time 3 years
Dot Density 15625
Driving Mode 1/4 scanning
Certificates CE, RoHs, FCC, ISO, CB
Product Description
Epistar P8 SMD Outdoor LED Display Screen with Nova System
P8 SMD Outdoor Full Color LED Display Screen
8mm pixel pitch, 1R1G1B, 15625 dots/sqm, P8 SMD Outdoor Full Color LED Display Screen delivers high brightness and energy efficiency, capable of displaying videos, animations, and messages to maximize audience engagement. This versatile display is suitable for various outdoor applications.
Key Advantages
  • High-definition display adjustable for DVD, TV, dynamic images, VCRs, graphs, text, and animations with 24/7 operation capability. Features sharp, vibrant colors synchronized with computer monitors. Built with waterproof, sun-resistant, anti-static, damp-proof, freeze-resistant, and thunder-proof protection.
  • Superior quality with excellent light consistency, effectively eliminating mosaic effects.
  • Crisp, detailed, and realistic display for both images and text.
  • Wide viewing angles (110° horizontal, 50° vertical) with consistent picture quality and no color shift.
  • Modular design allows individual LED lamp replacement, reducing maintenance costs and simplifying repairs.
Technical Specifications
LED Lamps SMD3535 (High Brightness LEDs)
LED Standard Real Pixel (1R1G1B)
Red Wavelength 625-630nm
Green Wavelength 515-530nm
Blue Wavelength 465-475nm
Pixel Pitch 8mm
Module Size 320mm x 160mm
Module Resolution 32dots x 16dots
Cabinet Size 960mm x 960mm
Cabinet Resolution 120pixels x 120pixels
Cabinet Material Iron
Pixel Density 15625pixels/sq.m
Brightness >5000cd/sqm
Viewing Angle 110°(H), 50°(V)
Best Viewing Distance 1m~150m
Power Consumption Max: 1000w/sq.m, Avg: 280w/sq.m
Refresh Rate 3000hz
Input Voltage AC220V/50H or AC110V/60H
Output Voltage DC5V, 40A
Grey Scale Levels 1024
Display Colors 16.7 million (R1024 x G1024 x B1024)
MTBF 10,000 hours
Lifespan 100,000 hours
Protection Level IP64
Working Temperature -25℃~65℃
Working Humidity 10%~99%
Applications
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
Packaging and Shipping
Available in wooden cases or flight cases. Multiple shipping options including sea, air, or DHL.
P8 SMD Outdoor Waterproof Building LED Screen 8mm Pixel Full Color Video Display
Service Commitment
Fast Delivery: Guaranteed delivery timelines with emergency inventory procedures when needed.
Perfect Service: Comprehensive pre-sales consultation and dedicated after-sales support with product usage tracking.
