P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
Specifications
warranty :
3 years
pixel configuration :
1R1G1B
Brand Name :
SCXK
Model Number :
P8
Certification :
CE/ROHS/FCC/ISO/UL
Place of Origin :
ShenZhen in China
MOQ :
2 sqm
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Pixels :
8mm
Led type :
SMD3535
Tube Chip Color :
Full color
pixel density :
15625
Description

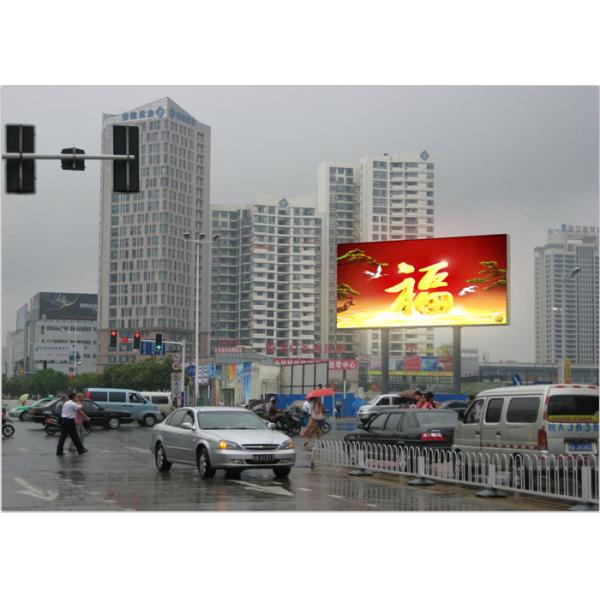

P8 Outdoor Full Color LED Display Module Screen
High-performance LED display module designed for airport and highway commanding centers with excellent visibility and durability.
Key Attributes
Attribute Value
Pixels 8mm
Tube Chip Color Full color
Pixel Density 15625
Pixel Configuration 1R1G1B
Warranty 3 years
LED Type SMD3535
Technical Specifications
Pixel pitch 8mm
Module size 320*160
Module resolution 80*40
Best viewing angle 110°/75°
Best viewing distance ≥8m
Protection IP65
Average power consumption 280W/sq.m
Max power consumption 850W/sq.m
Cabinet weight 32kg/sq.m
Brightness ≥5000cd/sq.m
Frame frequency ≥60hz/s
Refresh frequency ≥2500hz/s
Storage temperature -20°C~+55°C
Operated temperature -20°C~+55°C
Malfunction dot rate <0.0001
Life >10,000 hours
Applications
  • Government and enterprise facilities
  • Army offices and communication centers
  • Airport and highway commanding centers
  • energy/financial departments
  • Exhibition halls and government lobbies
  • Museums and broadcasting centers
  • Ministry of Transport and meteorological departments
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65 P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65 P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65 P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65 P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
Packaging
P8 Outdoor Building Waterproof Full Color LED Display Module 8mm SMD3535 IP65
Service & Support
Technical Training
Comprehensive training provided on system use, maintenance, and equipment protection based on manuals and guides.
After-Sales Services
  • Phone Service: 24-hour support with technical guidance based on fault description and images
  • Real-time Communication: Support via TM, Email, and Skype including video demonstrations
  • Remote Control: Software installation and troubleshooting via remote access
  • Post Service: Warranty repairs for defective components with prompt return
  • On-site Service: Engineer dispatch available upon request with customer assistance
Certifications
Our products comply with international standards including CE, FCC, and Rhos certification.
