SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
Specifications
Waterproof :
ip65
viewing distance :
10-400m
Tube Chip Color :
Full color
Average NO Failure :
>=1000hours
Frame Frequency :
>=60HZ
Transmiiting distance :
Internet cable <100m
Pixels :
10mm
density :
10000 piexls
Brand Name :
SCXK
Model Number :
P10
Certification :
CE/ROHS/FCC/ISO/UL/CB
Place of Origin :
ShenZhen in China
MOQ :
No limit
Price :
negotiation
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
5000sqm per month
Delivery Time :
7-10 working days after receive your payment
Packaging Details :
flight case, wooden case, carton, it is up to you.
Led Type :
SMD 3535
Display Function :
Video
Description
SMD P10 Outdoor Waterproof Full Color LED Display Screen Video Advertising
Product Specifications
Pixels 10mm
Tube Chip Color Full color
Led Type SMD 3535
Display Function Video
Waterproof IP65
Frame Frequency ≥60HZ
Average NO Failure ≥1000hours
Transmitting distance Internet cable <100m
Viewing distance 10-400m
Density 10000 pixels
Product Features
  • Classical design with reliable quality and great performance
  • Seamless connecting technology with screen flatness error <0.1mm
  • Patented mask eliminates dark spots, improving consistency and viewing angle
  • High contrast and ideal gray scale for realistic picture presentation
  • Supports brightness and color correction for the entire screen
  • Optimized power load and parameter settings for best working conditions
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen

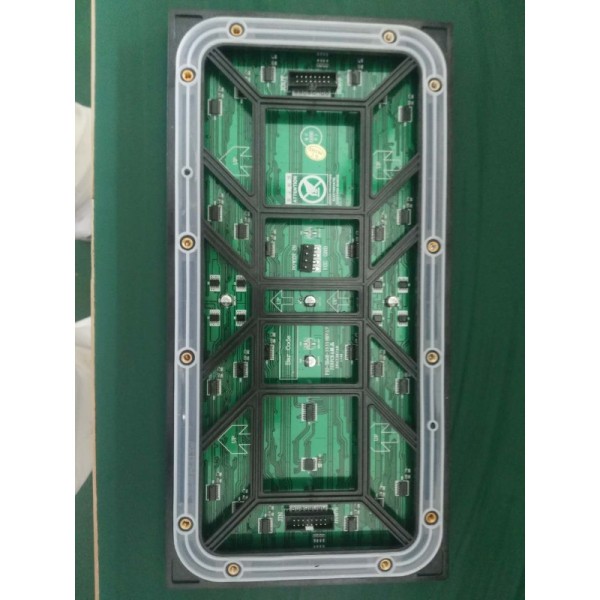

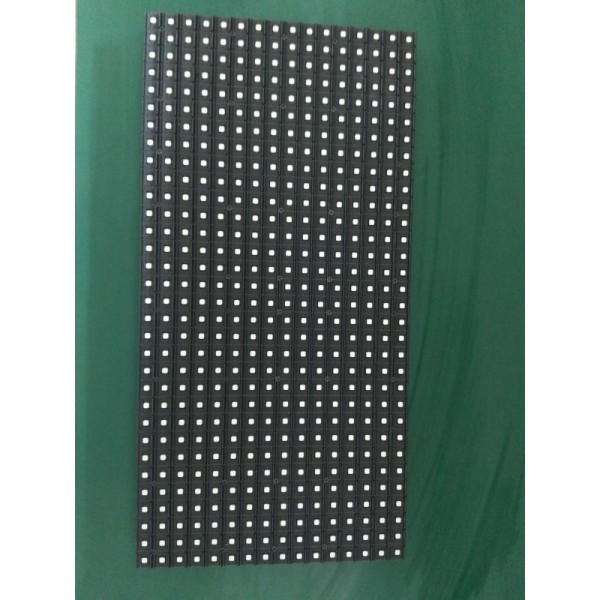

Module Specifications
Color type Real full color
Module size 320*160mm
Pixel led SMD3535
Resolution rate 32*16
Driving IC MBI5024
Working voltage DC5V
Power 200W
Working temperature -20°C - +55°C

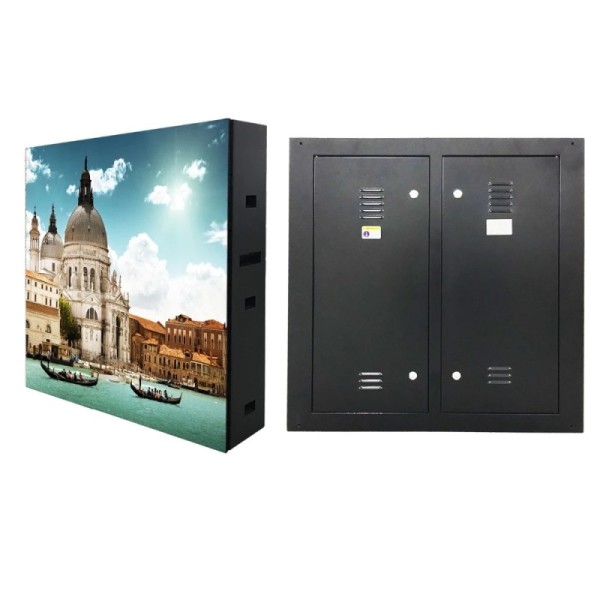

Cabinet Parameters
Cabinet size 960x960mm
Cabinet material Ironed/Die-casting aluminum
Cabinet weight 32.5kg
Ingress protection Front/Rear IP65
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
Screen Specifications
Material Iron/Die-casting aluminum
Color Full Color
Size 960*960mm
Resolution rate 32*16
Module quantity 4*6
Density 1000dots/m2
White balance luminance ≥5500cd/m2
Color temperature 6500
Horizontal view angle 110
Vertical view angle 50
Protection grade Before/after: IP65/IP43
Non-Flatness 1mm
Module interval 1mm
Weight 10-40kg
Maximal power/m2 600W
Frame frequency ≥60Hz/s
Refresh frequency ≥300Hz/s
Gray grade 16777216
Luminance adjusted 256 grade by hand & 8 grade by auto-optic/color
Input signal RF, S-video, RGB, RGBHV, YUV, YC & Composition, etc
Control system PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmission (Optional)
MTBF >5000h
Life-span >100000h
Speckles rate <0.0002
Control System Parameters
Video signal (with video processor) AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature Adjustable by software
Brightness level 256 levels, automatic adjustment by software
Control way Computer, video-synchronous, real-time, off-line, wireless, internet etc.
SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
Why Choose Us
Continuous Quality

With more than 10 years experience in LED display production, our equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.

Competitive Price

Our large-scale production capacity and professional technology allow us to maintain competitive pricing while promoting technical innovation to benefit customers.

Fast Delivery

We honor our delivery commitments and implement special procedures like emergency inventory to maintain uninterrupted product supply.

Perfect Service

Pre-sales: We carefully consider your requirements and recommend suitable products.

After-sales: We track product usage to continuously improve our offerings.

SMD P10 Outdoor Stadium Building IP65 Waterproof Full Color LED Display Screen
