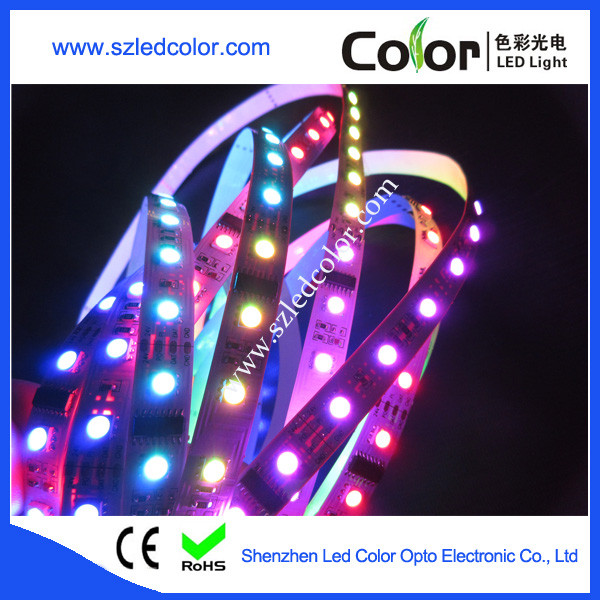

5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
5050 smd high brightness full color dmx control dmx512 led strip
Specifications
Place of Origin :
Shenzhen
Brand Name :
LC
Model Number :
LC-DMX
Certification :
CE,RoHS
Price :
7.5-9usd/m
Packaging Details :
Anti-static Bags+carton bag
Delivery Time :
3days
Payment Terms :
Paypal,TT,Western Union
Supply Ability :
15000M/week
MOQ :
5m
Description

5050 smd high brightness full color dmx control dmx512 led strip

Our dmx led strip is 5 way output ( PI/PO address writing wire, A(Dmx+),B(Dmx-),GND), and DC5V/12V/24V, Don't need decoder . as the MAX485 is inside the DMX512 ic ,It can be cut ,can be parallel and series connection .Much better than Another suppliers.

Specifications:

Name :Dmx512 led strip

Color:Full Color RGB

LED Quantity: 30,32,60leds per Meter

Size: 5000*12*2.5(mm)

View angle:120°

Working Input Voltage: 5V or 12v ,or 24v

Working Tempreture:-20° to 70°

Drive Mode:Contant Voltage

It can be 3cables,4cable,5cables,

DC5V 32IC 32LEDs individual controlled;

DC12V 10IC 30LEDs,1 control 3;

DC12V 10IC 60LEDs,1 control 6.

Waterproof Rate:

IP20 non waterproof:3M sticker on the back,

IP65 waterproof: Silcone gel or epoxy on the surface,

IP67 waterproof: Silicone tube,

IP68 waterproof: Siloicone gel inside silicone tube.

For our DMX512 LED strips is 5cables( 5V, PI/PO address writing wire, A(Dmx+),B(Dmx-),GND,as below:It`s the newest dmx led strip in the market with max485 inside dmx512ic,can be controlled without decoder,can be series connection and parallel connection.

5050 smd high brightness full color dmx control dmx512 led strip

When writing the address for the strips,you just need a address writer,and connect the PI ,+5V and GND to the address writer,so the address is arranged.

For the connection:just connect the A to Dmx+,B to Dmx-,GND to GND,So it is controllable(below is the connection to our controller)

5050 smd high brightness full color dmx control dmx512 led strip

For you have dmx controllers,the connection of it are the same way,for it is standard dmx led strip ,fellowing the standard international dmx portol.

The connection of address writer to five cables dmx512 as below:

5050 smd high brightness full color dmx control dmx512 led strip

Pictures:

5050 smd high brightness full color dmx control dmx512 led strip5050 smd high brightness full color dmx control dmx512 led strip

5050 smd high brightness full color dmx control dmx512 led strip5050 smd high brightness full color dmx control dmx512 led strip

5050 smd high brightness full color dmx control dmx512 led strip5050 smd high brightness full color dmx control dmx512 led strip

5050 smd high brightness full color dmx control dmx512 led strip5050 smd high brightness full color dmx control dmx512 led strip5050 smd high brightness full color dmx control dmx512 led strip

5050 smd high brightness full color dmx control dmx512 led strip
