APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED
APA101 APA102 Built-in IC SMD LED

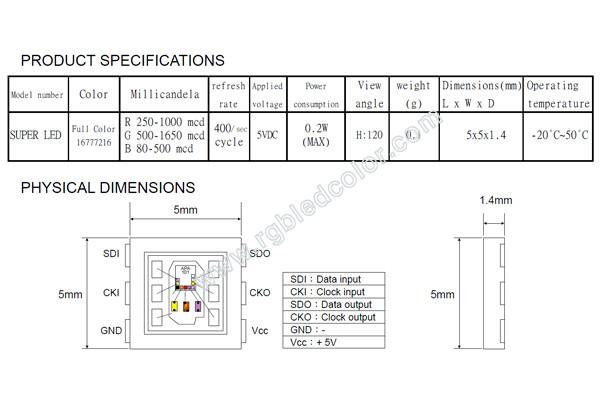

Specifications
Place of Origin :
Shenzhen
Brand Name :
LC
Certification :
CE,RoHS
Model Number :
LC-APA102SMD
IC Type :
APA102
Size :
5*5*1.4mm
LED Chip :
Epistar
Color :
Full Color RGB
Holder :
copper
MOQ :
1000pcs
Price :
0.1usd/pcs
Packaging Details :
Anti-static Bags+carton bag
Delivery Time :
3days
Payment Terms :
Paypal,TT,Western Union
Supply Ability :
100000pcs/Day
Description

APA101 APA102 Built-in IC SMD LED

Introduction

This kind of our LED is integrated with driver APA102 built in IC and wide application,

Increases safety by better device reliability and visibility.

APA102 as a new type of built-in IC for the three color chips packaged inside one 5050 SMD LED as dimming controlled LED.

These color chips an be RGB,or three single color chips, such as the digital controlled pure white digital color smd led APA102 white and APA102 Warm white.

Adopting the CMOS process to provide threecolor RGB LED output driver to

adjust the output with 256 gray scale and 32 brightness adjustment ,

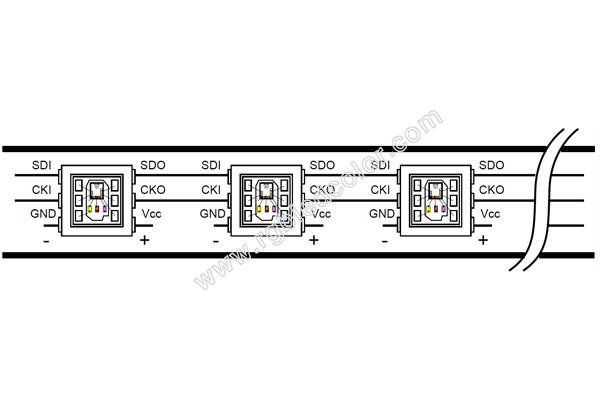

APA102 built-in IC LED has 2 signal output cables,

one data,another is independent clock cable,

the clock and data are synchronized,so that the crystal cascade piece of output

movement is carried out simultaneously.

Feature

CMOS process,low voltage ,low consumption

Synchronization of two-lane

Choose positive output or negative RGB three-color LED output

8 bit(256 level) color set ,5bit(32 level) brightness adjustment

Build-20ma constant current output

With selfdetection signal build in support for continuous oscillation PWM output ,

can be maintained static screen

Save energy and maintenance cost

Create more than one billion colors

Entire cabinet comply with IP66

Replace neon lamp

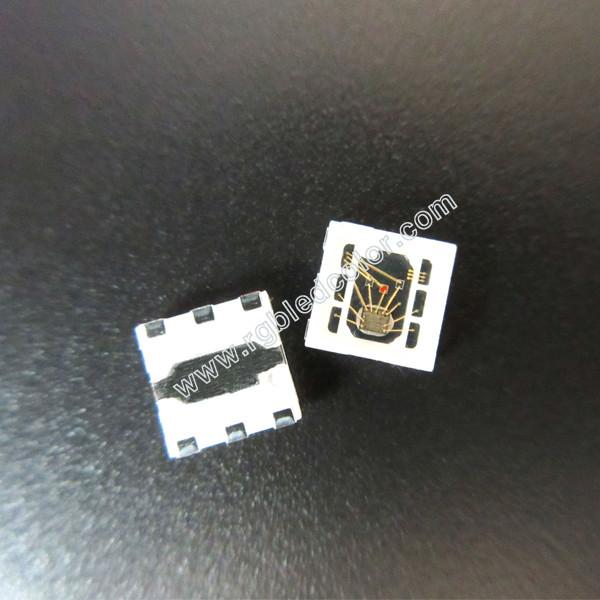

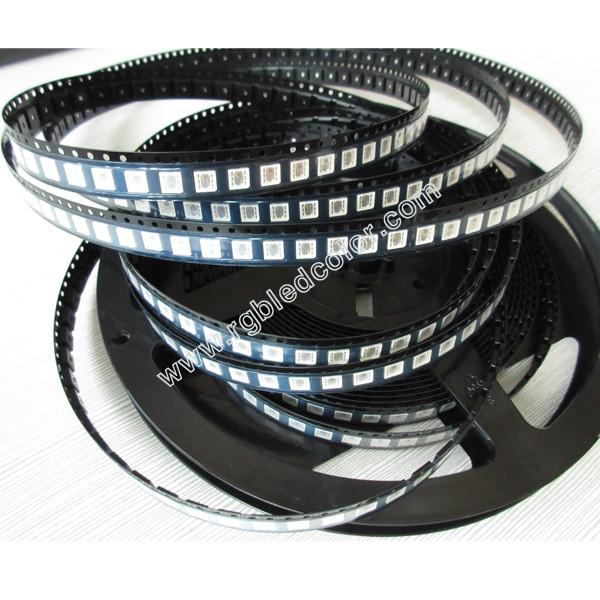

Show Pictures of APA102 LED as below:

APA101 APA102 Built-in IC SMD LEDAPA101 APA102 Built-in IC SMD LEDAPA101 APA102 Built-in IC SMD LEDAPA101 APA102 Built-in IC SMD LED

APPLICATION of APA102 LED

Landscape lighting,

LED strips,

LED screen displayer
