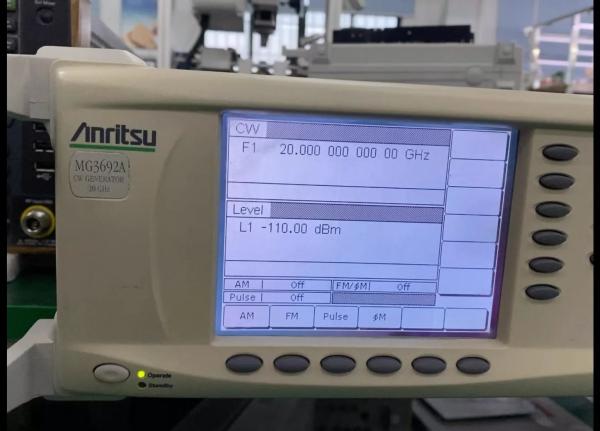

Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz
Specifications
Brand Name :
Anritsu
Model Number :
MG3692A
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Western Union,T/T,MoneyGram
Delivery Time :
3-5 days
New / Used :
Used
Frequency Range :
2 – 20 GHz base; 10 MHz – 2.2 GHz with Option 4 (DDC) or 10 MHz – 2 GHz with Option 5; 0.1 Hz – 10 MHz with Option 22 (DDS).
Leveled Output Power: :
+13 dBm (≥2–20 GHz, standard); up to +19 dBm (≤10 GHz) and +17 dBm (>10–20 GHz) with Option 15 High Power; down to –120 dBm with step attenuator.
SSB Phase Noise @ 10 GHz (standard) :
–94 dBc/Hz @ 1 kHz, –102 dBc/Hz @ 10 kHz & 100 kHz, –125 dBc/Hz @ 1 MHz; Option 3 provides ultra-low phase noise.
Frequency Switching Time :
<15 ms + 1 ms/GHz step (phase-locked step sweep) or <40 ms to within 1 kHz in CW; list/agility modes typically <25 ms
Interfaces / Time Base / I/O :

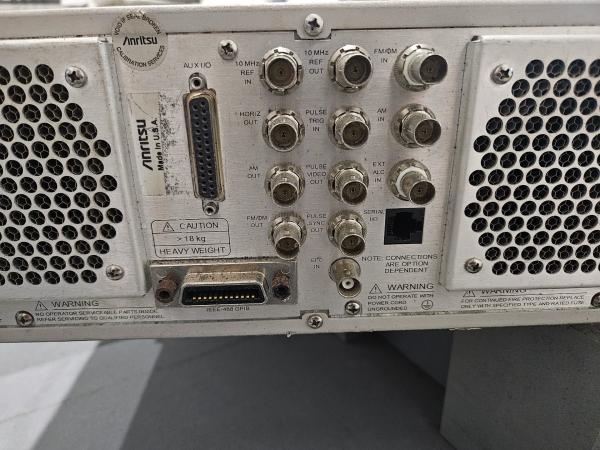

GPIB remote control; 10 MHz ref in/out; 50 Ω K-female output; resolution 0.01 Hz; size 133 × 429 × 450 mm, ≤18 kg.
Description

The MG3692A is a broadband synthesized signal generator covering 2 to 20 GHz with excellent spectral purity and fast switching for production or R&D. Phase-noise performance reaches –102 dBc/Hz at 10 kHz offset (10 GHz carrier), with optional ultra-low-noise and high-power configurations to meet demanding receiver sensitivity, ACPR/EVM, and LO substitution tasks. Frequency-extension options add coherent coverage from 0.1 Hz to 20 GHz, while standard GPIB control, list/agility modes, and user flatness correction streamline automated test setups. Refurbished units can be supplied with recent calibration and required options to reduce CAPEX without sacrificing performance.


Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz




Contact Us for a Fast Quote


Interested in an Anritsu MG3692A or a similar model?


  • Drop your WhatsApp number or e-mail on our website and we will:


    • Send a tailored quotation and any current promotions.

    • Provide extra photos, test data, and full configuration details.

    • Discuss shipping, duties, warranty, and any other specifics you need.


Looking for other models? Our inventory changes daily—ask for the latest list of spectrum analyzers and RF equipment.



Low Phase Noise RF Microwave Signal Generator Anritsu MG3692A 2–20 GHz




Frequently Asked Questions (FAQ)


1/ Performance Assurance

Every unit is calibrated at an ISO/IEC 17025 accredited laboratory. The original calibration certificate, marked TESTRO Certified, is linked to the unit’s serial number and included in the shipment.



2/ Integrity of Internal Components

  • A set of high-resolution teardown photographs showing seals, fasteners, and all critical modules.

  • A live video session in which an engineer demonstrates gain-linearity, noise-floor, and spurious-response tests in real time.

    All recordings remain in our cloud archive for the life of the product.


3/ Warranty & Technical Support

  • One-year transferable warranty.
  • Our in-house engineering team is available on business days to provide remote software troubleshooting or hardware-assembly guidance.


4/ International Shipping Protection

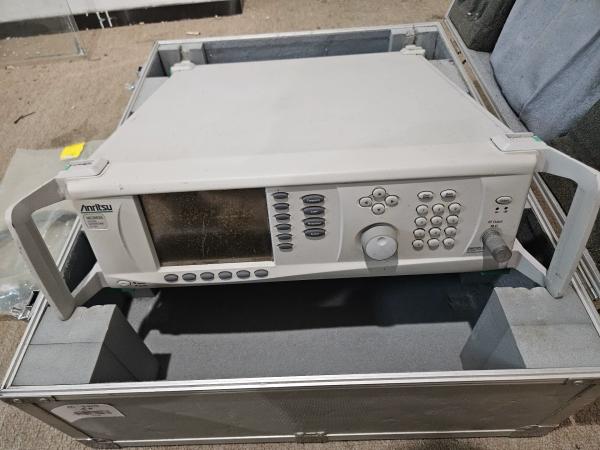

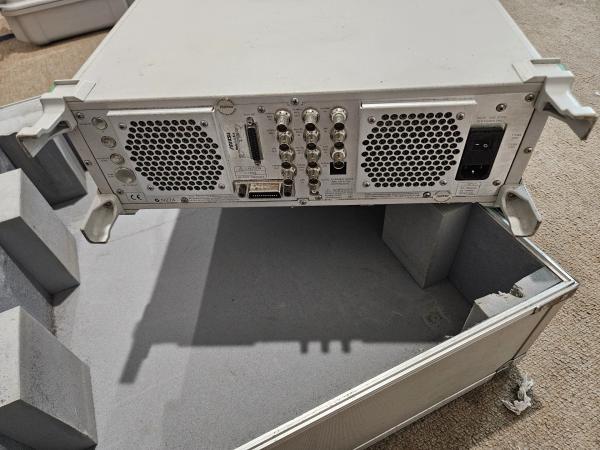

  • Custom flight case built from aviation-grade plywood with triple-layer anti-vibration foam.
  • Shock- and tilt-indicator labels on every crate.
  • Preferred carrier: DHL, delivery in 3–5 days to major destinations.


5/ Payment Terms

We accept T/T, wire transfer, credit card.


6/ On-Site Inspection

Customers are welcome to visit our Shenzhen warehouse and refurbishment line to inspect calibration benches, burn-in racks, and inventory.
