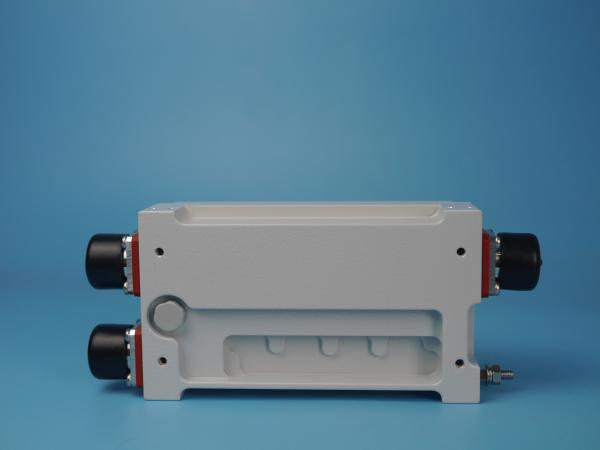

300W Same Band Combiner 380 / 960 MHZ Double Units PIM 160DBC Outdoor IP66
300W Same Band Combiner 380 / 960 MHZ Double Units PIM 160DBC Outdoor IP66
300W Same Band Combiner 380 / 960 MHZ Double Units PIM 160DBC Outdoor IP66
300W Same Band Combiner 380 / 960 MHZ Double Units PIM 160DBC Outdoor IP66
Specifications
Brand Name :
Lenolink
Model Number :
98.00826
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Supply Ability :
5000pcs/month
Delivery Time :
4-8weeks
Certification :
ISO
Packaging Details :
Packing with bracket 1 PC /box
PIM :
160dBc
Isolation :
50dB
Power :
300W
Application :
Outdoor
Frequency :
380-960/1710-2700MHz
color :
grey
Description

380-960/1710-2700MHz Double Unit Dual Band Combiner PIM 160dBc IP66

Lenolink Multi-Band Combiners are designed for cost effective antenna sharing for outdoor and indoor applications. Used for combining or splitting different frequency bands onto the same feeder systems, Multi-Band Combiners will save CAPEX by minimizing hardware components during installation.

The Multi-Band Combiners are customized to combine specific frequency spectrums without incurring high insertion loss

allowing operators to integrate their frequencies into a common antenna system with greater ease and efficiency. Kaelus

provides a wide range of Multi-Band Combiner products for 2G, 3G, 4G and LTE systems.

Design Advantages:

• Integrated structure design.

• Lower PIM, lower insertion loss, higher isolation, and higher power handing capacity.
• Differentiated DC/AISG 1.1/2.0 pass allows full compatibility with requiring TMAs.
• IP67 protection ensures stable performance in any environment.
• Mounting hardware for Wall and Pole mount provided.
• Compact design, easy installation.
• Lifetime warranty.

New innovations

1. Designed for co-siting purposes

2. Enables feeder sharing

3. Suitable for indoor or outdoor applications

4. Integrated auto-sense technology for automatic DC/AISG

5. Wall or mast mounting

6. Built-in lighting protection

7. Available as single unit, or for XPol antennas as a double

8. Low insertion loss

9. High input power

Type No. 98.00826
Electrical
Port Port1 Port2
Frequency (MHz) 380-960 1710-2700
Insertion Loss (dB) ≤ 0.3
Ripple in band (dB) ≤ 0.25
Isolation (dB) ≥ 50
VSWR ≤ 1.3:1
Impedance 50 Ω
Input Power ( c.w./per port) ≤ 300 Watts
Intermodulation Products ≤ -160dBc (3rd order; with 2×20W)
DC/AISG By-pass (2500 mA max.)
Lightning Protection 3kA；10/350us pulse
Environmental 　
Temperature Range -20 to +55°C (Operating)
Application IP66
Mechanical 　
Connectors 4.3-10 Female or 7/16DIN(F)
Colors Grey, RAL 7035 (powdering)
Weight Single unit: ≤ 4.5 kg
Dimensions (without connectors) Double unit: 181.8*104*110 mm
Packing with bracket 1 pc /box
