RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer
Specifications
Brand Name :
Bicheng
Model Number :
BIC-488.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Base material :
FR-4
Layer count :
1 Layer
PCB thickness :
1.6mm ±0.16
PCB size :
108.3x 110.6mm=6PCS
Solder mask :
Gloss Green
Silkscreen :
White
Copper weight :
1oz
Surface finish :
Hot air soldering leveling(HASL),lead free
Description
Single Sided PCB Simple Single Layer Circuit Board Tin/Lead Plated PCBs for Transformer
1.1 General description

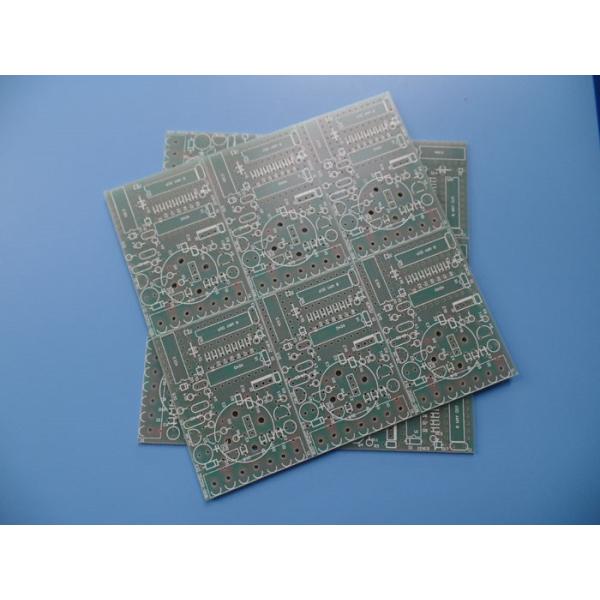

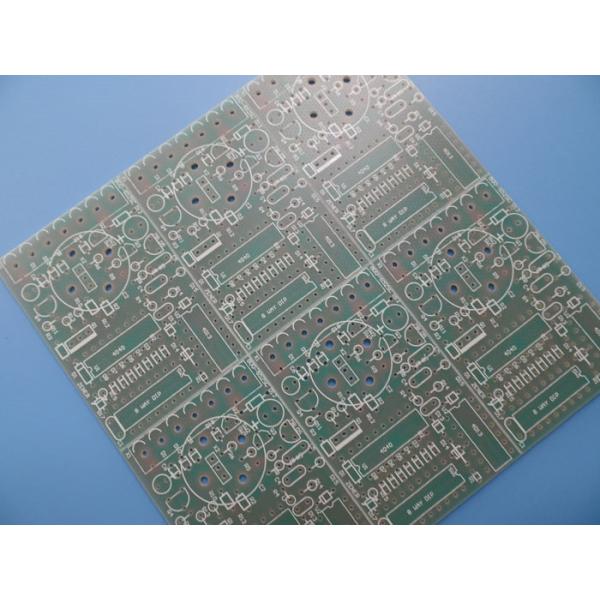

This is a type of 1 layer printed circuit board built on FR-4 substrate with Tg 130°C for the application of Transformer. It's 1.6 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and HASL on pads. The base material is from Taiwan ITEQ supplying 6 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.
1.2 Features and benifits
Lead free assemblies with a maximum reflow temperature of 260℃.
Excellent wetting during component soldering and it can avoid copper corrosion.
ISO9001, ISO14001, UL certified manufacturing factory.
Micro-section and thermal stress test
RoHS materials
No MOQ, low cost for prototypes and small runs quantity.
1.3 Applications
Router WiFi
2.4 Ghz Antenna
Microstrip Antenna
Embedded Technology
1.4 Parameter and data sheet
PCB SIZE 108.3x 110.6mm=6PCS
BOARD TYPE Single sided PCB
Number of Layers 1 layer
Surface Mount Components no
Through Hole Components YES
LAYER STACKUP Copper ------- 35um(1oz) TOP layer
FR-4 1.5 mm
TECHNOLOGY
Minimum Trace and Space: 7mil/8.3mil
Minimum / Maximum Holes: 0.4/5.54mm
Number of Different Holes: 9
Number of Drill Holes: 88
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Glass Epoxy: FR-4 1.5mm, Tg>130℃
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: Bottom, 12micron Minimum
Solder Mask Color: Gloss Green, Taiyo PSR-2000GT600D
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend Bottom
Colour of Component Legend White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo: No special requirement
VIA Non Plated Through Hole(NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
