This PCB is a double-sided rigid board fabricated using TRF-45, a new generation of low-loss, thermally stable laminated material. Characterized by woven-glass reinforcement for enhanced dimensional stability and integrated ceramic technology, TRF-45 ensures low and consistent Z-axis expansion even under soldering conditions. Engineered with a finished thickness of 0.9 mm, 1 oz (1.4 mils) copper cladding on the outer layers, and an Immersion Gold surface finish, this PCB delivers reliable performance for high-frequency electronic applications.

PCB Details

PCB Stack-up

This is a 2-layer rigid PCB with the following stack-up structure (from top to bottom):

PCB Statistics

Artwork and Quality Standard

Gerber RS-274-X serves as the specified artwork format for this PCB, a globally acknowledged industry benchmark for printed circuit board manufacturing. This standard format ensures seamless interoperability with professional design software and fabrication machinery, facilitating the precise conversion of digital circuit layouts into physical PCB products. Moreover, this PCB complies with the IPC-Class-2 quality standard, which sets rigorous criteria for performance and dependability, thereby confirming its appropriateness for use in commercial and industrial operational scenarios.

Availability

This high-performance PCB is available for shipment worldwide, catering to both prototyping demands and large-volume production orders to ensure global accessibility for all customers.

Introduction of TRF-45

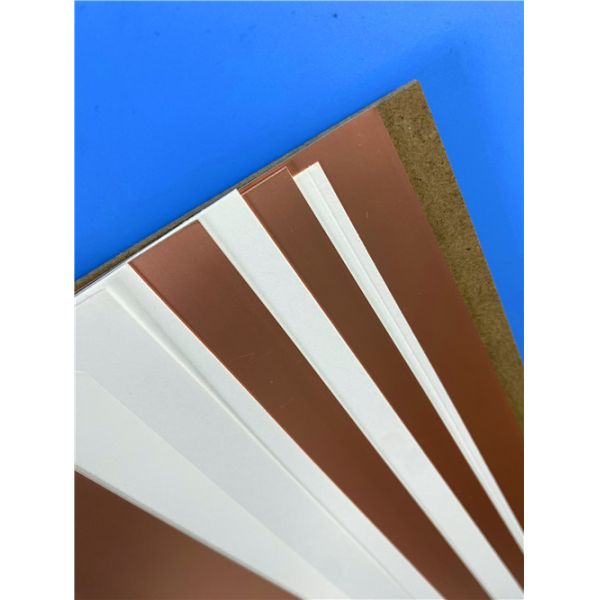

The TRF-45 laminated materials represent a new generation of low-loss, thermally-stable laminated material from Taconic Advanced Dielectric Division. TRF-45 is woven-glass reinforced for enhanced dimensional-stability and coupled with Taconic's expertise in ceramic technology. It exhibits low and consistent Z-axis expansion across a wide range of temperature including and up to soldering conditions. TRF-45 can be sheared, drilled and plated using standard methods for PTFE woven fibre-glass materials.

Typical Applications

• Satellite radio antennas
• RFID antennas
• GPS antennas

TRF-45 – Low-Loss Ceramic-Filled PTFE

The TRF series of laminates represents a new generation of low-loss, thermally stable laminated materials from Taconic's Advanced Dielectric Division.

Reinforced with woven glass for enhanced dimensional stability and backed by Taconic's expertise in ceramic technology, TRF laminates exhibit low and consistent Z-axis expansion across a wide temperature range, including soldering conditions.

Benefits

• Low-loss ceramic-filled PTFE
• High thermal conductivity
• Stable dielectric constant (Dk) over temperature
• Stable dielectric constant (Dk) over frequency
• Very low Z-axis coefficient of thermal expansion (CTE)
