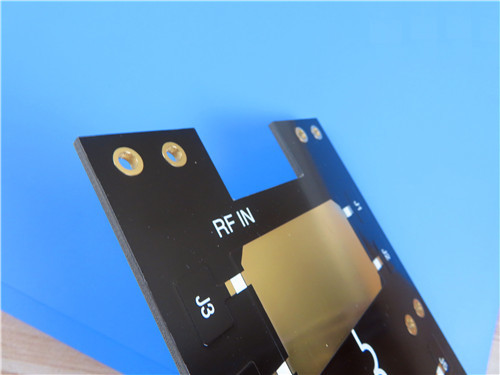

This 2-layer rigid high-frequency PCB features aerospace-grade F4BTMS265 ceramic-filled dielectric substrate with low electromagnetic loss and minimal anisotropy. It adopts ENIG surface treatment, black top solder mask and white top silkscreen, with a fully mask-free and silkscreen-free bottom side. All units pass 100% electrical testing before delivery, ensuring stable dielectric performance, low signal attenuation and reliable structure for aerospace, military and RF/microwave applications.

PCB Specifications

PCB Layer Stack-up Structure

Artwork & Quality Compliance

Production File Standard: Fabricated based on industry-standard Gerber RS-274-X files, supporting high-precision circuit patterning and full compatibility with mainstream industrial manufacturing processes.

Quality Standard: All fabrication and inspection procedures comply strictly with IPC-Class-2 specifications, ensuring stable electrical performance and long-term structural reliability.

Global Availability: Worldwide supply and logistics services are available to support global aerospace and high-frequency electronic projects.

F4BTMS265 Material Profile

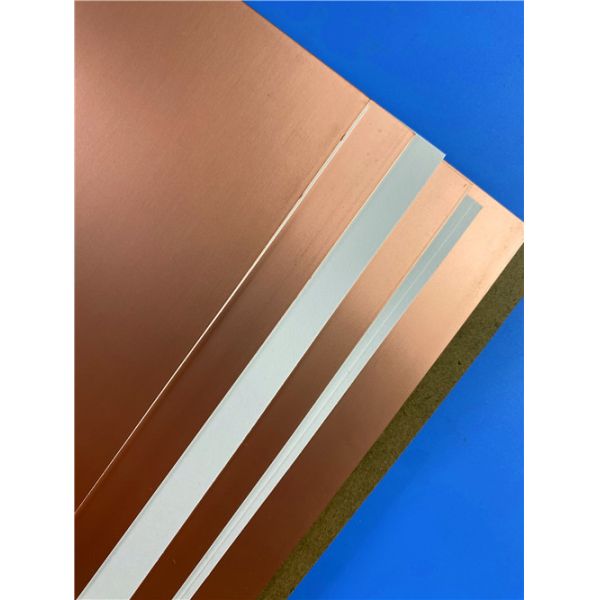

F4BTMS265 is an upgraded high-reliability ceramic-reinforced PTFE dielectric substrate optimized from the standard F4BTM series. Filled with uniformly distributed nano-ceramic particles and ultra-fine glass fiber, it reduces glass fiber-caused electromagnetic interference, dielectric loss and structural anisotropy. Adopting low-roughness RTF copper foil as standard, it delivers low conductor loss and stable peel strength, and supports copper/aluminum base lamination. With excellent dimensional, thermal and dielectric stability, this aerospace-grade material serves as a high-performance substitute for imported high-frequency substrates in military and aerospace applications.

Typical Application Fields

Featuring ultra-low dielectric loss, minimal structural anisotropy, superior thermal stability and aerospace-grade reliability, F4BTMS265-based PCBs are well-suited for deployment in high-precision, phase-sensitive high-frequency electronic systems:

• Aerospace devices, space equipment and cabin electronic systems
• High-frequency RF and microwave circuit systems
• High-precision military radar equipment
• Antenna feed network components
• Phase-sensitive antennas and phased array antenna systems
• Satellite communication systems
