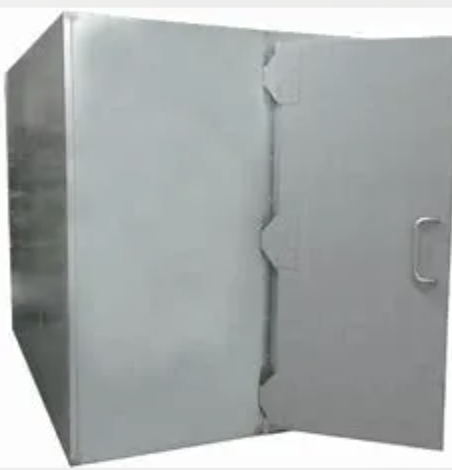

Double Layer Galvanized Steel RF Shielded Room Integrated HVAC System 14KHz 40GHz Attenuation
Double Layer Galvanized Steel RF Shielded Room Integrated HVAC System 14KHz 40GHz Attenuation
Specifications
Description
Double Layer Galvanized Steel RF Shielded Room with HVAC Integration

This advanced double layer galvanized steel RF shielded room offers industry-leading shielding performance with an integrated HVAC system for temperature and humidity control. The dual-layer construction provides superior isolation for sensitive applications including data centers, EMC test laboratories, and high-security facilities.

Double Layer Construction
  • Outer layer: 3mm galvanized steel panels for structural integrity and primary shielding
  • Inner layer: 2mm galvanized steel panels with welded corners for secondary shielding
  • Air gap between layers enhances low-frequency magnetic field attenuation
  • Electrically isolated inner and outer shells prevent ground loop interference
  • Modular bolted design enables reconfiguration and future expansion
Integrated HVAC System
  • Dedicated HVAC unit with EMI-filtered power supply and control lines
  • Honeycomb waveguide air inlets and outlets maintain shielding integrity
  • Temperature control range: 18-26C
  • Humidity control: 30-70% RH
  • Airflow optimized for uniform chamber temperature distribution
Shielding Performance
Frequency Range Attenuation
14KHz (Magnetic Field) 95dB
100KHz 110dB
200KHz 120dB
50-103MHz (Plane Wave) 130dB
1-10GHz (Microwave) 120dB
10-20GHz 110dB
20-40GHz 90dB
Standard Accessories
  • RF shielding door (1.0x2.0m) with pneumatic sealing mechanism
  • Power line filters (32A/63A/100A) for main and auxiliary power
  • Honeycomb ventilation panels with HVAC duct interfaces
  • RF patch panel with fiber optic and coaxial feedthrough
  • Anti-static flooring system
  • Fire detection and suppression system
  • Emergency exit with RF shielding

Full turnkey delivery including design, manufacturing, installation, and certification testing. Contact us for a tailored proposal.
