Specifications
Certification :
CE RoHS
Type :
RC Filter
EMC Chamber Type :
Semi-EMC Chamber or Full EMC Chamber
Testing standard :
customized
Transfer Function :
Low Pass
RF shielding room Packing :
Wooden carton packing
RF room attenuation :
14KHz-40GHz more than 100dB
RF chamber door size :
Standard size 2.38*1.2M, Customized accepted
Port :
shanghai
Warranty :
1 year
Anechoic chamber Delivery time :
3-5 weeks
Model Number :
customized
Place of Origin :
Jiangsu, China
Brand Name :
haozhuo
Supply Ability :
1 Set/Sets per Month
MOQ :
>=1 Sets
Price :
$15,000.00
Testing service :
Testing service is accept
RF shield room panel :
2mm or 3mm Galvanized steel panel
Description

Up To 40GHz, RF Attenuation 100db Microwave EMC Room

Anechoic Chamber

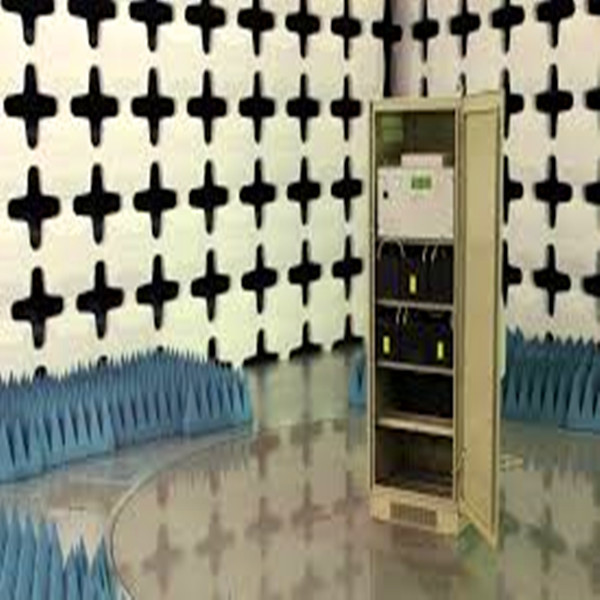

Anechoic Chamber Description

we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.

An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.

our chambers are typically constructed from the modular shielding system.

EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.

Chambers are also designed for EMC testing for testing in accordance with mil and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.

we offers a fully range of anechoic chambers, including:

  • Antenna EMC Testing Chamber
  • Compact Chambers
  • 3 Meter Chambers
  • 5 Meter Chambers
  • 10 Meter Chambers
  • Free Space Chambers
  • MIL-STD Chambers

The types we provided for anechoic chamber room with RF absorber

- Compact chamber

- 3 Meter chamber

- 5 Meter chamber

- 10 Meter chamber

- Free space chamber

- MIL-STD chamber

- Customized Anechoic chamber acceptable

Shielding performance for anechoic chamber room with RF absorber

Magnetic field 14kHz 75dB
100KHz 100dB
200KHz 110dB
Plane wave 50-103MHz 120dB
Microware 1-10GHz 110dB
10-20GHz 100dB
20-40GHz 80dB
