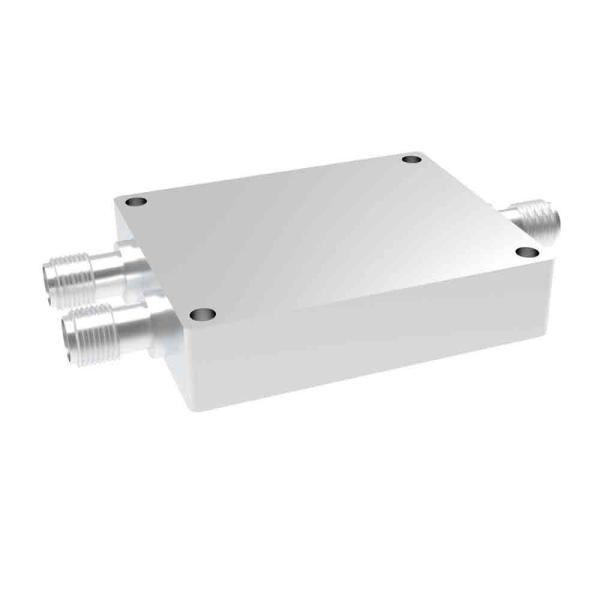

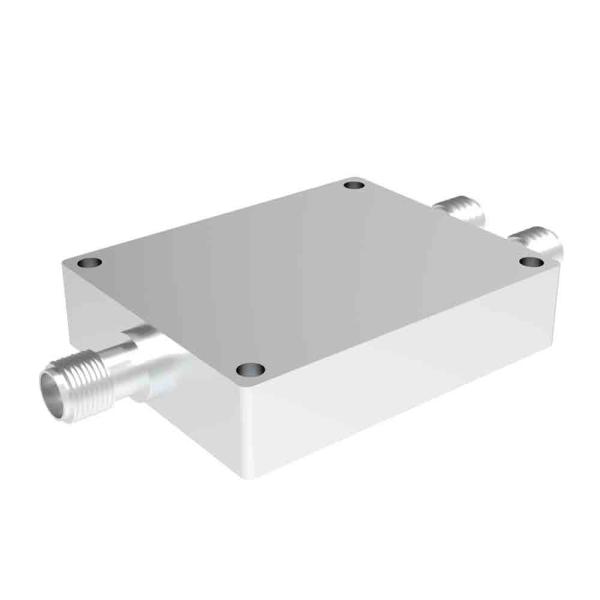

1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
Specifications
Brand Name :
Vinncom
Model Number :
VN-PD-1000-3000-OS2
Certification :
RoHS/ISO9000
Place of Origin :
China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
50pcs per day
Delivery Time :
depends on your quantity
Packaging Details :
foam+box
Operating Frequency ( MHz ) :
1000-3000
Impedance( Ohm ) :
50
Input VSWR :
≤1.20
Output VSWR :
≤1.20
Insertion loss :
≤0.5
Average Power (Watt max.) :
30W max. / 2W max. as combiner
Isolation(dB) :
≥20
Amplitude Balance(dB) :
±0.2
Phase Balance :
±3°
Operating Temperature( ℃ ) :
-35 ~ + 75c
Description

1000-3000MHz 2 Way Power Splitter Wilkinson Power Divider SMA Female Connector

Part Number VN-PD-1000-3000-OS2
Operating Frequency ( MHz ) 1000-3000

Impedance( Ohm )

50
Input VSWR ≤1.20
Output VSWR ≤1.20
Insertion loss ≤0.5
Average Power (Watt max.) 30W max. / 2W max. as combiner

Isolation(dB)

≥20

Amplitude Balance(dB)

±0.2
Phase Balance ±3°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

 SMA Female
Size 43*35*14mm
Weight 48g

Dimension Tolerance(mm)

 ±0.5

Mounting

 4-Φ2.8mm through-hole
1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector1000-3000MHz 2 Way Wilkinson Power Splitter SMA Female Connector
