50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
Specifications
Brand Name :
Vinncom
Model Number :
VN-DL-300W-ONM
Certification :
ISO9000/RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
50pcs per day
Delivery Time :
2 weeks
Packaging Details :
box/carton
Operating Frequency :
DC-18 GHZ
Impedance ( Ohm ) :
50
Application :
Indoor & Outdoor
Degree of Protection :
IP65
Handling Power (Watt, max) :
300W
Interface :
N Male
Description

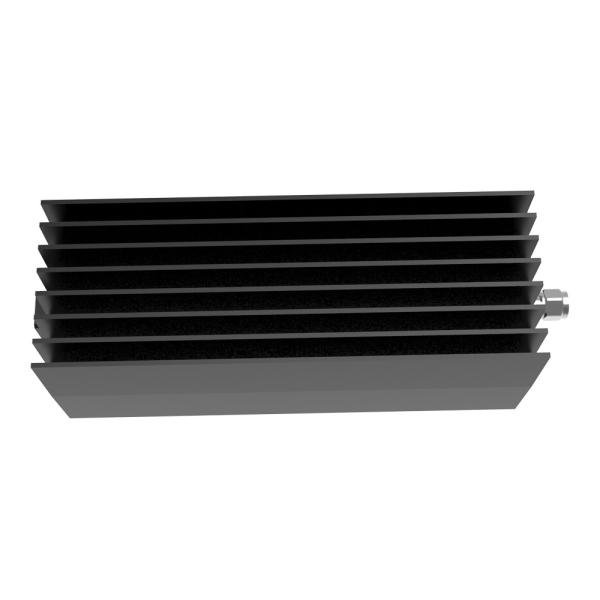

300W 18G RF Dummy Load With N Male Connector

Part Number VN-DL-300W-ONM
Operating Frequency DC-18 GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 300W
Interface N Male
Operating Temperature ( ℃ ) -55~+125℃
VSWR
DC-4GHz ≤1.2
DC-8GHz ≤1.25
DC-12.4GHz ≤1.35
DC-18GHz ≤1.45
Dimension (mm)(excluding connector) 305*120*110mm
Net Weight (g)
Packing Dimensions (mm,L×W×H)
Packing Carton Size (mm,L×W×H)
ROHS Compliance Yes
Revision R1
Date 16-Feb-2021

50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply50OHM 300W 18G N Male Connector RF Dummy Load For Power Supply
