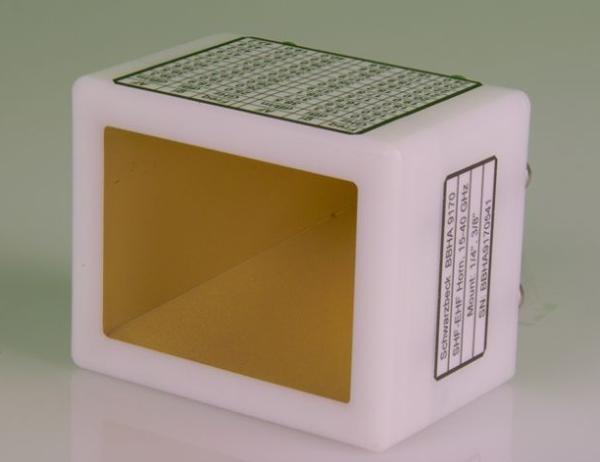

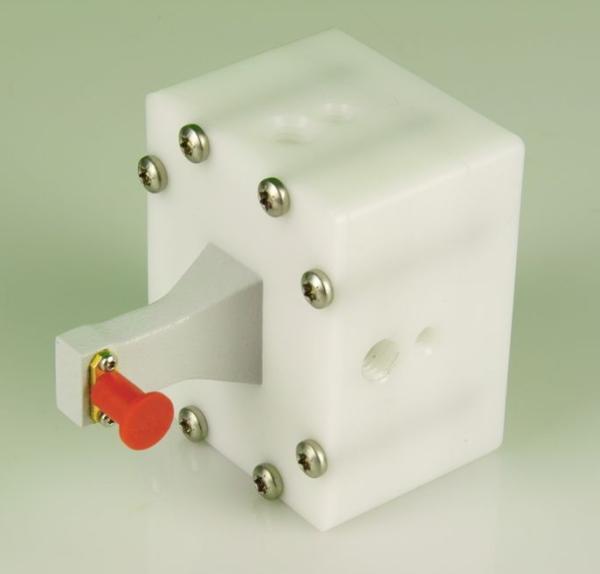

Schwarzbek Broadband Horn Antenna BBHA 9170 26.5 GHz (40 GHz)
Product Overview

Linear polarized Broadband Horn Antenna (Brass with Plastic mounting body) for Receive and Transmit Applications.

The inner conductor (feed pin) is generally located inside the polarisation plane. For horizontal polarisation the inner conductor must be set up horizontally, for vertical polarisation the inner conductor must be set up vertically.

Technical Specifications
Nominal Frequency Range: 15 - 26.5 GHz
Usable Frequency Range: 14 - 40 GHz
Gain: 15-20 dBi
Antenna Factor: 38-45 dB/m
Nominal Impedance: 50 Ω
Max. Input Power: 10 W (cont.)
25 W (peak)
VSWR: typ. 2
3 dB Beamwidth E-plane: 13°-21°
3 dB Beamwidth H-plane: 14°-23°
Material: Aluminium
Dimensions: 75 x 86 x 60 mm
Mounting Threads: 3/8", 1/4"
Weight: 0.3 kg
Connector: SMA-compatible female
Frequency Performance Data
Frequency (GHz) Gain (dBi) Antenna Factor (dB/m)
146.6146.54
1513.9339.81
1615.1839.12
171836.83
1819.1336.19
1917.8337.96
2018.2737.97
2119.0437.62
2219.7637.31
2319.6137.84
2418.6539.17
2518.4739.71
2619.1239.40
2719.4739.38
2820.5638.61
2920.1639.30
3019.9239.85
3119.7640.28
3219.3141.02
3319.5041.09
3419.6341.22
3519.0642.04
3619.1942.16
3719.5142.07
3819.5842.24
3918.5743.47
4019.2643.00
4120.5741.91
4218.4344.26
Radiation Pattern
