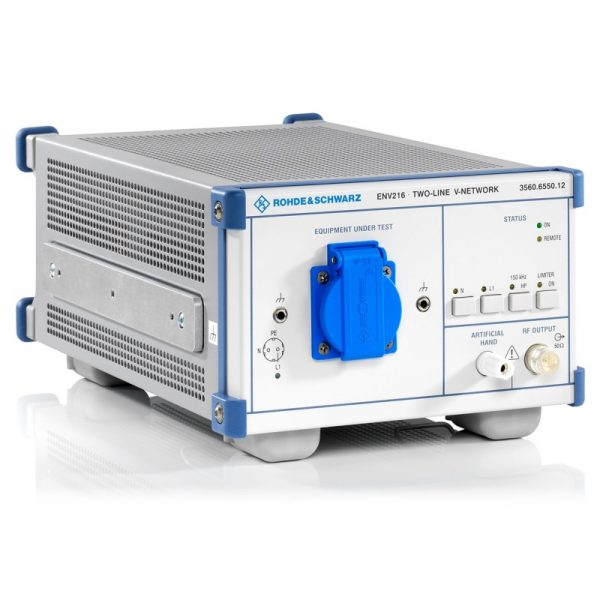

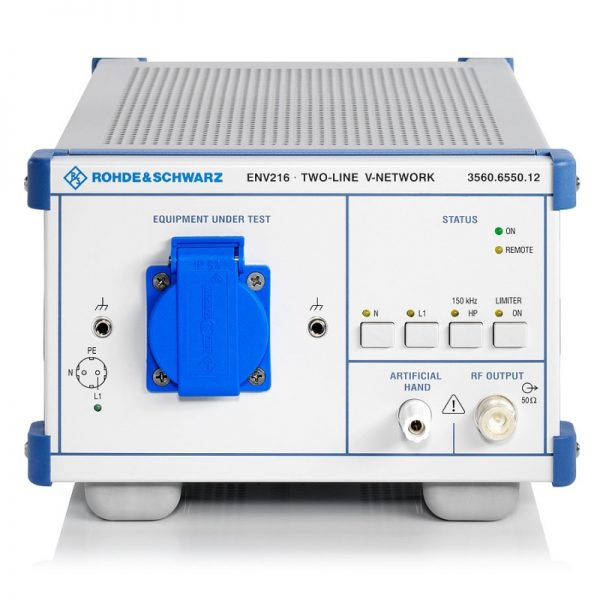

The Rohde & Schwarz ENV216 Two-Line V-Network is designed for disturbance voltage measurements on single-phase equipment under test (EUTs). This compact and lightweight network meets international standards for electromagnetic compatibility testing.

The R&S ENV216 two-line V-network complies with CISPR 16-1-2 and EN 55016-1-2 requirements for V-networks with simulated impedance of (50 μH + 5 Ω) || 50 Ω in the frequency range of 9 kHz to 30 MHz, as well as ANSI C63.4 from 150 kHz to 30 MHz.

• Frequency range: 9 kHz to 30 MHz
• Power-handling capacity up to 16 A, constant current (country-specific)
• Simulated impedance (50 μH + 5 Ω) || 50 Ω per CISPR 16-1-2 Amd. 2:2006
• V-network compliant with CISPR, EN, VDE, ANSI, FCC Part 15 and MIL-STD-461D, E and F
• Calibrated in accordance with CISPR 16-1-2

Air-core design and artificial hand: The R&S ENV216 utilizes air-core inductances and includes an artificial hand for comprehensive testing.

Switch-selectable high pass filter: A 150 kHz highpass filter prevents measuring receiver overdrive from low-frequency spectra of high level.

Built-in 10 dB attenuator pad: Ensures standard impedance regardless of receiver input attenuation settings.

Built-in pulse limiter: Protects receiver input (can be switched off when not required).

Remote control capability: TTL control inputs compatible with Rohde & Schwarz measuring receivers for automated test systems, with optocouplers to prevent external disturbance pickup.

Female connector with protective earth contacts provided for EUT connection. Various country-specific connector systems available. Note: Standard design produces high leakage currents - ensure connection to low-impedance protective earth system. Use isolating transformer in uncertain cases.
