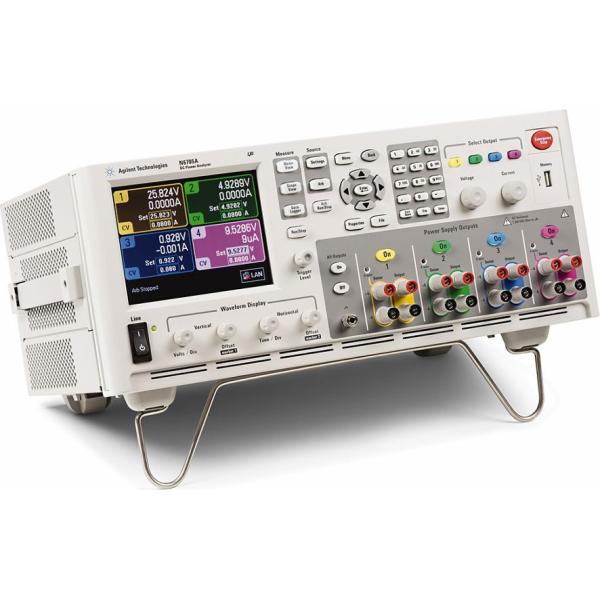

The Keysight Agilent N6705A DC Power Analyzer is an easy-to-use R&D tool designed for sourcing and measuring DC voltage and current into devices under test (DUT). This advanced instrument integrates the capabilities of up to four power supplies, a digital multimeter (DMM), oscilloscope, arbitrary waveform generator, and data logger in a single compact unit.

• Easy-to-use R&D tool for sourcing and measuring DC voltage and current into the DUT
• Integrates capabilities of up to 4 Power Supplies, DMM, Scope, Arb and Data Logger
• Access all capabilities without programming; use front panel controls or 14585A Control and Analysis Software
• Intuitive, dedicated physical controls for common functions
• Large color graphics display for easy viewing of complex data
• Connections and controls color-coded to the display for fast and error-free setup
• Programmable via standard GPIB, LAN and USB; LXI Compliant

• 4-slot mainframe holds up to 600 W of total power and up to 4 modules
• 23 DC power modules to choose from (modules ordered separately)
• Output speeds of up to 160 microseconds per step voltage change
• Arbitrary waveform generator function: Bandwidth up to 4500 Hz, output power up to 300 W
• Scope function digitizes voltage and current at up to 100 kHz, 512 kpts, up to 18 bits
• Data Logger function: Measurement interval from 20 µs to 60 s, max of 500 M readings per data log
• 512 MB of non-volatile data storage for data log, scope traces, instrument settings

The N6705A offers flexible configuration to meet your power sourcing and analysis requirements. This 4-slot mainframe accepts up to 4 DC Power Modules with up to 600 W total output power. The system accepts the same modules as the N6700 Modular Power System, with 21 modules to choose from including basic sources (50 W, 100 W, and 300 W; up to 100 V, up to 20 A), high-performance sources (50 W, 100 W and 300 W; up to 60 V, up to 20 A), and precision sources (50 W and 100 W; up to 50 V, up to 3 A). Each module includes built-in voltmeter, ammeter, scope, arbitrary waveform generator, and data logger functions.
