Specifications
Brand Name :
Rohde and Schwarz
Model Number :
FSWP50
Certification :
ISO:17025 Accredited Calibration
Place of Origin :
Germany
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
Carton
Product name :
Phase Noise Analyser
Frequency :
1MHz to 50 GHz
Form Factor :
Benchtop
Max. analysis bandwidth :
320 MHz
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Rohde and Schwarz FSWP50 Phase Noise Analyser 1 MHz to 50 GHz
Tested in working conditions
Product Overview
The R&S®FSWP phase noise analyzer and VCO tester delivers exceptional sensitivity through extremely low-noise internal sources and cross-correlation technology. It performs rapid phase noise and amplitude noise measurements on highly stable sources, making it ideal for radar applications and beyond.
Available Models
  • R&S FSWP8
  • R&S FSWP26
  • R&S FSWP50
Key Features
  • High-end signal and spectrum analyzer combined with phase noise tester in one instrument
  • Cross-correlation technology for high sensitivity amplitude and phase noise measurements, including on pulsed signals
  • Frequency range from 1 MHz to 50 GHz (extendable to 325 GHz with external mixers)
  • Internal source for measuring residual phase noise on pulsed signals
  • SCPI recorder for simplified code generation
  • Wide dynamic range with low noise level of -156 dBm (1 Hz)
  • Total measurement uncertainty of < 0.2 dB up to 3.6 GHz, < 0.3 dB up to 8 GHz
  • Phase noise of -140 dBc (1 Hz) at 1 GHz (100 kHz offset)
  • 320 MHz signal analysis bandwidth
Optional Measurement Applications
  • Pulse measurements (R&S®FSWP-K6)
  • Vector signal analysis for digitally modulated single carriers (R&S®FSWP-K70)
  • Modulation analysis of analog-modulated single carriers (R&S®FSWP-K7)
  • Noise figure measurements (R&S®FSWP-K30)
Internal DC Source Specifications
Parameter Specification
Supply Voltage 0 V to 16 V
Max. Current Load 2000 mA
Tuning Voltage -10 V to +28 V
Max. Current Load (Tuning) 20 mA
Complete VCO Characterization
At the press of a button, the R&S®FSWP measures all essential VCO parameters:
  • Frequency versus voltage
  • Tuning slope versus voltage
  • Output power versus voltage
  • Current drain versus voltage
Applications
The R&S®FSWP phase noise analyzer and VCO tester is the optimal solution for radar applications and for developing and manufacturing synthesizers, OCXOs, DROs, and VCOs. Its versatile configuration options and low-noise internal local oscillator make it suitable for both commercial applications and high-end requirements.
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we ship orders worldwide.
What delivery methods do you use and what is the delivery time?
We ship via EMS, DHL, FedEx, UPS, TNT with tracking numbers. Standard delivery time is 4-7 business days.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other questions?
You can contact us online or leave us messages below.

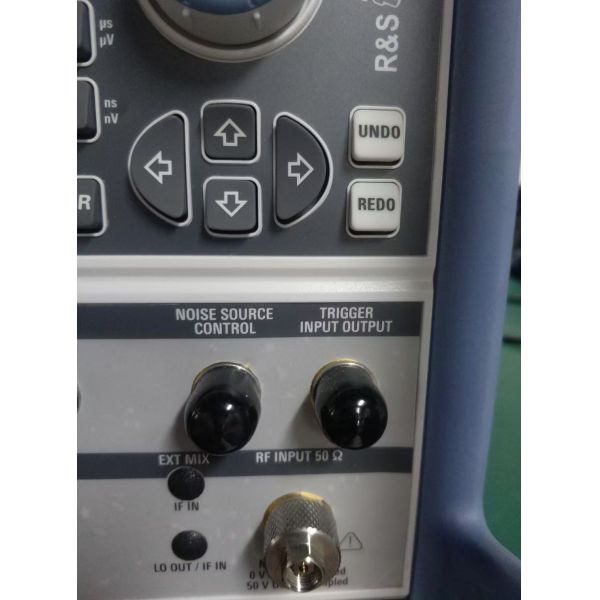

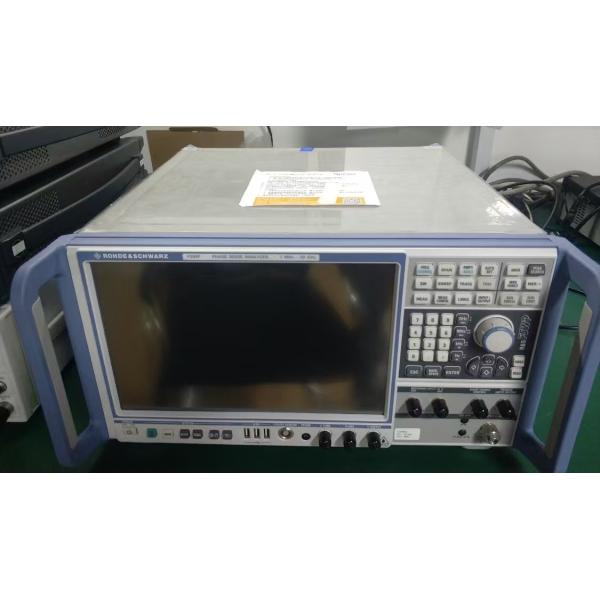

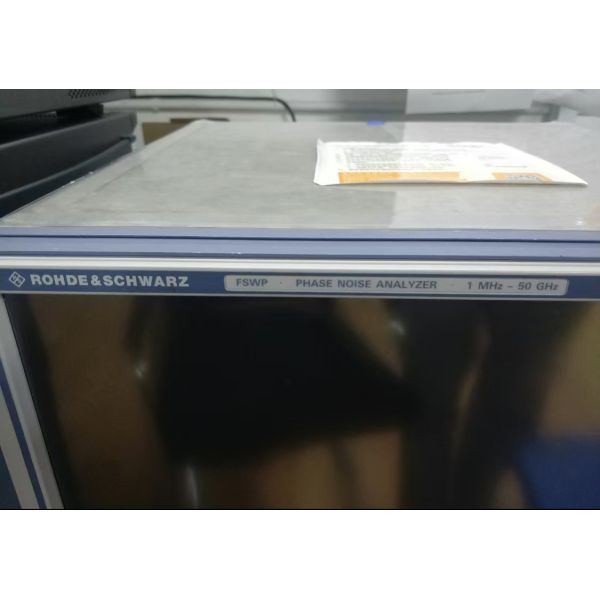

Product Images
