Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Tektronix P6015A High-Voltage Probe with 75 MHz Bandwidth 1000X Attenuation and 20 kV DC Input
Specifications
Brand Name :
Tektronix
Model Number :
P6015A
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Product Name :
High-Voltage Probe
Attenuation: :
1000X
Bandwidth :
dc to 75 MHz
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Form Factor :
Plug-In
Description
Tektronix P6015A High-Voltage Probe 75 MHz bandwidth with 1000X attenuation
Product Overview

Tektronix P6015A High-Voltage Probe with 75 MHz bandwidth and 1000X attenuation is designed for heavy-duty, high-performance measurements of voltages over 2.5 kV. The 75 MHz bandwidth enables capture of fast, high-voltage signals.

This ground-referenced 100 MΩ, 3.0 pF high-voltage probe adds high-voltage measurement capability to oscilloscopes and other measurement devices with input resistance of 1 MΩ and input capacitance of 7 pF to 49 pF.

Key Specifications
Parameter Specification
Input Voltage 20 kV DC, 40 kV peak (100 ms pulse width)
Attenuation 1000X
Loading 100 Megohms
Rise Time 4.0 nS
Bandwidth DC to 75 MHz
Compensation Range 7 to 49 pF
Cable Length 10 feet
Shipping Weight 10 lb

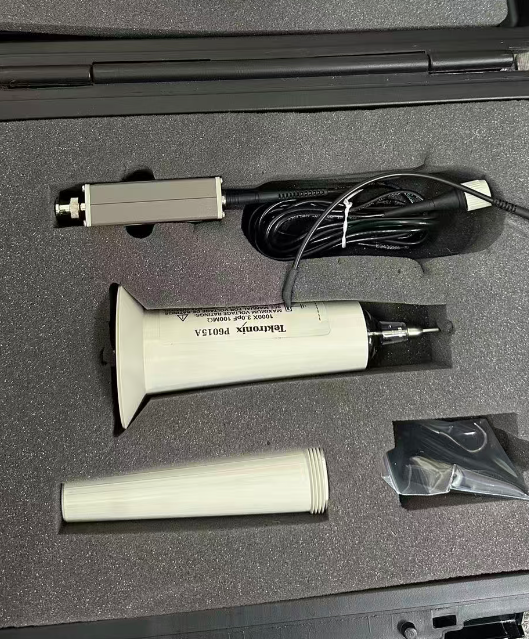

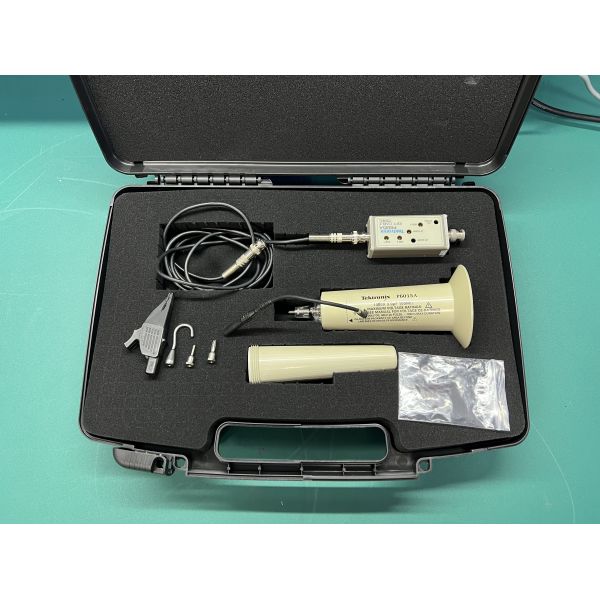

Standard Accessories
  • Ground lead and plug-on clip
  • Hook-shaped probe tip
  • Banana-plug probe tip

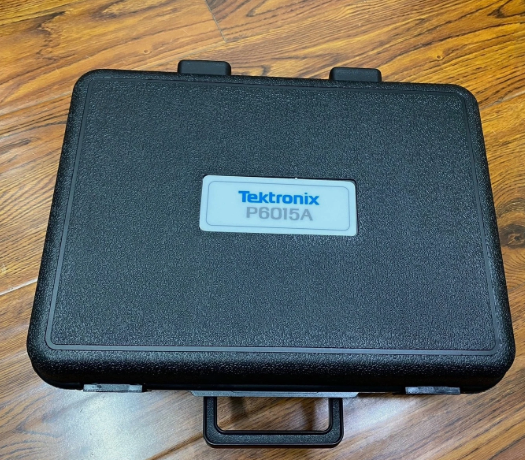

  • Carrying case
  • Instruction manual
Available Options

The standard P6015A has a 10-ft cable without 1000X readout. Available options include:

  • Option 1R: 10-ft cable and 1000X readout
  • Option 25: 25-ft cable, no readout
  • Option 2R: 25-ft cable and 1000X readout
