Specifications
Brand Name :
Ceyear
Model Number :
4025
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Delivery Time :
6 weeks
Packaging Details :
carton
Product Name :
Spectrum Analyzer
Frequency :
9kHz to 6/9/20/26.5/44/54GHz
Condition :
New
Bandwidth :
1Hz~20MHz
Weight :
3KG-3.8KG
Warranty :
3 years
Description
Ceyear 4025 Spectrum Analyzer 9kHz to 6/9/20/26.5/44/54GHz English Version
Product Overview

The Ceyear 4025 spectrum analyzer is a new generation of high-performance handheld spectrum analyzer with a frequency measurement range of 9kHz to 54GHz. Primarily used for installation and commissioning of wireless communication equipment in the field, maintenance, and interference detection, it features compact size, lightweight design, high environmental adaptability, flexible power supply, and easy operation.

Key Features
  • Frequency range coverage: 9 kHz to 54 GHz, with low frequency extension to 5 kHz and full-band pre-amplifier configuration
  • RF performance specifications:
    • DANL: ≤-165dBm/Hz (2MHz~2GHz, Pre-amplifier on, Typ. for 4025A/B/D Model)
    • DANL: ≤-163dBm/Hz (2MHz~2GHz, Pre-amplifier on, Typ. for 4025E/G/K Model)
    • SSB Phase Noise: ≤-113dBc/Hz@100kHz offset@1GHz carrier (Typ.)
    • SSB Phase Noise: ≤-108dBc/Hz@100kHz offset@10GHz carrier (Typ.)
    • TOI: +16dBm@900MHz (Typ.)
    • Total Amplitude Uncertainty: ±1.0dB (Typ.)
  • Fast Sweep Speed:
    • Sweep time < 33ms (20 GHz span, 3 MHz RBW)
    • Sweep time < 4s (1 GHz span, 1 kHz RBW, Fast FFT sweep mode)
Function Modes

The 4025 spectrum analyzer features multiple function modes including Real-time Spectrum Analyzer, Interference Analyzer, Channel Scanner, Field Strength Measurement, USB CW and Peak Power Measurement, AM/FM/PM Analyzer, Location Analyzer. It also includes intelligent measurement functions such as Channel Power, Occupied Bandwidth, Adjacent Channel Power, Spectrum Emission Mask, Carrier-to-Noise Ratio, Harmonic Distortion, Spurious Emission Mask, and Indoor/Outdoor Map Coverage.

Connectivity & Interface

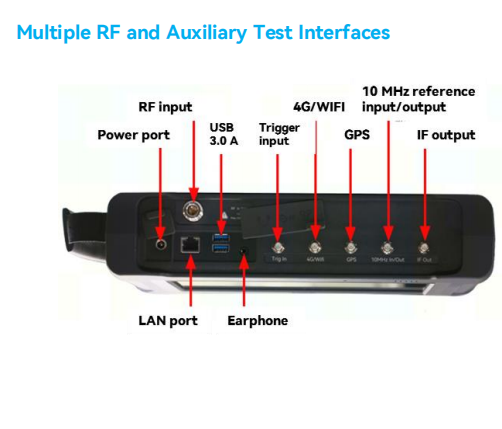

The spectrum analyzer supports LAN, USB, Micro SD card, Wi-Fi wireless communication and other interfaces. The instrument features a 10.1-inch capacitive touch screen that supports marker dragging, frequency and amplitude parameters dragging and scaling.

Applications

Mobile communication, satellite communication, radar detection, microwave communication, on-site debugging and installation and maintenance of electronic reconnaissance and countermeasure equipment, interference source direction finding and map positioning, transient time-varying signal testing.

Order Configuration
Main Unit Models
  • 4025A Spectrum Analyzer (9kHz~6GHz)
  • 4025B Spectrum Analyzer (9kHz~9GHz)
  • 4025D Spectrum Analyzer (9kHz~20GHz)
  • 4025E Spectrum Analyzer (9kHz~26.5GHz)
  • 4025G Spectrum Analyzer (9kHz~44GHz)
  • 4025K Spectrum Analyzer (9kHz~54GHz)
Standard Package
  • Power line assembly: Standard 3-Phase Power Cord
  • Power adapter: 100~240V 50/60Hz input, 19V, 4.7A output
  • Lithium-ion rechargeable battery
  • Product quick user guide
  • Quick start using the instrument
  • Product certificate: Certificate of Conformity
Available Options
Option Description
01Optional Accessories of English Version
03User Manual (English)
05Programming Manual (English)
S01USB CW Power Meter Option
S02USB Peak Power Meter Option
S03Interference Analyzer Option
S04Channel Scanner Option
S05Field Strength Option
S06Outdoor Map Option
S07Indoor Map Option
S08AM/FM/PM Analyzer Option
S09Zero Span IF Output
S10Gated Sweep Option
S11Location Analyzer Option
S1240MHz Bandwidth Real-time Spectrum Analyzer Option
S13List Sweep Option
S14IQ Analyzer Option
S15GSM/EDGE Measurement Option
S16LTE Analyzer Option
S175G NR Option
Ceyear 4025 Handheld Spectrum Analyzer with 9kHz to 54GHz Range, 10.1-inch Capacitive Touch Screen, and Fast Sweep Speed Ceyear 4025 Handheld Spectrum Analyzer with 9kHz to 54GHz Range, 10.1-inch Capacitive Touch Screen, and Fast Sweep Speed
Frequently Asked Questions
1. Can you ship order to Canada or Australia?
Yes, we can. We send orders worldwide.
2. What delivery method do you use and delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
