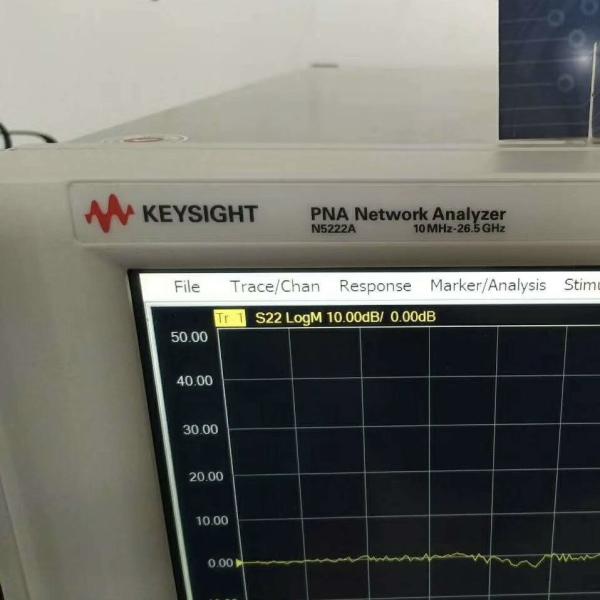

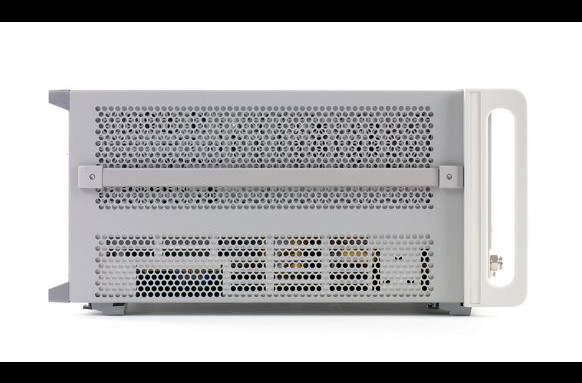

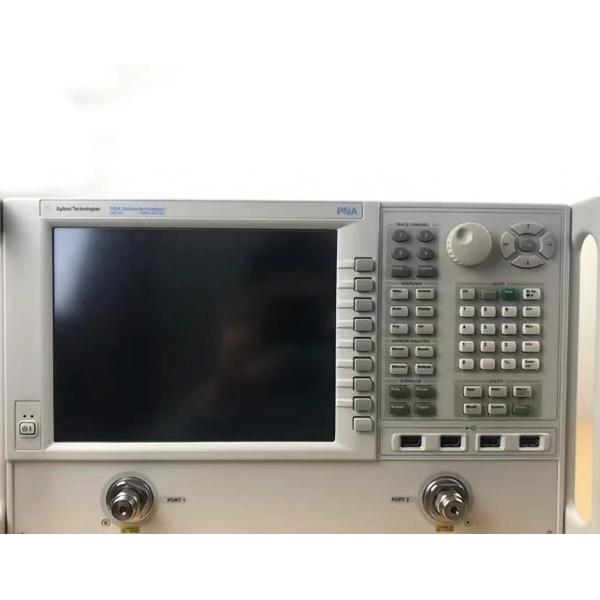

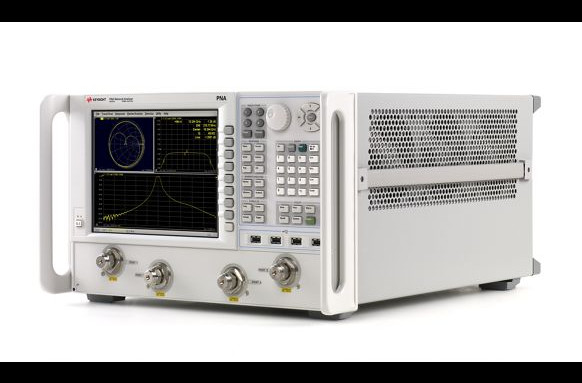

N5222A Portable PNA Microwave Network Analyzer with 10MHz-26.5GHz Frequency Range and 132 DB Dynamic Range
N5222A Portable PNA Microwave Network Analyzer with 10MHz-26.5GHz Frequency Range and 132 DB Dynamic Range
N5222A Portable PNA Microwave Network Analyzer with 10MHz-26.5GHz Frequency Range and 132 DB Dynamic Range
N5222A Portable PNA Microwave Network Analyzer with 10MHz-26.5GHz Frequency Range and 132 DB Dynamic Range
N5222A Portable PNA Microwave Network Analyzer with 10MHz-26.5GHz Frequency Range and 132 DB Dynamic Range
N5222A Portable PNA Microwave Network Analyzer with 10MHz-26.5GHz Frequency Range and 132 DB Dynamic Range
Specifications
Brand Name :
Keysight (Agilent)
Model Number :
N5222A
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T，Western Union
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Dynamic Range :
Up To 132 DB
Output Power :
Up To +13 DBm
Power Range :
Up To +38 DBm
Number of Channels :
200
Measurement Speed :
Up To 500,000 Points/s
Sweep Time :
Up To 0.01 Ms
Display Resolution :
Up To 0.001 DB
Connector Type :
SMA, N, 2.4 Mm, 3.5 Mm
Description
Test Equipment N5222A PNA Microwave Or Vector Network Analyzer 10MHz-26.5GHz Portable
Product Overview
The N5222A is Agilent's 26.5 GHz network analyzer, a powerful instrument that measures the linear characteristics of RF devices with unmatched accuracy. The PNA Series is the highest-performing microwave network analyzer in the industry for passive and active device test.
Key Features & Specifications
  • 10 MHz to 26.5 GHz frequency range
  • 2-ports with single source or 4-ports with two built-in sources
  • 127 dB system and 132 dB receiver dynamic range
  • 32,001 points, 200 channels, 15 MHz IF bandwidth
  • High output power (+13 dBm) and wide power sweep range (38 dB)
  • Best dynamic accuracy: 0.1 dB compression with +12 dBm input power
  • Low noise floor of -114 dBm at 10 Hz IF bandwidth
Performance Benefits
The N5222A offers a high power source and the best linear receiver, enabling the most accurate S-parameter measurements with the widest power range on the market. Transform deeper understanding into better designs with the PNA's outstanding measurement integrity.
Applications
  • S-parameters (CW and pulsed)
  • Noise figure
  • Gain compression
  • Intermodulation and harmonic distortion
  • Conversion gain/loss
  • True-differential stimulus
  • Millimeter-wave
  • Material measurements
  • Signal integrity
  • Antenna test
Available Options
Option Code Description
007Automatic Fixture Removal
008Pulsed-RF Measurements
010Time Domain
015Dynamic Uncertainty for S-Parameter Measurements
020Add IF inputs
021Add pulse modulator to internal first source
022Add pulse modulator to internal second source
025Add four internal pulse generators
028Noise figure measurements using standard receivers
080Frequency-Offset (for use with mixers, converters and amplifiers)
082Scalar calibrated converter measurements
083Vector and scalar calibrated converter measurements
084Embedded LO measurements
086Gain compression application
087Intermodulation distortion measurements
088Source phase control
089Differential and I/Q devices application
090Spectrum Analyzer
093Extended Spectrum Analyzer to 110 GHz
094Extended Spectrum Analyzer above 110 GHz
118Fast CW Mode
2002 ports, single source, base hardware configuration
2012-Ports, Single Source with Configurable Test Set
2102 ports, single source, with metrology configuration
2172-Ports, Single Source, Configurable Test Set with Extended Power Range
2192-Ports, Single Source, Configurable Test Set, Extended Power Range, Bias-Tees
301Application for use with standard CalPods
302Application for use with temperature-characterized CalPods
4004-Ports, Dual-Source, Base Configuration
4014-Ports, Dual-Source with Configurable Test Set
4174-Ports, Dual-Source, Configurable Test Set with Extended Power Range
4194-Ports, Dual-Source, Configurable Test Set, Bias Tees with Extended Power Range
460Integrated true-mode stimulus application
551N-port calibrated measurements
897Built-in performance test software for inclusive calibration, perpetual license
898Built-in performance test software for standards compliant calibration, perpetual license
W7XWindows 7 operating system
WXPWindows XP operating system
What's Included
  • Plug, hole, bottom foot
  • Installation and quick start guide
  • Safety manual
  • Calibration certificate
  • 3 Inductors (ferrite cores)
  • Wrench
  • Cable tie
  • Optical Mouse
Support & Services
  • One-stop service from manufacture to shipping
  • 24-hour response to inquiries
  • Experienced English-speaking support staff
  • Distributor support for unique designs
  • Protection of sales area and private information
  • 30-day warranty
Frequently Asked Questions
  • Can you ship orders to Canada or Australia?
    Yes, we ship worldwide.
  • What delivery methods do you use and what is the delivery time?
    We ship via EMS, DHL, FedEx, UPS, TNT with tracking. Delivery time is typically 4-7 business days.
  • What is your payment term?
    100% T/T payment before shipment.
  • How can I ask additional questions?
    Contact us online or leave messages below.
