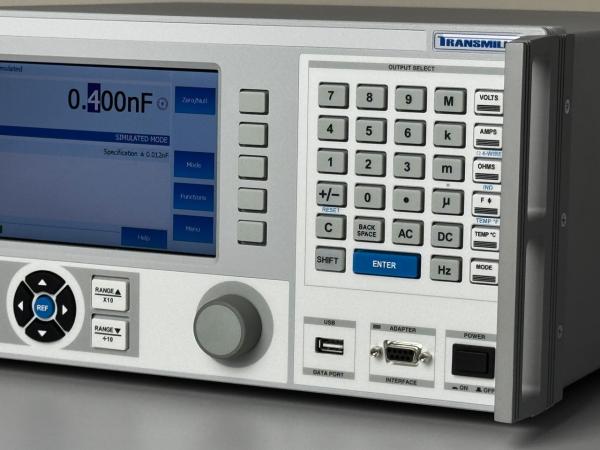

Transmille 4610A Advanced Multiproduct Calibrator with 1.2MHz Frequency 30A Current and 7 Touch Screen
Transmille 4610A Advanced Multiproduct Calibrator with 1.2MHz Frequency 30A Current and 7 Touch Screen
Transmille 4610A Advanced Multiproduct Calibrator with 1.2MHz Frequency 30A Current and 7 Touch Screen
Transmille 4610A Advanced Multiproduct Calibrator with 1.2MHz Frequency 30A Current and 7 Touch Screen
Transmille 4610A Advanced Multiproduct Calibrator with 1.2MHz Frequency 30A Current and 7 Touch Screen
Transmille 4610A Advanced Multiproduct Calibrator with 1.2MHz Frequency 30A Current and 7 Touch Screen
Specifications
Brand Name :
Transmille
Model Number :
4610A
Certification :
ISO 17025
Place of Origin :
UK
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
carton
Product name :
Advanced Multiproduct Calibrator
Maximum Resistance :
1 GOhms, 100 MOhms
Maximum Current :
10A, 22A, 30A
Format :
Desktop
Scope Options :
< 1.1 GHz, < 3 GHz, < 600 MHz
Power Output :
Available
Condition :
Brand New
Warranty :
3 years
Description
Transmille 4610A Advanced Multiproduct Calibrator Frequency to 1.2MHz
Product Overview

The Transmille 4610A Advanced Multiproduct Calibrator is designed for laboratories, manufacturers, and design facilities requiring a wide range of outputs with accuracies up to 8ppm. Building on the trusted reliability of the 4000 series, this model features an updated user interface accessed through a large 7" capacitive touch screen, enabling advanced functionality including inbuilt connection prompts to minimize errors.

The 4610A Series comes standard with both fully variable and passive resistance and capacitance outputs for unparalleled flexibility. Variable outputs allow simulation of non-decade values, while passive outputs enable calibration of high-accuracy measurement devices.

Key Features
  • AC & DC Voltage to 1000V
  • AC & DC Current to 30A
  • 2/4 wire Decade and Variable Resistance to 1G Ohm
  • Decade and Variable Capacitance from 300pF to 100mF
  • Frequency to 1.2MHz
  • Integrated Thermocouple Source & Measure
  • GPIB (IEEE-488) & USB interface standard
  • 7″ full color touch screen
  • Power (Simultaneous Voltage & Current) Options, including harmonic generation
  • High Bandwidth Oscilloscope Options Available (up to 3GHz)
Technical Specifications
Parameter Specification
DC Voltage 0 - ±1025V
DC Current 0 - 30A
AC Voltage 2mV - 1000V, 10Hz - 1MHz
AC Current 20uA - 30A, 10Hz - 30kHz
Resistance (Passive) 0 Ohms - 1 GOhms
Resistance (Variable) 0 Ohms - 1 GOhm (2 Wire, 2 Wire Compensated & 4 Wire)
Capacitance (Passive) 1nF - 10uF
Capacitance (Variable) 300pF - 100mF
Frequency 10Hz - 1.2MHz
Temperature (Thermocouple) J / K / T / R / S / B / U / N / E / L / U / C / 10uV°C
Temperature (PRT / RTD) 2 Wire, 2 Wire compensated & 4 Wire output, selectable R0
Power (Simultaneous Voltage & Current) Options available, including Harmonic Generation
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other questions?
You can contact us online or leave us messages below.
