Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Used Tektronix 4 Series MSO44 Mixed Signal Oscilloscope with 1 GHz Bandwidth 4 FlexChannel Inputs and High-Definition Display
Specifications
Brand Name :
Tektronix
Model Number :
MSO44
Certification :
ISO17025
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
High-Definition Oscilloscope
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Calibration :
Contact us
Bandwidth :
1 GHz
Channels :
4 Ch
Sample Rate :
100 GS/s
Type :
Mixed Signal (MSO)
Maximum digital channels (with optional logic probes) :
32
FlexChannel inputs :
4 Ch
Description
Used Tektronix 4 Series MSO Mixed Signal Oscilloscope MSO44 4-BW-1000
This used second hand Tektronix 4 Series MSO Mixed Signal Oscilloscope MSO44 4-BW-1000 features 4 channels with 1GHz bandwidth. The unit has been tested and is in good working condition.
Product Overview
The MSO44 4-BW-1000 is a 4 series mixed signal oscilloscope that provides enhanced visibility into complex systems. It features four channels with a 13.3-inch high-definition (1,920 x 1,080) display and an intuitive user interface. Ideal for applications including embedded systems, three-phase power electronics, automotive electronics, power supply design, and DC-to-DC power converters.
FlexChannel technology enables each channel input to function as a single analog channel, eight digital logic inputs (with optional TLP058 logic probe), or simultaneous analog and spectrum views with independent acquisition controls for each domain.
Featuring an innovative pinch-swipe-zoom touchscreen interface, high-definition display, and 4 FlexChannel inputs that measure one analog or eight digital signals per channel, the 4 Series MSO delivers exceptional performance and user experience.
Key Specifications
Input Channels
  • 4 FlexChannel inputs
  • Each FlexChannel provides: One analog signal that can be displayed as waveform view, spectrum view, or both simultaneously
  • Eight digital logic inputs with TLP058 logic probe
Performance Specifications
  • Bandwidth (all analog channels): 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable)
  • Sample rate (all analog/digital channels): Real-time: 6.25 GS/s
  • Record length (all analog/digital channels): 31.25 Mpoints standard (62.5 Mpoints optional upgrade)
  • Waveform capture rate: >500,000 waveforms/s
  • Vertical resolution: 12-bit ADC, up to 16-bits in High Res mode
Standard Features
  • Standard trigger types: Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
  • Standard analysis: Cursors, 36 measurements, Spectrum View, FastFrame segmented memory, Plots, Math functions, Search
  • Display: 13.3 inch TFT color, High Definition (1,920 x 1,080) resolution, Capacitive multi-touch touchscreen
  • Connectivity: USB 2.0 Host, USB 2.0 Device (5 ports), LAN, HDMI
Optional Features
  • Advanced Spectrum View
  • RF vs. Time traces, triggers, Spectrograms, and IQ capture
  • Mask/Limit Testing
  • Advanced Power Measurements and Analysis
  • Protocol trigger, decode, and analysis for multiple standards
  • Arbitrary/Function Generator (upgradable)
  • Digital voltmeter (free with product registration)
  • Trigger frequency counter (free with product registration)
Model Comparison
Oscilloscope MSO44 MSO46
FlexChannel inputs 4 6
Maximum analog channels 4 6
Maximum digital channels (with optional logic probes) 32 48
Bandwidth (calculated rise time) 200 MHz (2.3 ns), 350 MHz (1.3 ns), 500 MHz (900 ps), 1 GHz (450 ps), 1.5 GHz (333 ps)
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.

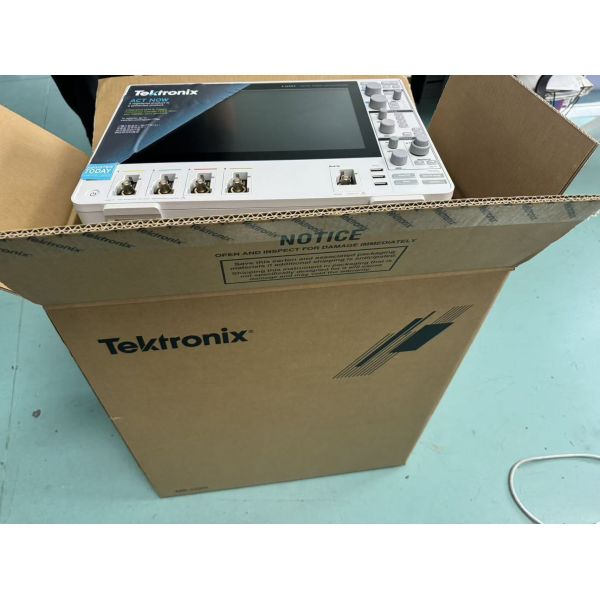

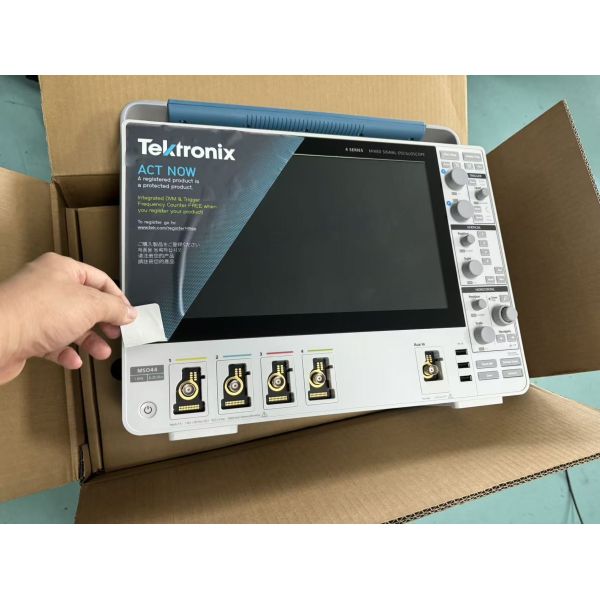

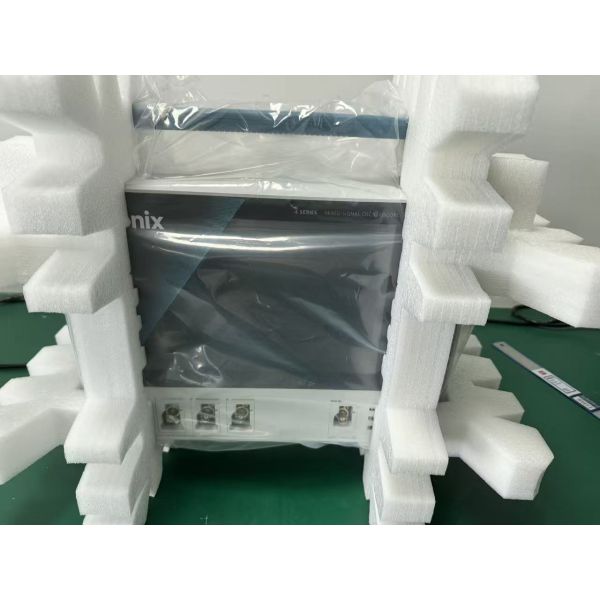

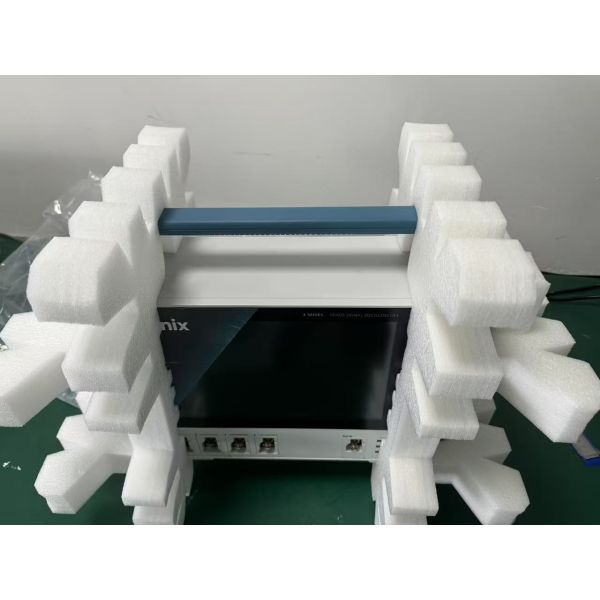

Product Images
