Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Specifications
Brand Name :
Agilent
Model Number :
DSO90604A
Certification :
CNAS
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
Carton
Product name :
Oscilloscope
Bandwidth :
6 GHz
Channels :
4 Ch
Sample Rate :
20 GSa/s
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope

The Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope offers 6 GHz bandwidth with 4 analog channels, calibrated by ISO17025 accredited laboratories. This unit has been tested and verified to be in full working condition.

Why Choose Keysight

As an engineer, you face demanding challenges to exceed customer expectations. With today's high-speed technologies, deploying successful designs becomes increasingly difficult as data signal eye openings shrink and oscilloscope measurement errors become less tolerable. Keysight is committed to providing superior measurement solutions for these critical challenges.

The Keysight Infiniium 90000 Series oscilloscopes are engineered to deliver unmatched real-time measurement accuracy, enabling you to:

  • Allocate your jitter budget to your design, not your oscilloscope
  • Pass demanding compliance tests more efficiently
  • Debug complex designs with confidence
Key Features
  • 6 GHz bandwidth (upgradeable to 13 GHz)
  • 4 analog channels
  • Extended signal capture with up to 1 Gpts memory and 20 GSa/s sample rate
  • Superior measurement accuracy with 0.98 mVrms noise floor at 50 mV/div and deep jitter analysis capability
  • Hardware-accelerated de-embedding for probe, fixture, and channel effect compensation
  • Enhanced usability with software applications for compliance, debug, and analysis
  • Measurement automation through user-defined applications
90000A Series Infiniium Oscilloscopes Specifications
Model Real-time Bandwidth on 4 Ch Maximum Sampling Rate on 4 Ch Standard Memory Maximum Memory Noise Floor at 50 mV/div
91304A 13 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.73 mVrms
91204A 12 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.45 mVrms
90804A 8 GHz 40 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 1.15 mVrms
90404A 6 GHz 20 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 0.98 mVrms
90404A 4 GHz 20 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 0.79 mVrms
90254A 2.5 GHz 20 GSa/s on 4 ch 20 Mpts on 4 ch 1 Gpts on 4 ch 0.64 mVrms
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.

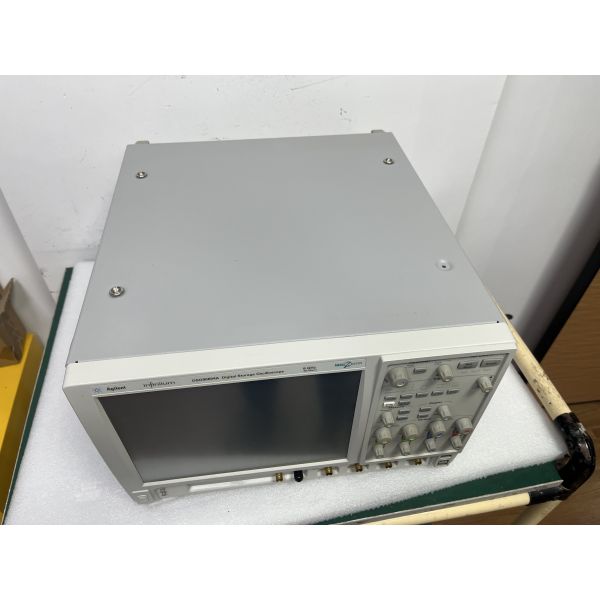

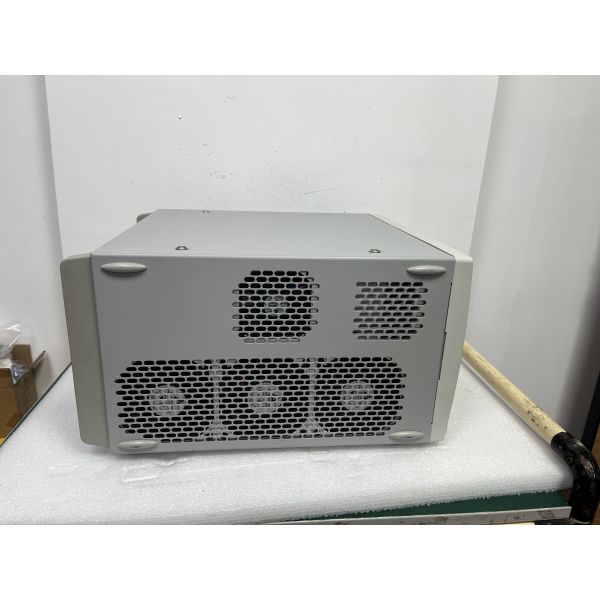

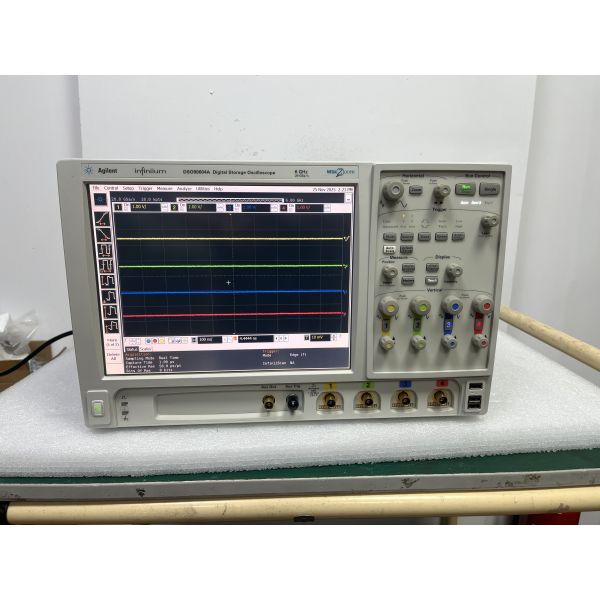

Product Images
Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate Keysight Agilent DSO90604A Infiniium High Performance Oscilloscope with 6 GHz Bandwidth 4 Analog Channels and 20 GSa/s Sample Rate
Note: This product has been calibrated by ISO17025 accredited laboratories and tested to ensure full working condition.
