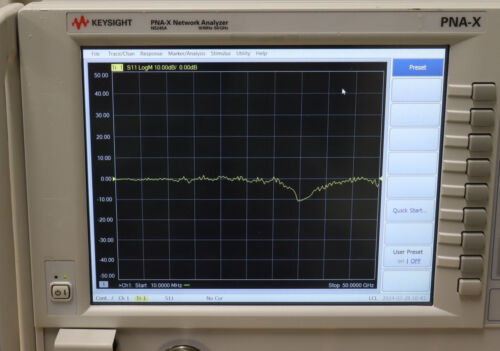

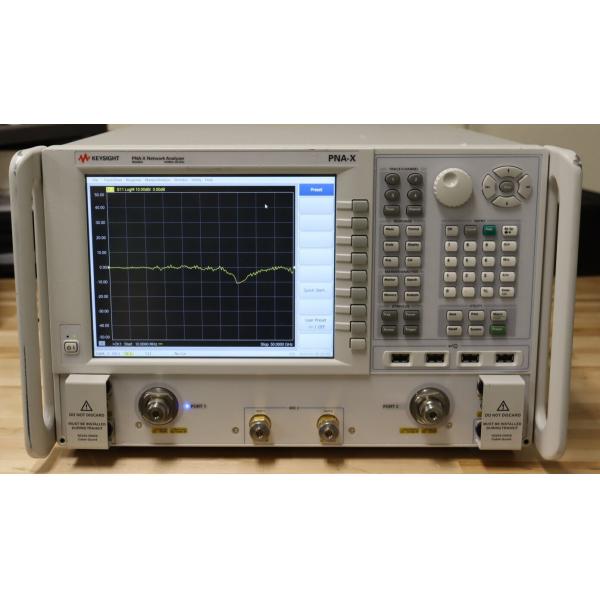

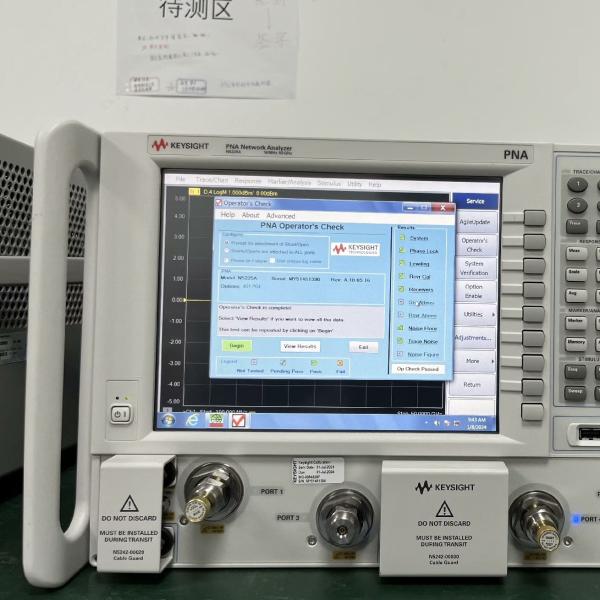

Keysight N5245A PNA-X Vector Network Analyzer 10MHz to 50GHz with 2-Ports and 126 dB Dynamic Range
Keysight N5245A PNA-X Vector Network Analyzer 10MHz to 50GHz with 2-Ports and 126 dB Dynamic Range
Keysight N5245A PNA-X Vector Network Analyzer 10MHz to 50GHz with 2-Ports and 126 dB Dynamic Range
Keysight N5245A PNA-X Vector Network Analyzer 10MHz to 50GHz with 2-Ports and 126 dB Dynamic Range
Keysight N5245A PNA-X Vector Network Analyzer 10MHz to 50GHz with 2-Ports and 126 dB Dynamic Range
Keysight N5245A PNA-X Vector Network Analyzer 10MHz to 50GHz with 2-Ports and 126 dB Dynamic Range
Specifications
Brand Name :
Keysight (Agilent)
Model Number :
N5245A
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
PNA-X Vector Analyzer
Frequency :
10MHz to 50 GHz
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Type :
Vector
Description
Keysight/Agilent N245A Portable PNA-X Vector Microwave Analyzer
Keysight Agilent N5245A PNA-X Vector Network Analyzer

The PNA-X network analyzer represents the world's most integrated and flexible single-connection microwave test engine for active devices such as amplifiers, mixers, and frequency converters. Choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz.

Key Features & Specifications
  • 10 MHz to 50 GHz frequency range
  • 2-ports with two built-in sources
  • 126 dB system and 129 dB receiver dynamic range
  • 32 channels, 5 MHz bandwidth
  • High output power (+16 dBm) with low harmonics (-60 dBc)
  • Wide power sweep range (41 dB)
  • Best dynamic accuracy: 0.1 dB compression with +15 dBm input power
  • Low noise floor of -111 dBm at 10 Hz IF bandwidth
Installed Options
Option Code Description
010 Time-domain measurements
029 Fully-corrected noise-figure measurements
080 Frequency offset measurements
083 Vector and scalar calibrated converter measurements
086 Gain compression application
087 Intermodulation distortion measurements
088 Source phase control
090 Spectrum Analyzer to 50 GHz
200 2 ports, single source
219 Add extended power range and bias-tees to 2 port analyzer
224 Add internal second source, combiner and mechanical switches to 2-port analyzer
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other questions?
You can contact us online or leave us messages below.
