Specifications
Brand Name :
Rohde & Schwarz
Model Number :
SGT100A
Certification :
ISO17025
Place of Origin :
Germany
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T，Western Union
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Brand :
Rohde & Schwarz
Model :
SGT100A
Product Type :
SGMA Vector RF Source / Vector Signal Generator
Frequency Range :
1 MHz to 6 GHz (max. configuration)
Modulation Bandwidth :
Up to 240 MHz (internal), 1 GHz (external)
Maximum Output Power :
Up to +17 dBm (typical at 1 GHz)
Description
R&S SGT100A RF Vector Signal Generator 100KHz-6GHz I/Q Modulation Bandwidth
Product Overview

The R&S SGT100A RF Vector Signal Generator is a high-performance instrument designed for production and testing applications, featuring exceptional speed and precision.

Key Features
  • Fastest vector signal generator with frequency and level switchover times of 240 µs (typ.) for optimized throughput in production
  • Smallest standalone vector signal generator up to 6 GHz with integrated baseband generator (1 HU, ½ 19")
  • Integrated baseband generator with I/Q modulation bandwidth of up to 240 MHz (in RF) supporting all advanced digital standards, including IEEE802.11ac
  • Excellent RF performance for EVM and ACLR
  • Easy signal generation for digital standards such as 5G and WLAN using the R&S®WinIQSIM2 simulation software
  • Ideal enhancement for the R&S®SMW200A in MIMO applications with more than two receiving antennas
Benefits and Key Features
Optimized for Production Use
  • Smallest standalone vector signal generator with integrated baseband generator
  • Fast frequency and level switchover to optimize production throughput
  • High output level to compensate for losses in the test system
  • Low power consumption for reduced heat dissipation and simplified thermal management
Superior Signal Performance
  • Excellent modulation accuracy for large test margins
  • Outstanding frequency response due to integrated baseband generator
  • Low phase noise of -133 dBc (typ.) at 1 GHz and 10 kHz offset (1 Hz measurement bandwidth)
  • Excellent level repeatability and level linearity for outstanding reproducibility of measurements
  • Optional high-performance oven-controlled crystal oscillator for easy integration into test system
  • Ideal enhancement for the R&S®SMW200A in MIMO applications with more than two antennas
  • Optional analog I/Q outputs enabling full-featured envelope tracking testing capabilities
Low Cost of Ownership
  • Low acquisition costs
  • Simple modular design for easy servicing
  • Easily upgradeable at customer premises
  • Waveform package as ideal production solution
  • Many remote control interfaces for easy integration into the test setup
Application Overview
Feature Standalone Vector Signal Generator Extension for R&S®SMW200A
Frequency Range 1 MHz to 3 GHz
1 MHz to 6 GHz (with R&S®SGT-KB106)		 Additional RF source
ARB Baseband Generator 32 Msample memory and 60 MHz RF bandwidth (with R&S®SGT-K510) n.a.; digital I/Q data is transferred from R&S®SMW200A (requires R&S®SGT-K18 digital interface option)
Memory up to 1 Gsample (with R&S®SGT-K511 and R&S®SGT-K512) n.a.
RF Bandwidth up to 240 MHz (with R&S®SGT-K521, R&S®SGT-K522 and R&S®SGT-K523) up to 160 MHz
Analog I/Q Outputs available with R&S®SGT-K16 n.a.
Product Images

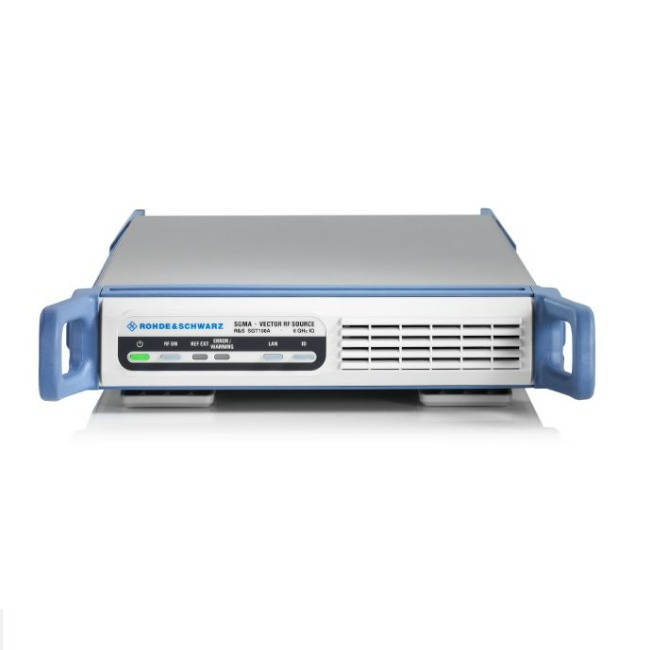

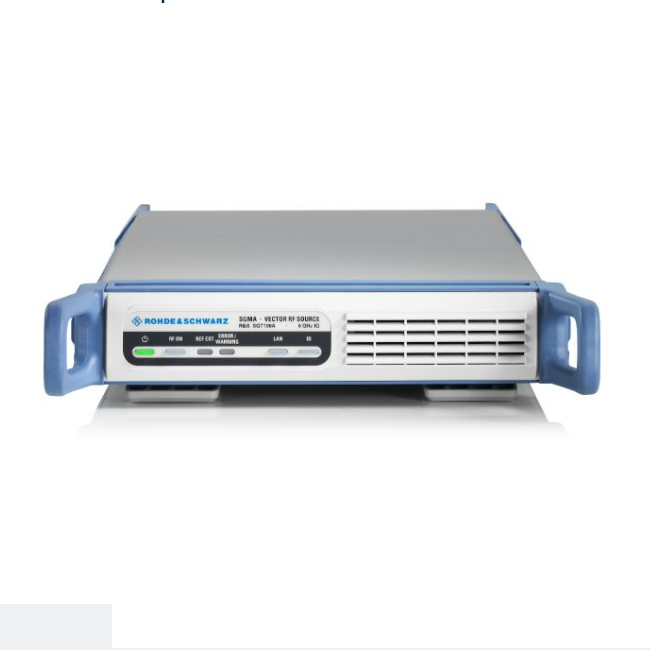

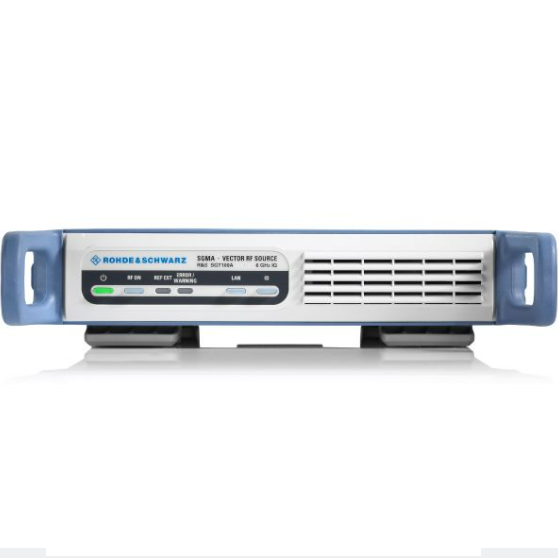

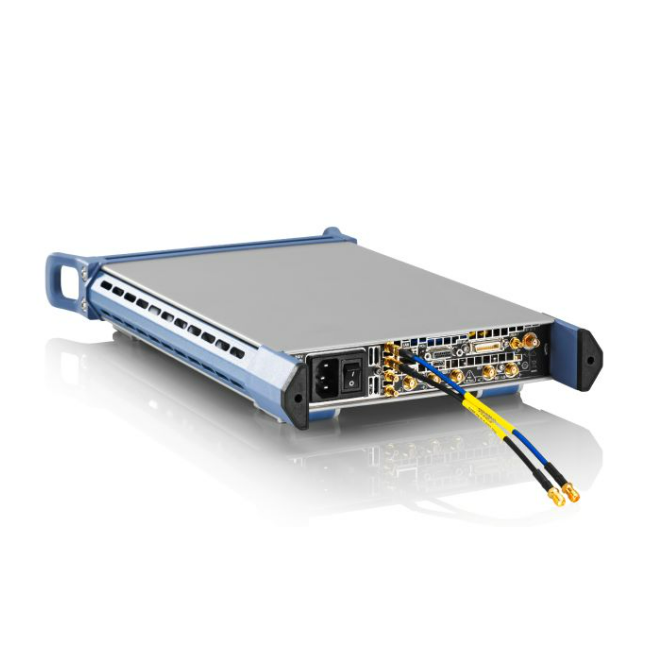

R&S SGT100A Vector Signal Generator with 100KHz-6GHz Frequency Range 240 MHz Modulation Bandwidth and Integrated Baseband Generator R&S SGT100A Vector Signal Generator with 100KHz-6GHz Frequency Range 240 MHz Modulation Bandwidth and Integrated Baseband Generator R&S SGT100A Vector Signal Generator with 100KHz-6GHz Frequency Range 240 MHz Modulation Bandwidth and Integrated Baseband Generator R&S SGT100A Vector Signal Generator with 100KHz-6GHz Frequency Range 240 MHz Modulation Bandwidth and Integrated Baseband Generator
