Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
Specifications
Brand Name :
Agilent
Model Number :
85092C
Certification :
ISO17025
Place of Origin :
USA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Product Name :
Calibration ECal Modules
Frequency range :
300 kHz to 9 GHz
Impedance :
50 Ohms
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Ports :
2 Ports
Description
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz Type N 50 Ohm 2 Port for Vector Network Analyzers

The Keysight 85092C RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Keysight PNA and ENA series of network analyzers control the module directly via the USB interface.

ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical calibration kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.

Key Features
  • 300 kHz to 9 GHz frequency range
  • Fast full two-port calibration with a single connection
  • Simple non-insertable device calibration
  • NIST traceable accurate calibrations
  • Reduced connector wear
  • USB interface for direct control with PNA and ENA series of network analyzers
  • Reliable solid-state switching
Available Options
Option Code Description
00F Replace f-m connectors on ECal module(s) with f-f connectors
00M Replace f-m connectors on ECal module(s) with m-m connectors
00A Adds male-to-male and female-to-female adapters (also adds a 5/16" 90 N-cm (8 in-lb) torque wrench to 3.5 mm modules)
M0F f-m connectors on ECal module(s)
010 Four female, 3.5 mm connectors
020 Four female, Type-N 50 ohm connectors
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
T/T payment before shipment.
How can I ask any other questions?
You can contact us online or leave us messages below.

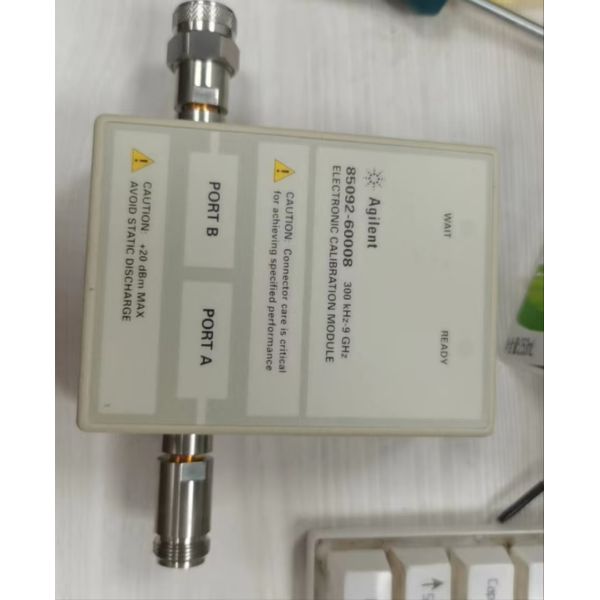

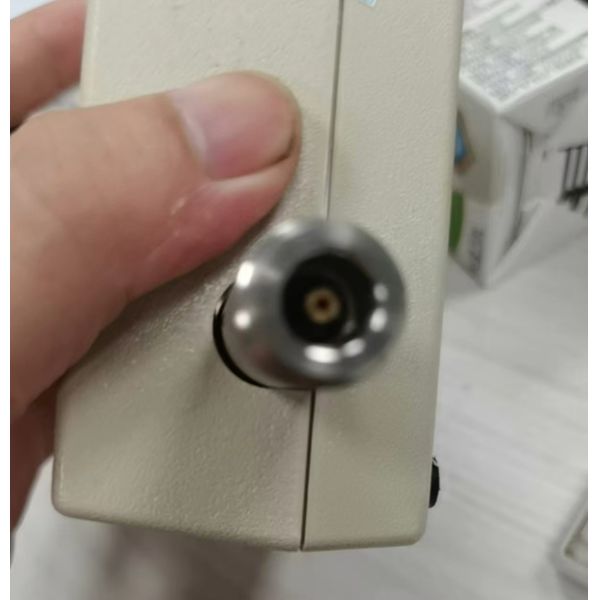

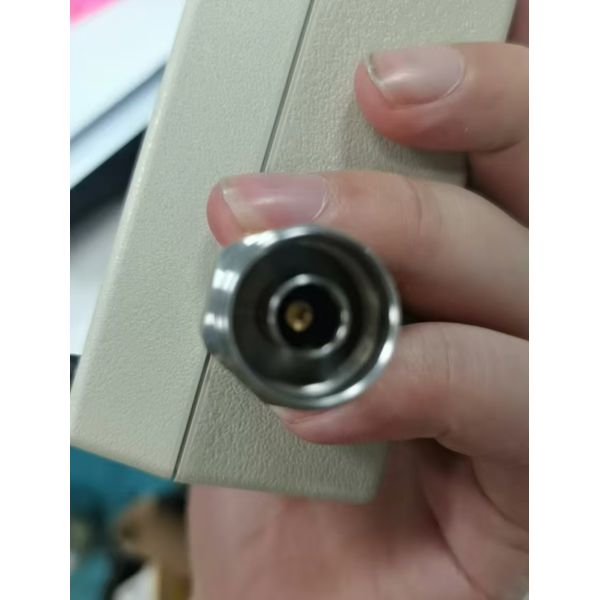

Product Images
Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers Keysight Agilent 85092C RF Electronic Calibration Module ECal 300 kHz to 9 GHz 50 Ohms 2 Ports for Vector Network Analyzers
