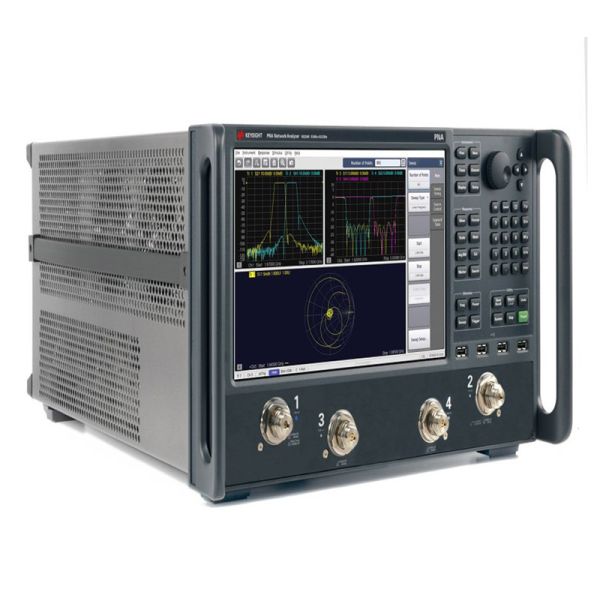

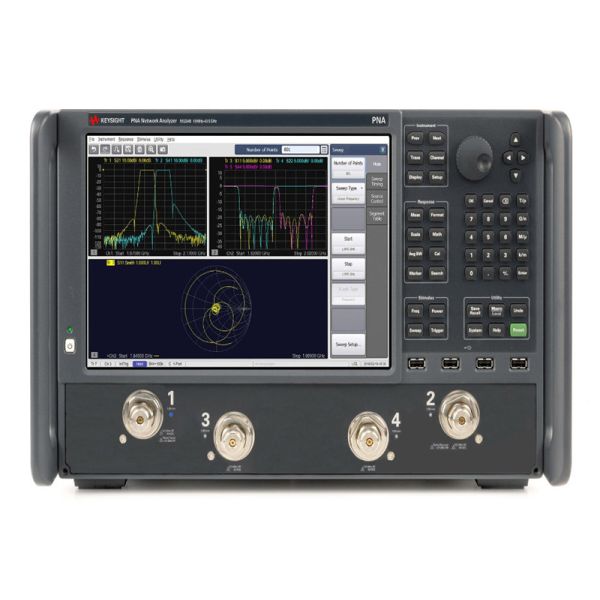

Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Specifications
Brand Name :
Keysight
Model Number :
E5224B
Certification :
ISO17025
Place of Origin :
Malaysia
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Frequency range :
9 kHz to 43.5GHz
VNA Type :
Benchtop
Ports :
4 ports test set
Condition :
New
Description
Configurable Test Set And Reference Mixer Switch Option 201 For The N5224B Vector Network Analyzer
Keysight (Agilent) N5224B Network Analyzers PNA Microwave Network Analyzer, 900 Hz/10 MHz to 43.5 GHz
Description of N5224B
Key Features and Functions
  • Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
  • Measure S-parameters with the smallest uncertainty and highest stability
  • Efficiently characterize active components with applications that simplify setups
  • Meet your specific budget and measurement needs by customizing to just the right level of performance
  • Accelerate insight into component behavior using a multi-touch display and intuitive user interface
Maximum Frequency 43.5 GHz
Dynamic Range 127 dB
Number of Built-In Ports 2 or 4 ports
Harmonics -60 dBc
Network Analyzer Series PNA High Performance
Instrument Type Vector Network Analyzer
Available Options
Option Code Description
020 Add IF inputs
021 Add pulse modulator to internal 1st source
022 Add pulse modulator to internal 2nd source
1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
1CM Rack mount kit for installation without handles
1CP Rack mount kit for installation with handles
200 2 port, base hardware configuration
201 2 port with configurable test set, reference mixer switch
205 2-port, configurable test set, ref mixer switch, low frequency extension
210 2-port with metrology configuration
217 2-port with configurable test set, reference mixer switch, source and receiver attenuators
219 2-port, configurable test set, reference mixer switch, source and receiver attenuators, bias tees
220 2-port with configurable test set, reference mixer switch, source and receiver attenuators, low frequency extension
400 4-port with second source
401 4-port with second source, configurable test set, reference mixer switch
405 4-port with second source, configurable test set, reference mixer switch, low frequency extension
410 4-port with second source, metrology configuration
417 4-port, 2nd source, configurable test set, reference mixer switch, source and receiver attenuators
419 4-port, 2nd source, configurable test set, ref mixer switch, source/receiver attenuators, bias tees
420 4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, low frequency extension
A6J ANSI Z540-1-1994 Calibration
N1966A Pulse I/O Adapter
N6171A MATLAB Software
S93007B Automatic fixture removal
S93010B Time Domain Analysis
S93011B Enhanced Time Domain Analysis with TDR
S93015B Real-time S-Parameter and Power Measurement Uncertainty
S93025B Basic Pulsed-RF Measurements
S93026B Advanced Pulsed-RF Measurements
S93029B Noise Figure Measurements with Vector Correction
S93080B Frequency Offset Measurements
S93082B Scalar Mixer/Converter Measurements
S93083B Vector and Scalar Mixer/Converter Measurements
S93084B Embedded LO Capability
S93086B Gain-Compression Measurements
S93087B Intermodulation Distortion Measurements
S93088B Source Phase Control
S93089B Differential and I/Q Device Measurements
S930900B Spectrum Analysis, up to 8.5 GHz
S930901B Spectrum Analysis, up to 13.5 GHz
S930902B Spectrum Analysis, up to 26.5 GHz
S930904B Spectrum Analysis, up to 43.5 GHz
S930909B Spectrum Analysis, up to 90 GHz
S93093B Spectrum Analysis, up to 110 GHz
S93094B Spectrum Analysis, beyond 110 GHz
S93118B Fast CW Measurements
S93460B True-Mode Stimulus
S93551B Network Analyzer N-Port Calibrated Measurements
S93898B Built-in Performance Test Software
UK6 Commercial calibration certificate with test data
WIN10 W 10 Operating System
Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set Keysight N5224B PNA Microwave Network Analyzer with 43.5 GHz Frequency Range and Configurable 4 Ports Test Set
Our Service
  • One-stop service from manufacture to shipping
  • Your inquiry related to our products or prices will be replied in 24 hours
  • Well-trained and experienced staff to answer all your enquiries in fluent English
  • Distributor support is offered for your unique design and some of our current models
  • Protection of your sales area, ideas of design and all your private information
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
T/T payment before shipment.
How can I ask any other questions?
You can contact us online or leave us messages below.
