Specifications
Brand Name :
R&S
Model Number :
HFH2-Z2E
Place of Origin :
Germany
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
Active Loop Antenna
Dimension :
596 mm × 90 mm × 822 mm
Frequency :
8.3 kHz to 30 MHz
Condition :
New
Functions :
Tested, in Full Working Conditions
Warrenty :
1 Year
Description

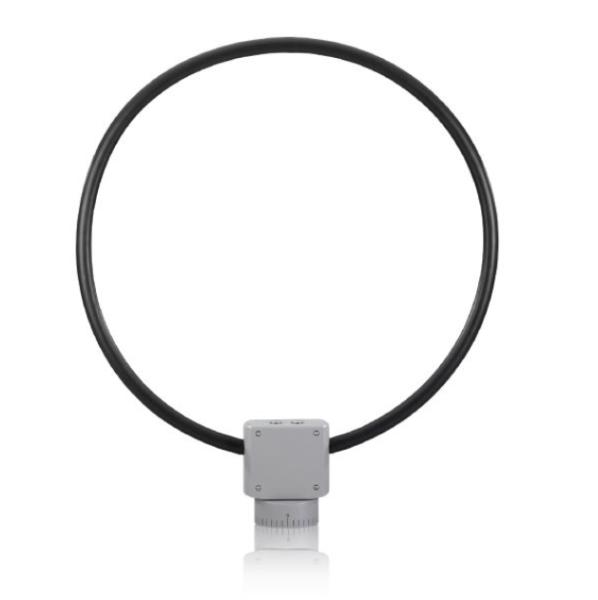

HFH2-Z2E Active Loop Antenna Rohde And Schwarz 8.3 kHz to 30 MHz
Product Overview

The R&S®HFH2-Z2E active loop antenna measures the magnetic field strength in the LF, MF and HF range. It can be used for EMI measurements in line with various standards (i.e. CISPR, MIL, FCC, ANSI, ETSI). Each antenna is individually calibrated. It is characterized by an almost frequency-independent antenna factor and very high sensitivity. In strong field environments, an attenuator can be activated to reduce distortion. An integrated RF detector with a threshold circuit reports overload of the antenna.

Key Features
  • Wide frequency range
  • High sensitivity
  • Wide dynamic range
  • Compact design
  • Integrated overload warning
  • R&S®IN600 bias unit for power supply via coaxial cable available
  • No batteries needed
  • Individual calibration certificate supplied with antenna
  • Virtually constant antenna factor
Technical Specifications
Frequency range 8.3 kHz to 30 MHz
Polarization linear
Nominal impedance 50 Ω
VSWR 8.3 kHz to 20 kHz: < 1.8
> 20 kHz to 30 MHz: < 1.6
Antenna connector N female
Antenna factor - Normal mode 8.3 kHz to 20 kHz: 20 dB (1/m) ± 2 dB
> 20 kHz to 30 MHz: 20 dB (1/m) ± 1.5 dB
Antenna factor - Attenuation mode 8.3 kHz to 20 kHz: 30 dB (1/m) ± 2 dB
> 20 kHz to 30 MHz: 30 dB (1/m) ± 1.5 dB
Lower limit magnetic field strength in normal mode 8.3 kHz to 1.5 MHz: see diagram
> 1.5 MHz to 30 MHz: < -70 dB(µA/m/Hz) (meas.)
Upper limit magnetic field strength Normal mode: 85 dB(µA/m) (typ.)
Attenuation mode: 95 dB(µA/m) (typ.)
Destructive field strength 8.3 kHz to 30 MHz: > 30 V/m
> 30 MHz to 2 GHz: > 10 V/m
MTBF > 250000 h
Power supply (via coaxial cable) 24 V DC -3 V/+1 V (max. 150 mA)
Operating temperature range 5°C to +40°C
Dimensions (W × D × H) approx. 596 mm × 90 mm × 822 mm (24 in × 4 in × 32 in)
Loop diameter approx. 600 mm (24 in)
Weight approx. 3 kg (7 lb)
Ordering Information
Product Type Order No.
Active loop antenna R&S®HFH2-Z2E 4110.2002.02
Recommended Extras
Bias unit R&S®IN600 4094.3004.13
Transport case R&S®HFH2-Z7 4110.2925.02
Tripod R&S®HFH2-Z8 4110.2902.02
3D adapter for X, Y, Z plane measurements on R&S®HFH2-Z8 R&S®HFH2-Z9 4110.2919.02
Height adaptation set R&S®HFH2-Z11 4110.2954.02
