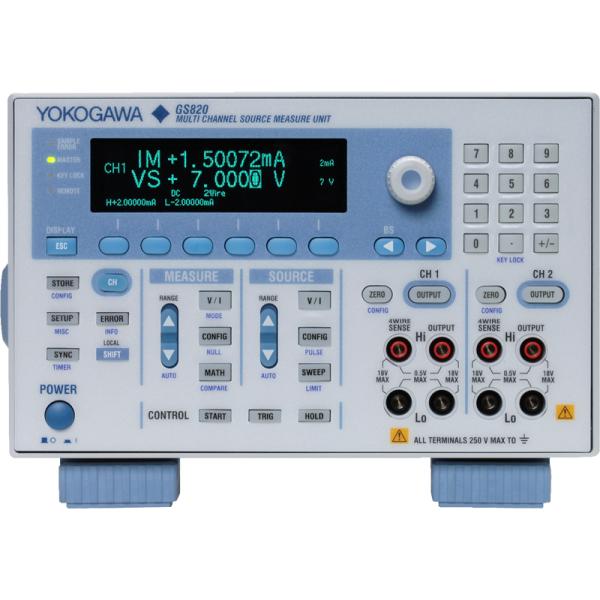

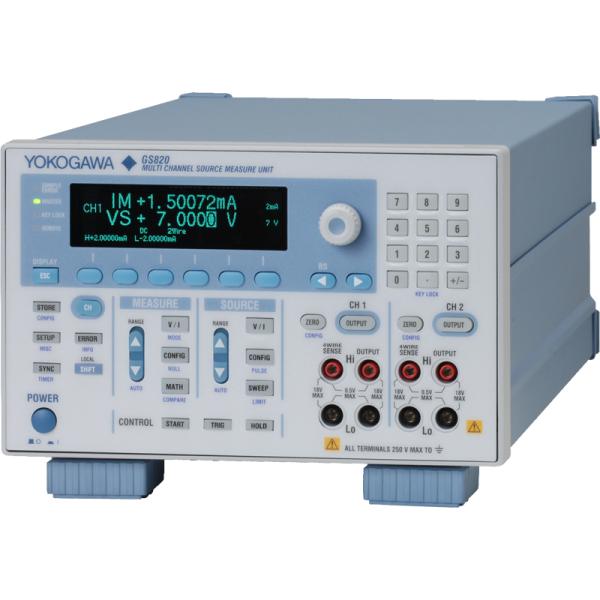

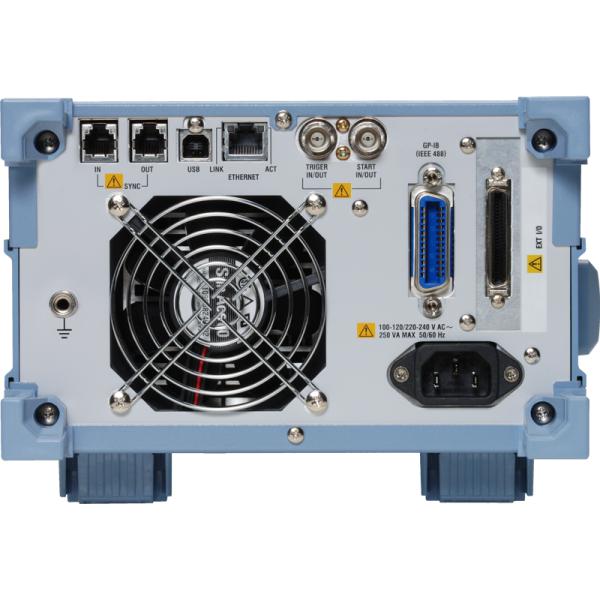

The YOKOGAWA GS820 is a multi-channel source measure unit featuring four-quadrant operation with source operation (current source) and sink operation (current sink). Available in ranges up to 7 V and 3.2 A or 18 V and 1.2 A, it offers output and measurement resolutions of 5.5 digits.

• Isolated 2-channel source and measurement function
• Source and measurement ranges:
  • 18V model: 7 V and 3.2 A or 18 V and 1.2 A
  • 50V model: 20 V and 1.2 A or 50 V and 0.6 A
• 1 pA resolution at extremely small current range 200 nA
• Generate arbitrary waveforms consisting of up to 100,000 points at 100 μs intervals
• Channel expansion through master-slave synchronization link
• Fast test speeds
• 16-bit digital I/O (model 765602/12)

Four-quadrant operation with source and sink capabilities. Two models available with 5.5-digit output and measurement resolutions.

• Voltage ranges: 200 mV, 2 V, 7 V, and 18 V
• Maximum output current: ±3.2 A (at output voltage of ±7 V or less) ±1.2 A (at output voltage of ±18 V or less)
• Current ranges: 200 nA, 2 µA, 20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 1 A, and 3 A
• Maximum output voltage: ±18 V (at output current of ±1.2 A or less) ±7 V (at output current of ±3.2 A or less)

• Voltage ranges: 200 mV, 2 V, 20 V, and 50 V
• Maximum output current: ±1.2 A (at output voltage of ±20 V or less) ±0.6 A (at output voltage of ±50 V or less)
• Current ranges: 200 nA, 2 µA, 20 µA, 200 µA, 2 mA, 20 mA, 200 mA, 0.5 A, and 1 A
• Maximum output voltage: ±50 V (at output current of ±0.6 A or less) ±20 V (at output current of ±1.2 A or less)

The GS820 features two isolated analog channels, each containing a constant voltage source (VS), constant current source (IS), voltmeter (VM), and ammeter (IM).

Source and Measurement Functions:

• Voltage source and current measurement (VS & IM)
• Current source and voltage measurement (IS & VM)
• Voltage source (VS)
• Current source (IS)
• Voltmeter (VM)
• Ammeter (IM)
• Resistance meter (IS&VM)

Functions can be selected for each channel to form arbitrary combinations. Supports voltage sensing of two-wire or four-wire systems by switching between local sense and remote sense.

The combination of source and measurement functions across two channels enables testing of various DUTs.

The GS820 performs generation and measurement using internal timer or external trigger input. Upon trigger signal reception, generation starts after source delay time elapses, followed by measurement after measure delay time elapses over given integration time.

Measurement integration time: 0.001 PLC to 25 PLC*². Auto zero measurement function measures internal zero reference after measurement and performs real-time offset correction.

Generation and measurement trigger sources can be set separately. Two types of constant period timers and external signal input available for generation trigger source. Source change point and sweep end point can be used for measurement trigger source.

Source trigger and measurement trigger can be set separately for each channel, accommodating various connection conditions and timing combinations. Auxiliary trigger available via external signal or program event.

Various trigger sources enable asynchronous source and measurement execution. Separate timers allow multiple measurements within a source cycle.

Voltage/current generation block operates in DC or pulse generation mode. Preset operation modes include continuous output, linear sweep, and log sweep. Output level can be changed at minimum 100-μs intervals*¹ in each sweep mode.

Up to 100,000 points with simultaneous sweeping of control parameters at minimum program cycles.

Enables editing of test sequences suitable for auto testing on production lines. Program file parameters include source value, measured value, high/low limits for comparison, comparison result, control bit output, etc. CSV format allows editing via popular spreadsheet applications.

Fast operation for production line tests with improved takt time. Reference data for measured test speeds provided.

Expansion up to 10 channels using master-slave operation. Multiple GS820s can be connected as multi-channel source measure unit. Master unit distributes source data to slaves and collects/merges measured data from all units. Complete synchronization achieved via exclusive trigger signal line.

Generates zero voltage or current while controlling current/voltage limiter to limit load current. Stops applying voltage or supplying current to load in zero generation state, allowing DUT disconnection with output relay ON. Eliminates chattering problems and contact life issues of output relay, reducing ON/OFF output time.
